CLGR® Simplex Wire Rope Grips Zinc Plated also known as simplex wire rope clip/grips.
Our Simplex Wire Rope Grips are manufactured from drop-forged low carbon steel with electric galvanized finish, providing essential corrosion resistance for general-purpose wire rope termination.
These single-bolt grips create secure loops in applications including temporary fence post wiring, light-duty cargo lashing systems, and warehouse storage rack safety cables where simple loop configurations are required.
The screw-down clamping mechanism ensures firm cable retention in setups such as securing gym equipment safety lines and fastening temporary signage cables.
Available in sizes from 2mm to 10mm to match various cable diameters.
Important usage note: These grips are designed for light-duty applications only - always securely tighten the screw and never use in situations expecting heavy loads or overhead stress.
| Brand | CLGR® |
| Origin | China |
| Material | Low Carbon Steel |
| Processing | Drop Forged |
| Finish | Electric Galvanised |
| Size | 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |

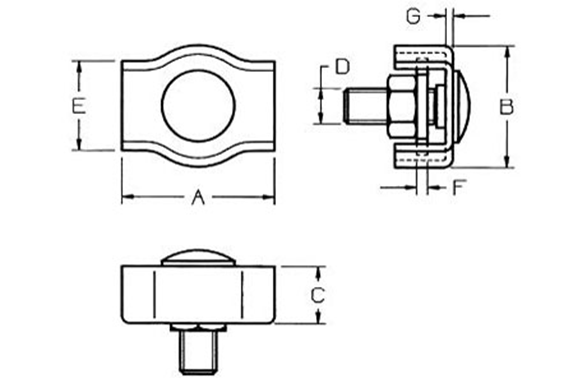

Part No. | Size | A | B | C | D | E | F | G | Unit Weight |
mm | Kg | ||||||||
CRWRCS02 | 2 | 17,5 | 12 | 5 | M 4 | 7,5 | 1 | 1 | 0,002 |
CRWRCS03 | 3 | 17,5 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 0,002 |
CRWRCS04 | 4 | 22 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 0,004 |
CRWRCS05 | 5 | 24 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 0,004 |
CRWRCS06 | 6 | 30 | 23 | 10 | M 6 | 17 | 1,5 | 1,5 | 0,005 |
CRWRCS08 | 8 | 36 | 30 | 14 | M 8 | 22 | 2 | 2 | 0,050 |
CRWRCS10 | 10 | 42 | 34 | 16 | M 10 | 25 | 3 | 2 | 0,090 |
China CLGR Supply has a large size selection of wire rope clips in forged steel, malleable, and stainless steel materials.
