CLGR® Duplex Wire Rope Clips/Grips Zinc plated also known as Duplex grips and Double Bolt Cable Clamp.
Our Duplex Wire Rope Clips are manufactured from low carbon steel with electric galvanized finish, featuring a dual-bolt design that provides secure fastening for 7×19 construction wire ropes in non-lifting applications.
These clips are ideal for creating reliable loop terminals in electrical cable support systems, theater rigging installations, and marine safety line configurations where flexible wire rope is required.
The double-screw mechanism ensures even pressure distribution when tensioning communication cables along utility poles or securing temporary safety nets in construction sites.
Available in sizes from 2mm to 10mm to match various cable diameters. Important safety note: These clips are designed for static tensioning applications only with an approximate failure load of 80% of the cable's breaking load - never use for overhead lifting or with 1x19/7x7 construction cables. Always tighten both screws securely using proper tools.
| Brand | CLGR® |
| Origin | China |
| Material | Low Carbon Steel |
| Processing | Stamp |
| Finish | Electric Galvanized |
| Size | 2mm,3mm,4mm,5mm,6mm,8mm,10mm |

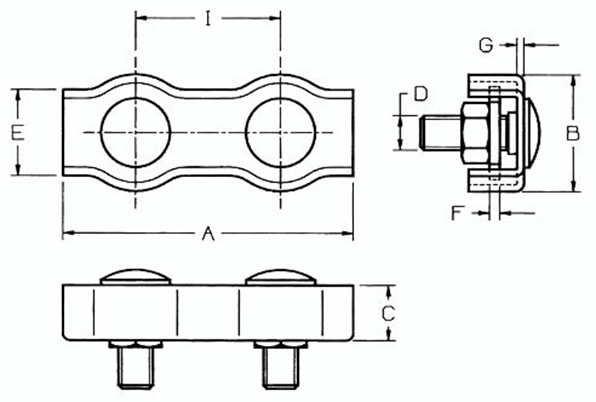

Part No. | Size | A | B | C | D | E | F | G | I | Unit/Weight |
mm | Kg | |||||||||
CRWRCD02 | 2 | 38 | 12 | 5 | M 4 | 7,5 | 1 | 1,5 | 20,5 | 0,010 |
CRWRCD03 | 3 | 38 | 15 | 6,5 | M 4 | 10 | 1,5 | 1,5 | 20,5 | 0,015 |
CRWRCD04 | 4 | 47 | 18 | 7,5 | M 5 | 12 | 1,5 | 1,5 | 25 | 0,025 |
CRWRCD05 | 5 | 51 | 20 | 8,5 | M 5 | 14 | 1,5 | 1,5 | 27 | 0,035 |
CRWRCD06 | 6 | 63 | 23 | 10 | M 6 | 17 | 1,5 | 2 | 33 | 0,050 |
CRWRCD08 | 8 | 76 | 30 | 14 | M 8 | 22 | 2 | 2 | 42 | 0,100 |
CRWRCD10 | 10 | 88 | 34 | 16 | M 10 | 25 | 3 | 46 | 0,180 | |
