CLGR® Malleable Wire Rope Clip LG450 US Standard

Name: CLGR® Malleable Wire Rope Clip LG450 US Standard
Brand: CLGR®

CLGR® Malleable Wire Rope Clip LG450 US Standard also known as wire rope clamp malleable, US Type Wire Rope Clip and US Type Zinc Plated Malleable Wire Rope Clip for fencing and handrails.

Our US Standard Malleable Wire Rope Clip complies with Federal Specification FF-C-450 D Type 1 Class 2, manufactured from superior mild steel with zinc plated finish and 5:1 safety factor.

These light-duty clips are specifically designed for non-critical applications including chain-link fence termination systems, staircase handrail installations, and animal enclosure wire fastening where they provide secure cable connections without sustaining overhead loads.

The malleable cast body with steel U-bolt maintains consistent pressure distribution in permanent setups such as securing greenhouse framework wires and fastening playground safety fencing.

Available in sizes from 1/16" to 1-1/8" with carton or gunny bag packaging options.

Important safety notice: These clips are rated for light duty use only - never use for critical applications, heavy loads, or overhead lifting operations.

Custom packaging and sizes are available upon request.

To Get A Quote >

CLGR® Malleable Wire Rope Clip LG450 US Standard

Overview of Malleable Wire Rope Clip LG450 US Standard

Brand	CLGR®
Origin	China
Technical Notes	According to Federal Specification FF-C-450 D, Type 1, Class 2.
Material	Superior Mild Steel
Processing	Malleable Cast Body, Steel U Bolt
Finish	Zinc Plated
Size	1/16”, 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16” 1/2”, 9/16”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”
Safety Factor	5:1
Packing	Cartons or Gunny bags, then pack on pallets

Specifications of Malleable Wire Rope Clip LG450 US Standard

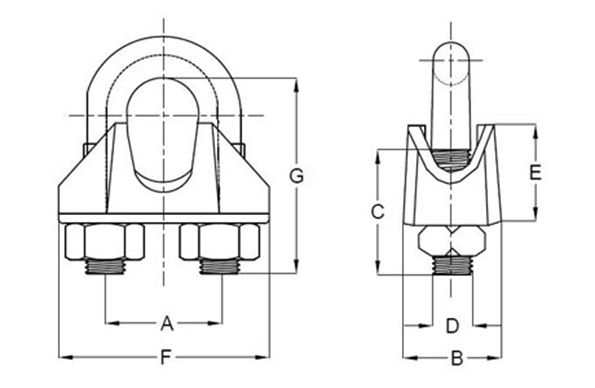

drawing-of-malleable-wire-rope-clip-us-standard

Part No.	Size (in)	Weight Per	Dimensions (in.)
Part No.	Size (in)	Piece in LBS.	A	B	C	D	E	F	G
CRWRCUS101	1/16	0.03	1/16	0.45	0.45	0.15	0.38	0.69	0.65
CRWRCUS102	1/8	0.04	1/8	0.55	0.55	0.18	0.42	0.87	0.79
CRWRCUS103	3/16	0.063	3/16	0.59	0.63	0.25	0.51	1.02	0.94
CRWRCUS104	1/4	0.13	1/4	0.73	0.79	0.31	0.59	1.25	1.24
CRWRCUS105	5/16	0.15	5/16	0.79	0.87	0.31	0.63	1.38	1.34
CRWRCUS106	3/8	0.21	3/8	0.87	1.06	0.38	0.87	1.59	1.65
CRWRCUS107	7/16	0.37	7/16	0.91	1.18	0.44	0.87	1.7	1.69
CRWRCUS108	1/2	0.37	1/2	1.02	1.38	0.44	0.92	1.93	2.12
CRWRCUS109	9/16	0.59	9/16	1.04	1.58	0.5	1.06	2.07	2.15
CRWRCUS110	5/8	0.59	5/8	1.12	1.58	0.5	1.1	2.26	2.33
CRWRCUS111	3/4	0.84	3/4	1.26	1.65	0.56	1.33	2.4	2.7
CRWRCUS112	7/8	1.25	7/8	1.46	1.81	0.63	1.5	2.8	3.08
CRWRCUS113	1	1.66	1	1.65	2.2	0.63	1.69	3.05	3.44
CRWRCUS114	1-1/8	2.43	1-1/8	2.06	2.75	0.75	2.19	3.38	4

CAUTION: MALLEABLE ROPE CLIPS ARE NOT DESIGNED FOR OVERHEAD LIFTING.

China CLGR Supply has a large size selection of wire rope clips in forged steel, malleable, and stainless steel materials.
