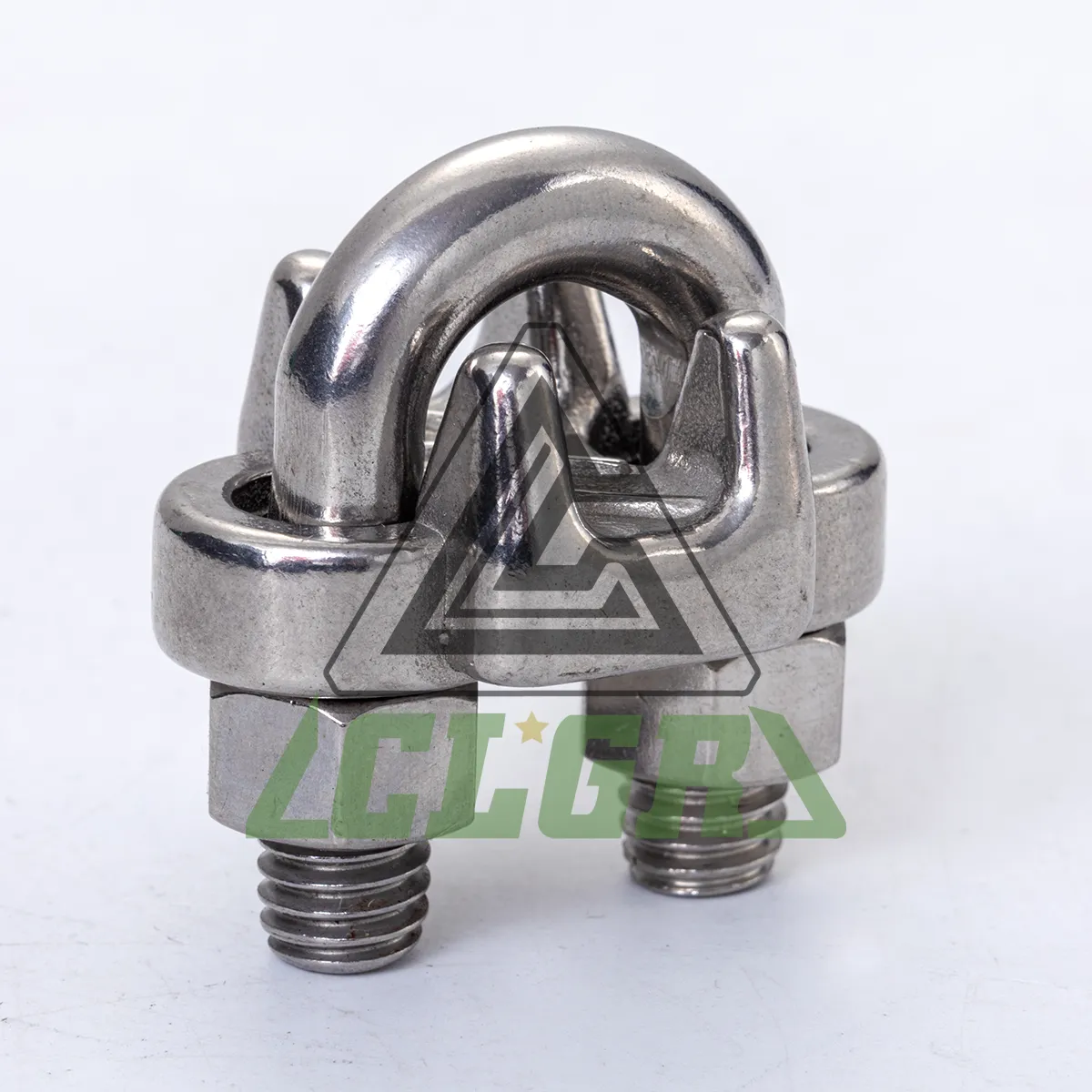

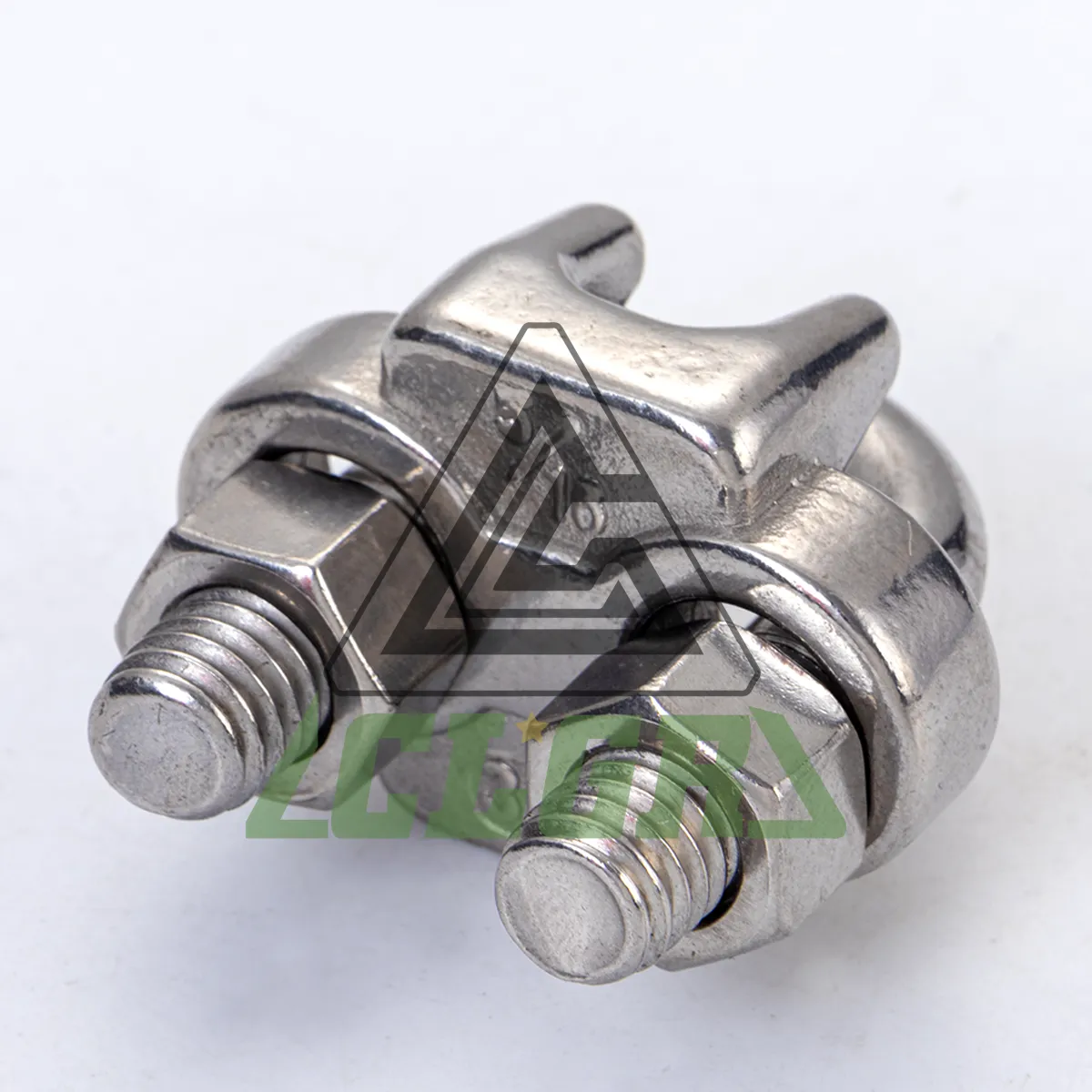

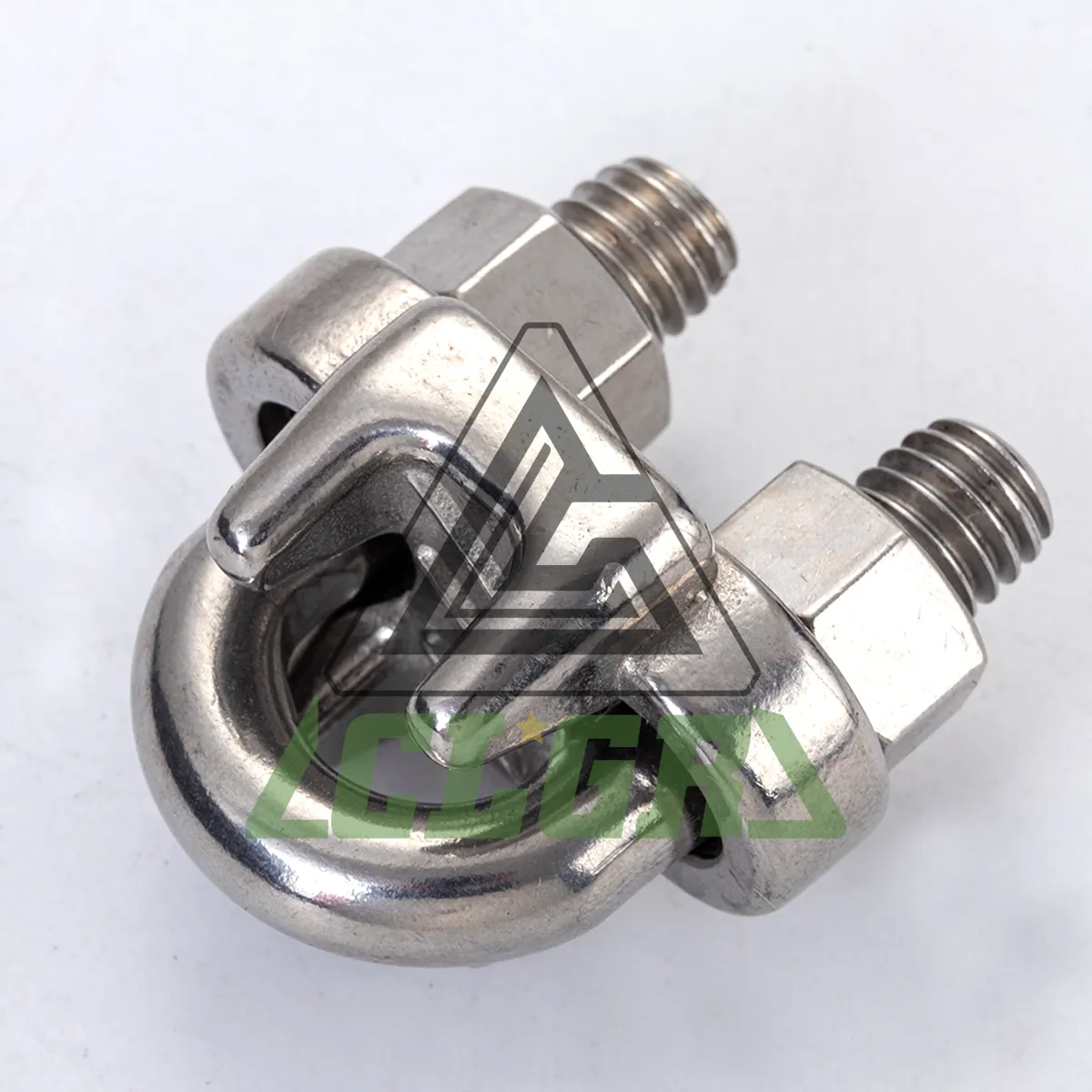

CLGR® Drop Forged Wire Rope Clips G450 Stainless Steel US Type

Name: CLGR® Drop Forged Wire Rope Clips G450 Stainless Steel US Type
Brand: CLGR®

CLGR® Drop Forged Wire Rope Clips G450 Stainless Steel US Type also known as wire rope clamp and steel cable clamps, G450 Wire Rope Clip, Stainless Steel Rope Clip and US Type Wire Rope Clamp.

Our Drop Forged Wire Rope Clips G450 Stainless Steel US Type are manufactured from 304/316 stainless steel with high-polish finish, meeting US Federal Spec FF-C-450D Type 1 standards for critical overhead lifting applications.

These clips provide corrosion-resistant fastening solutions for marine environments such as yacht rigging systems and offshore platform safety lines, along with food processing plant cable installations where sanitation is essential.

The drop-forged construction ensures reliable performance under full load conditions in pharmaceutical cleanroom applications and chemical plant lifting scenarios.

Available in sizes from 1/8" to 1-1/2" to accommodate various cable diameters.

Proper installation requires placing the saddle on the live end of the rope with recommended torque specifications.

All components undergo rigorous testing to guarantee performance in corrosive environments and safety-critical lifting operations.

To Get A Quote >

clgr drop forged wire rope clips g450 stainless steel us type

drop forged wire rope clips g450 stainless steel us type china manufacturer

clgr drop forged wire rope clips g450 stainless steel us type china wholesale

drop forged wire rope clips g450 stainless steel us type china supplier

 

Overview of Drop Forged Wire Rope Clips G450 Stainless Steel US Type

Brand	CLGR®
Origin	China
Technical Notes	Drop forged steel cable clamps Meets the US Federal Specification FF-C-450
Material	Stainless Steel 304/316
Processing	Drop Forged
Finish	Highly Polishing
Size	1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8″ , 3/4”, 7/8”, 1″ , 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2” Wire Rope Clips

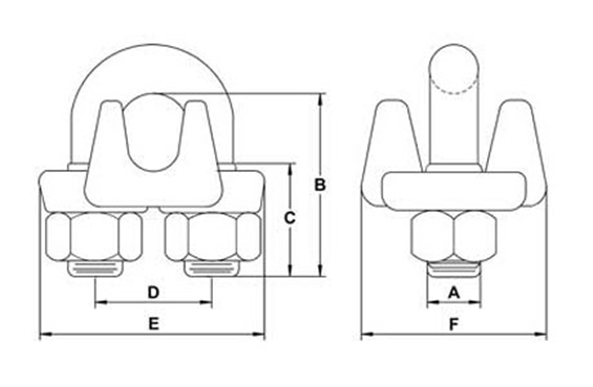

Specifications of Drop Forged Wire Rope Clips G450 Stainless Steel US Type

Part No.	SIZE	DEMENSION						WEIGHT /100PCS
		DEMENSION						WEIGHT /100PCS
		A	B	C	D	E	F	(KGS)
CR-SS-DF-G450-1/8	1/8”	7/32	18	11	12	23	20	3
CR-SS-DF-G450-3/16	3/16″	1/4”	24	14	15	29	23	5
CR-SS-DF-G450-1/4	1/4”	5/16”	26	15	19	36	29	8.5
CR-SS-DF-G450-5/16	5/16”	3/8”	35	19	22	43	33	13
CR-SS-DF-G450-3/8	3/8”	7/16”	38	19	25	49	41	20
CR-SS-DF-G450-7/16	7/16”	1/2”	47	25	30	57	46	32
CR-SS-DF-G450-1/2	1/2”	9/16”	47	25	30	58	48	32
CR-SS-DF-G450-9/16	9/16”	9/16”	57	32	33	63	52	44
CR-SS-DF-G450-5/8	5/8″	9/16”	60	32	33	63	52	44
CR-SS-DF-G450-3/4	3/4”	5/8”	70	36	38	72	56	63
CR-SS-DF-G450-7/8	7/8”	3/4”	79	41	44	80	62	93
CR-SS-DF-G450-1	1″	3/4”	89	45	48	88	66	110
CR-SS-DF-G450-1-1/8	1-1/8”	3/4”	98	51	51	91	71	120
CR-SS-DF-G450-1-1/4	1-1/4”	7/8”	108	56	59	105	80	170
CR-SS-DF-G450-1-3/8	1-3/8”	7/8”	118	56	60	106	80	200
CR-SS-DF-G450-1-1/2	1-1/2”	7/8”	125	60	66	113	87	220
