CLGR® Drop Forged Wire Rope Clips US.Fed.Spec.

Name: CLGR® Drop Forged Wire Rope Clips US.Fed.Spec.
Brand: CLGR®

CLGR® Drop Forged Wire Rope Clips US.Fed.Spec. also known as wire rope clamp US type, US Type Wire Rope Clamp and ASME B30.26 Certified Drop Forged Hot Dip Galvanized Wire Rope Clip for overhead lifting.

Our drop forged wire rope clips meet or exceed ASME B30.26 and US Fed. Spec. FF-C-450 Type 1, Class 1 standards, manufactured from superior mild steel with electric-galvanized, hot-dip galvanized or powder coated finishes for maximum corrosion resistance.

These heavy-duty clips are certified for critical overhead lifting applications including port crane wire rope terminations, construction hoist cable assemblies, and theater rigging systems where failure is not an option.

The drop forged construction ensures reliable performance under extreme loads in scenarios such as suspending temporary work platforms and securing industrial equipment during lifting operations.

Available in sizes from 1/8" to 2-1/4" to accommodate various cable diameters, these clips provide the required fatigue life and impact resistance for demanding industrial use.

All products come with material traceability and meet strict proof load testing requirements for certified lifting applications.

Custom sizes and special coatings including Dacromet are available upon request.

To Get A Quote >

clgr drop forged wire rope clips u.s. fed. spec. china manufacturer supplier factory

Overview of Drop Forged Wire Rope Clips US.Fed.Spec.

Brand	CLGR®
Origin	China
Technical Notes	Meets or exceeds all requirements of ASME B30.26, FF-C-450 Type 1, Class 1
Material	Superior Mild steel
Processing	Drop Forged
Finish	Electric-galvanized, Hot dip galvanized, Powder Coated or Dacroment
Size	1/8”, 3/16′, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”,9/16”, 5/8″, 3/4” 7/8”, 1″, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, 2”, 2-1/4”

Specifications of Drop Forged Wire Rope Clips US.Fed.Spec.

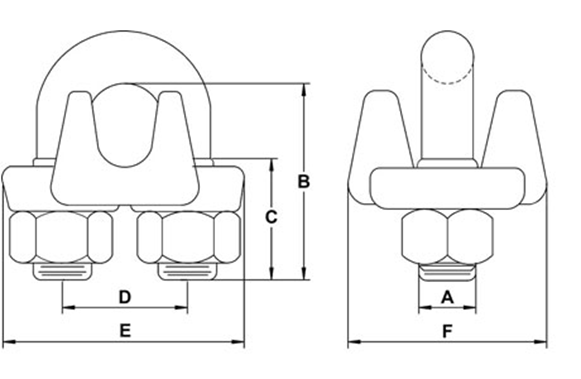

drawing-of-drop-forged-wire-rope-clips-us.fed.spec.

Part No.	SIZE	DEMENSION						WEIGHT
		DEMENSION						/100PCS
		A	B	C	D	E	F	(KGS)
CRWRCUH01	1/8”	7/32	18	11	12	23	20	3
CRWRCUH02	3/16′	1/4”	24	14	15	29	23	5
CRWRCUH03	1/4”	5/16”	26	15	19	36	29	8.5
CRWRCUH04	5/16”	3/8”	35	19	22	43	33	13
CRWRCUH05	3/8”	7/16”	38	19	25	49	41	20
CRWRCUH06	7/16”	1/2”	47	25	30	57	46	32
CRWRCUH07	1/2”	9/16”	47	25	30	58	48	32
CRWRCUH08	9/16”	9/16”	57	32	33	63	52	44
CRWRCUH09	5/8″	9/16”	60	32	33	63	52	44
CRWRCUH10	3/4”	5/8”	70	36	38	72	56	63
CRWRCUH11	7/8”	3/4”	79	41	44	80	62	93
CRWRCUH12	1″	3/4”	89	45	48	88	66	110
CRWRCUH13	1-1/8”	3/4”	98	51	51	91	71	120
CRWRCUH14	1-1/4”	7/8”	108	56	59	105	80	170
CRWRCUH15	1-3/8”	7/8”	118	56	60	106	80	200
CRWRCUH16	1-1/2”	7/8”	125	60	66	113	87	220
CRWRCUH17	1-5/8”	1	135	66	70	120	92	330
CRWRCUH18	1-3/4”	1-1/8”	146	70	78	134	97	420
CRWRCUH19	2”	1-1/4”	161	75	85	147	111	610
CRWRCUH20	2-1/4”	1-1/4”						660
