CLGR® Deka Wire Rope Clips Galvanized Malleable Cast Iron

Name: CLGR® Deka Wire Rope Clips Galvanized Malleable Cast Iron
Brand: CLGR®

CLGR® Deka Wire Rope Clips Galvanized Malleable Cast Iron also known as Short Jaw Galvanized Malleable Wire Rope Clips, Short Jaw Rope Clip and Malleable Wire Rope Clamp.

Our Deka Type Wire Rope Clips are manufactured from malleable cast iron with electric galvanized finish, featuring a unique double-body design that provides larger contact surface for superior gripping force compared to standard U-bolt clips.

These clips are ideal for non-critical fastening applications including chain-link fence termination systems, industrial staircase handrail installations, and agricultural fencing wire connections where reliable clamping is required. The reinforced short jaw design ensures secure cable retention in scenarios such as securing warehouse storage rack safety wires and fastening temporary safety barrier cables.

Available in sizes from 6mm to 25mm to accommodate various cable diameters.

Important usage note: These malleable iron clips are designed for light-duty static applications only - never use for overhead lifting or critical load-bearing scenarios.

Custom sizes are available according to specific project requirements.

To Get A Quote >

deka wire rope clips galvanized malleable cast iron

deka wire rope clips galvanized malleable cast iron china supplier

deka wire rope clips galvanized malleable cast iron china wholesale

deka wire rope clips galvanized malleable cast iron china manufacturer

deka wire rope clips galvanized malleable cast iron china

 

Overview of Deka Wire Rope Clips Galvanized Malleable Cast Iron

Brand	CLGR®
Origin	China
Technical Notes	Conform To Deka Type
Material	Malleable Iron
Processing	Cast
Finish	Electric Galvanized
Size	6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm

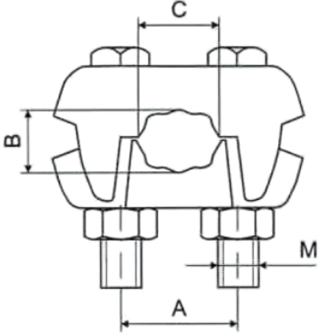

Specifications of Deka Wire Rope Clips Galvanized Malleable Cast Iron

Part No.	Size	B	C	A	M
Part No.	(mm)	B	C	A	M
CR-DEKA-WRC-06	6	17	5	6	M6
CR-DEKA-WRC-08	8	20	7	8	M6
CR-DEKA-WRC-10	10	20	9	10	M8
CR-DEKA-WRC-12	12	21.5	10	12	M10
CR-DEKA-WRC-16	16	25.5	13	15	M12
CR-DEKA-WRC-20	20	34	17	20	M14
CR-DEKA-WRC-25	25	43	20	25	M16
