CLGR® Fist Grip Wire Rope Clips Hot Dip Galvanized

Name: CLGR® Fist Grip Wire Rope Clips Hot Dip Galvanized
Brand: CLGR®

CLGR® Fist Grip Wire Rope Clips Hot Dip Galvanized also known as Twin Base Saddle Clamp, Fist Grip Clip and Wire Rope Fist Grips.

Our Fist Grip Wire Rope Clips comply with US Federal Spec FF-C-450 Type III and ASME B30.26 standards, featuring a unique double saddle design that prevents incorrect installation and reduces rope damage compared to traditional U-bolt clips.

These hot-dip galvanized clips are essential for creating secure wire rope terminations in critical lifting applications such as port crane cable assemblies, theater rigging systems, and construction hoist installations where safety is paramount. The forged steel construction allows full 360-degree wrench rotation for fast installation while requiring fewer clips per splice than conventional designs.

Available in sizes from 3/16" to 1-1/2" to accommodate various cable diameters.

Important: All installations must be performed by trained personnel and clips must be re-torqued after initial load testing to maintain specified tension.

Custom sizes and certifications are available for specialized rigging requirements.

To Get A Quote >

clgr fist grip wire rope clips hot dip galvanized china wholesale

Overview of Fist Grip Wire Rope Clips Hot Dip Galvanized

Brand	CLGR®
Origin	China
Technical Notes	Fist grip Meets Federal Specification FF-C-450 Type III, Class 1
Processing	Drop Forged
Finish	Electric Galvanized / Hot Dip Galvanized
Size	3/16″-1/4″, 5/16”, 3/8”, 7/16″-1/2″, 9/16″-5/8″, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8″-1-1/2″

Specifications of Fist Grip Wire Rope Clips Hot Dip Galvanized

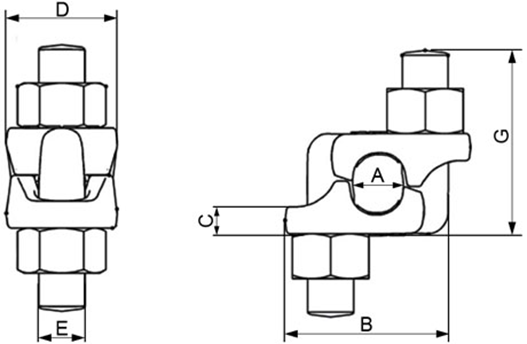

Part No.	Rope Size	Dimensions (mm)
Part No.	(inch)	A	B	C	D	E	G
CRWRCF01	3/16-1/4	8	32	6	24	3/8-16UNC	35
CRWRCF02	5/16”	8	35	7	28	3/8-16UNC	40
CRWRCF03	3/8”	11	41	7.5	28	7/16-14UNC	46
CRWRCF04	7/16-1/2	14	48	8.5	32	1/2-13UNC	56
CRWRCF05	9/16-5/8	17	58	9.5	38	5/8-11UNC	68.5
CRWRCF06	3/4”	21	68	11	46	3/4-10UNC	85
CRWRCF07	7/8”	24	75.5	12	54	3/4-10UNC	88
CRWRCF08	1”	27	78	14	57	3/4-10UNC	98
CRWRCF09	1-1/8”	30	88	15	60	7/8-9UNC	106
CRWRCF10	1-1/4”	32	90	16	63.5	7/8-9UNC	110
CRWRCF11	1-3/8 -1-1/2”	38	105	18	76	7/8-9UNC	141

China CLGR Supply has a large size selection of wire rope clips in forged steel, malleable, and stainless steel materials.

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
