CLGR® Open Spelter Wire Rope Socket G-416 US Type

Name: CLGR® Open Spelter Wire Rope Socket G-416 US Type
Brand: CLGR®

CLGR® Open Spelter Wire Rope Socket G-416 US Type also known as Open Spelter Socket and G-416 Socket.

Our G-416 Open Spelter Socket complies with US Federal Spec RR-S-550E Type A standards, manufactured from superior forged steel (through 38mm) or cast alloy steel (40mm-100mm) with zinc plated or hot-dip galvanized finishes.

This open-design socket achieves 100% efficiency rope terminations for permanent installations where visual inspection is critical, including suspension bridge cable terminations, permanent mine shaft guide rope connections, and stadium roof cable net anchorages.

The zinc-poured termination preserves 100% of the wire rope's original strength, making it essential for critical applications such as ski lift cable ends and permanent marine dock moorings.

Available in sizes from 1/4" to 4" (6mm-100mm) to accommodate various cable diameters.

All sockets undergo rigorous testing to ensure compliance with federal specifications for critical infrastructure projects.

Important safety note: These sockets are designed for permanent tensioning applications with regular inspection access - never use for overhead lifting operations.

To Get A Quote >

clgr open spelter wire rope socket g 416 us type china supplier

Overview of Open Spelter Wire Rope Socket G-416 US Type

Brand	CLGR®
Origin	China
Technical Notes	Open spelter socket To US FED. SPEC. RR-S-550E, Type A
Material	Superior forged Steel/Superior alloy steel
Finish	Zinc plated / Hot dipped galvanized
Size	1/4”, 5/16”~3/8”, 7/16”~1/2”, 9/16”~5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”~1-3/8”, 1-1/2”1-5/8”, 1-3/4”~1-7/8”, 2”~2-1/8” 2-1/4”~2-3/8”, 2-1/2”~2-5/8”, 2-3/4”~2-7/8”, 3”~3-1/8”, 3-1/4”~3-3/8”, 3-1/2”~3-5/8”, 3-3/4”~4” 6mm, 8mm~9mm, 11mm~12mm, 14mm~16mm, 19mm,22mm, 25mm,28mm, 31.5mm~35mm, 38mm, 42mm, 45mm~47.5mm 50mm-53mm, 57mm-60mm, 63mm~66mm, 70mm-73mm, 76mm~80mm, 82mm~85mm, 89mm~92mm, 95mm~100mm
Note	Never to be used for overhead lifting

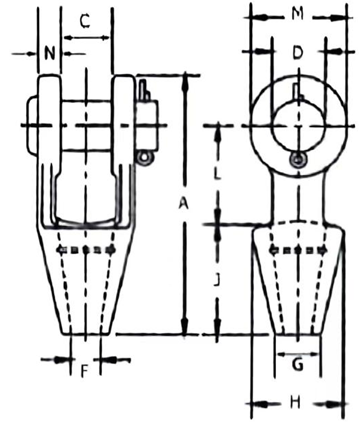

Specifications of Open Spelter Wire Rope Socket G-416 US Type

Part No.	Rope Dia.		A	C	D	F	G	H	J	L	M	N	Weight (kg)
Part No.	(in.)	(mm)	mm										Weight (kg)
CR-OSS-US-6	1/4	6	115.82	23.11	17.53	9.65	11.53	39.62	57.15	39.62	33.27	9.14	0.5
CR-OSS-US-8-9	5/16~3/8	8~9	122.94	20.57	50.57	12.7	20.57	42.93	57.15	44.45	38.1	11.19	0.59
CR-OSS-US-11-12	7/16~1/2	11~12	141.22	25.4	25.4	14.22	23.88	47.75	63.5	50.8	47.75	12.7	1.02
CR-OSS-US-14-16	9/16~5/8	14~16	171.5	21.75	30.23	17.53	28.7	57.15	76.2	63.5	57.15	14.22	1.8
CR-OSS-US-19	3/4	19	201.68	38.1	35.05	20.57	31.75	66.53	88.9	76.2	66.55	15.75	2.64
CR-OSS-US-22	7/8	22	234.95	44.45	41.4	23.88	38.1	82.55	101.6	88.8	79.5	20.32	4.47
CR-OSS-US-25	1	25	268.22	50.8	50.8	28.7	44.46	95.25	114.3	101.6	95.25	22.35	7.03
CR-OSS-US-28	1-1/8	28	299.97	57.15	57.15	31.75	50.8	104.65	127	117.35	104.65	25.4	9.75
CR-OSS-US-31.5-35	1-1/4~1-3/8	31.5~35	335.03	63.5	63.5	38.1	57.15	120.65	139.7	127	120.65	28.7	14.06
CR-OSS-US-38	1-1/2	38	384.05	76.2	69.85	41.4	69.85	133.35	152.4	152.4	136.65	30.23	21.43
CR-OSS-US-42	1-5/8	42	412.75	76.2	76.2	44.45	76.2	139.7	165.1	165.1	146.05	33.27	24.44
CR-OSS-US-45-47.5	1-3/4~1-7/8	45~47.5	463.55	88.9	88.9	50.8	79.5	162.05	190.5	177.8	165.1	39.62	37.2
CR-OSS-US-50-53	2~2-1/8	50-53	546.1	101.6	95.25	57.15	95.25	187.45	215.9	288.6	177.8	45.97	56.7
CR-OSS-US-57-60	2-1/4~2-3/8	57-60	596.9	114.3	107.95	63.5	101.6	209.55	228.6	254	196.85	54.1	75.75
CR-OSS-US-63-66	2-1/2~2-5/8	63~66	647.7	127	120.65	73.15	114.3	234.95	247.65	273.05	215.9	60.45	114.3
CR-OSS-US-70-73	2-3/4~2-7/8	70-73	692.15	133.35	127	79.25	123.95	266.7	279.4	279.4	228.6	73.15	142.88
CR-OSS-US-76-80	3~3-1/8	76~80	736.6	146.05	133.35	85.85	133.15	282.45	304.8	285.75	241.3	76.2	172.38
CR-OSS-US-82-85	3-1/4~3-3/8	82~85	784.35	158.75	139.7	91.95	146.05	301.75	330.4	295.45	254	79.25	196.86
CR-OSS-US-89-92	3-1/2~3-5/8	89~92	844.5	171.45	152.4	98.55	165.1	314.45	355.6	317.5	273.05	82.55	255.38
CR-OSS-US-95-100	3-3/4~4	95-100	920.5	190.5	177.8	107.95	184.15	345.95	381	342.9	317.5	88.9	355.16
