CLGR® Wide Body Sling Shackle Safety Pin Forged Alloy Steel

Name: CLGR® Wide Body Sling Shackle Safety Pin Forged Alloy Steel
Brand: CLGR®

CLGR® Wide Body Sling Shackle Safety Pin Forged Alloy Steel also known as Forged Alloy Wide Body Shackle, Shackle Sling Saver Wide Body, Sling Protector Shackle and Hot dip galvanized wide body sling shackle with safety pin for 500 ton lifting.

Engineered for mega lifting applications, this wide-body sling shackle is forged from superior alloy steel, quenched and tempered, and magnaflux crack-tested to ensure ultimate reliability under extreme loads.

With a 4:1 safety factor and wide throat design, it accommodates synthetic slings and webbing with minimal wear and optimal load distribution.

The shackle features a secure safety pin mechanism and is hot-dip galvanized for maximum corrosion resistance in harsh offshore, mining, and heavy construction environments.

Available in working load limits from 7T to 500T to meet the demands of the most challenging lifting and rigging operations. Custom specifications are available upon request.

To Get A Quote >

Overview of Wide Body Sling Shackle Safety Pin Forged Alloy Steel

Brand	CLGR®
Origin	China
Safety Factor	4: 1
Material	Superior Forged Alloy Steel – Quenched and Tempered
Processing	Forged & 100% magnaflux crack detection
Finish	Body: Hot Dipped Galvanized Pin: Hot Dipped Galvanized/Powder Coating
Size	WLL 7T, 12.5T, 18T, 30T, 40T, 55T, 75T, 125T, 150T, 200T, 250T, 300T, 400T, 500T

Specifications of Wide Body Sling Shackle Safety Pin Forged Alloy Steel

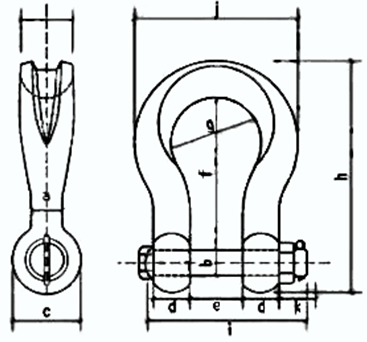

drawing-clgr-of-wide-body-sling-shackle-safety-pin-forged-alloy-steel

Part No.	WLL	Diameter body	Diameter pin	Diameter eye	width eye	width inside	length inside	width bow	length	length bolt	width	thickness nut	bearing surface	width each	Tolerance
	WLL	Diameter body	Diameter pin	Diameter eye	width eye	width inside	length inside	width bow	length	length bolt	width	thickness nut	bearing surface	width each
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	l mm	kg
	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	k mm	l mm	kg
CRWBS-BP-7	7	22	22	46	19	32	96	64	153	115	110	19	41	2	±5%
CRWBS-BP-12.5	12.5	28	28	61	25	44	121	82	197	151	146	24	54	4	±5%
CRWBS-BP-18	18	35	35	69	30	54	148	102	239	175	180	29	64	7	±5%
CRWBS-BP-30	30	40	42	90	35	69	165	126	279	211	200	34	79	13	±5%
CRWBS-BP-40	40	55	51	109	45	84	199	140	331	252	235	38	97	21	±5%
CRWBS-BP-55	55	60	57	115	55	90	240	160	389	299	270	45	100	30	±5%
CRWBS-BP-75	75	68	70	125	54	110	290	185	473	317	317	40	120	45	±5%
CRWBS-BP-125	125	85	80	154	85	137	366	220	583	413	390	40	150	84	±5%
CRWBS-BP-150	150	94	95	179	89	147	391	253	645	445	434	50	170	117	±5%
CRWBS-BP-200	200	110	105	199	100	158	481	280	759	480	482	50	205	179	±5%
CR-WBS-BP-250	250	126	120	227	110	179	542	300	859	535	530	60	240	260	±5%
CRWBS-BP-300	300	135	134	245	122	195	601	350	947	590	620	70	265	350	±5%
CRWBS-BP-400	400	160	160	293	145	231	576	370	985	675	690	80	320	580	±5%
CRWBS-BP-500	500	170	180	328	160	263	681	450	1131	748	790	90	339	780	±5%
