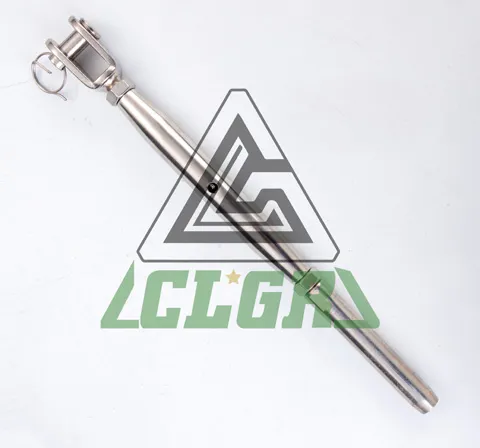

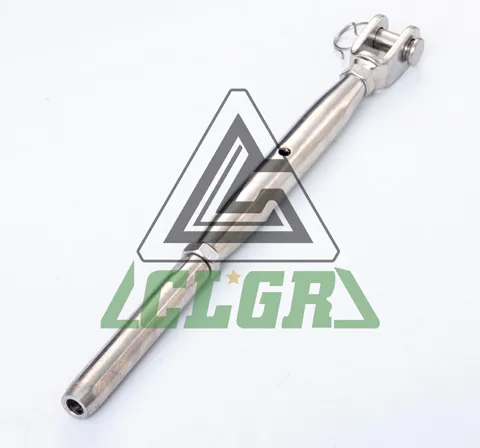

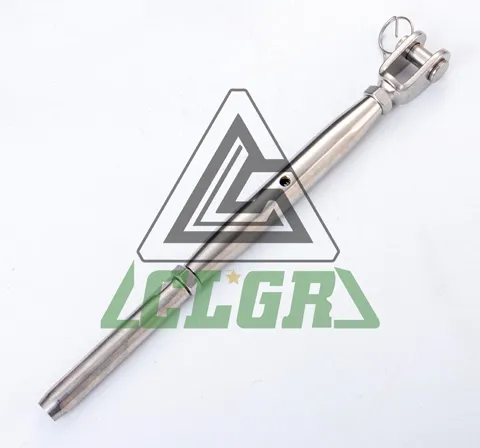

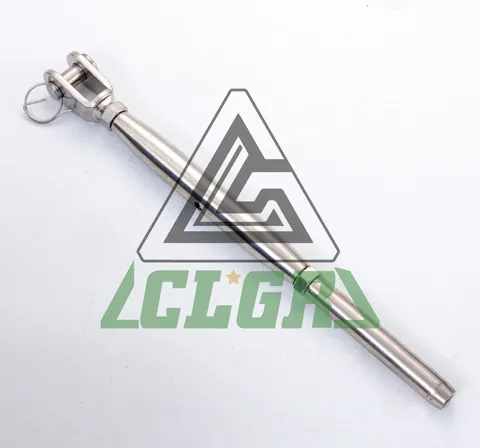

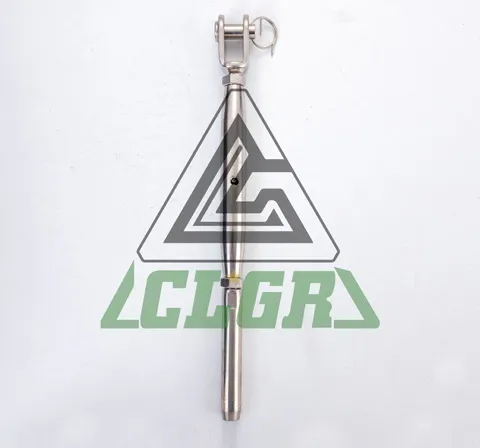

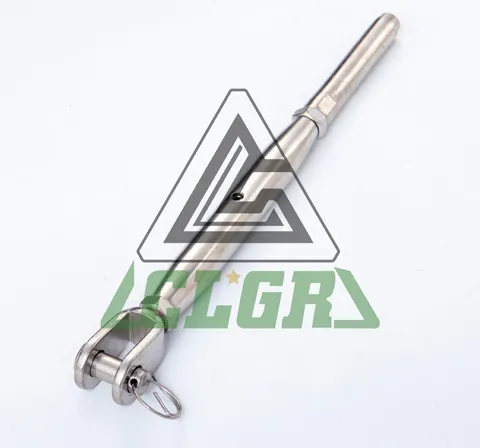

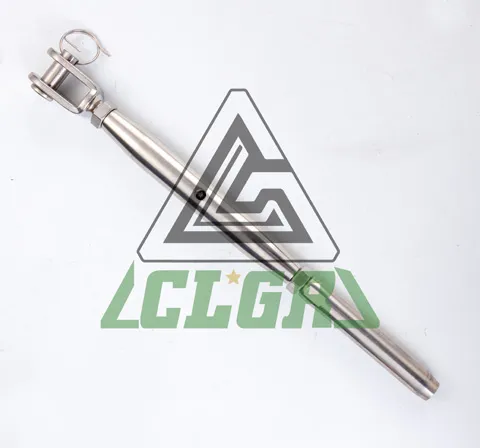

CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud

Name: CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud
Brand: CLGR®

CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud, also known as Closed Body Turnbuckles Swage & Fork - Stainless Steel, Metric Fork to Stud Turnbuckle, rigging screws, tensioners, bottle screws or adjusters.

This stainless steel pipe body turnbuckle is made of rustproof stainless steel (material AISI 316). Stainless steel rigging screw body with fork (and pin) at one end, swage stud for crimping onto stainless steel wire rope at the other end. Metric threaded end fittings allow for perfect tensioning every time. Normally used with lock nuts.

Please email us if you need product advice, have any questions or looking to buy a large quantity or different variation.

To Get A Quote >

6 CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud

CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud

 

Overview of CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud

Brand	CLGR®
Size	M4, M5, M6, M8, M10, M12, M14, M16, M20, M22, M24, M27, M30, M36
Material	Stainless Steel AISI 316
Processing	Body: Machining Jaw: Stamping / Machining / Welding Swage Stud: Machining / Stamping
Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Rigging Screw Jaw & Swage Stud

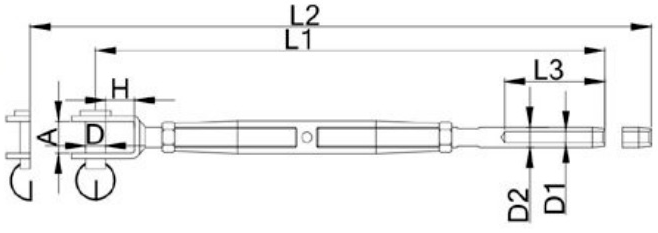

drawing-stainless-steel-rigging-screw-jaw-swage-stud

Part No.	Thread Size	Wire	A	D	H	D1	D2	L3	L1	L2	KG/100	B.L.KG.
Part No.	Thread Size	mm									KG/100	B.L.KG.
CRSSRSJS0402	M4	2	5.5	4	8	2.2	4.8	24	125	150	3.3	500
CRSSRSJS0502	M5	2	6.5	5	10	2.2	5.5	32	155	215	5	800
CRSSRSJS0525	M5	2.5	6.5	5	10	2.7	5.5	32	155	215	5	800
CRSSRSJS0532	M5	3.2	6.5	5	10	3.5	6.35	39	160	220	4.6	800
CRSSRSJS0603	M6	3	7.5	6	10	3.3	6.35	39	175	245	8	1250
CRSSRSJS0632	M6	3.2	7.5	6	10	3.5	6.35	39	175	245	8	1250
CRSSRSJS0604	M6	4	7.5	6	10	4.3	7.5	45	185	255	8.5	1250
CRSSRSJS0804	M8	4	11	8	11	4.3	7.5	45	200	275	14	1300
CRSSRSJS0805	M8	5	11	8	11	5.3	9	52	205	280	15	2350
CRSSRSJS1005	M10	5	12	9	14	5.3	9	52	230	320	25.5	2350
CRSSRSJS1006	M10	6	12	9	14	6.4	12.6	64	245	335	29.5	3500
CRSSRSJS1206	M12	6	14	12	20	6.4	12.6	64	285	400	49	5100
CRSSRSJS1208	M12	8	14	12	20	8.4	16	80	305	420	54.5	5100
CRSSRSJS1407	M14	7	15	12	22	7.4	14.2	70	315	435	58	5900
CRSSRSJS1608	M16	8	17	16	26	8.4	16	80	360	500	108	8000
CRSSRSJS1610	M16	10	17	16	26	10.5	18	90	370	510	112	8000
CRSSRSJS2010	M20	10	20	19	30	10.5	18	90	410	560	172	13000
CRSSRSJS2012	M20	12	23	19	35	12.6	20	105	430	580	180	13000
CRSSRSJS2214	M22	14	30	22	46.5	14.7	25	140	545	715	452	17000
CRSSRSJS2416	M24	16	30	25	49	16.9	28	160	625	855	662	20000
CRSSRSJS2719	M27	19	34	28	54	20	34.5	200	735	970	752	27000
CRSSRSJS3022	M30	22	40	32	62	23.2	40.5	230	825	1080	948	31000
CRSSRSJS3626	M36	26	44	36	70	27.5	46	280	930	1200	1366	43000
