CLGR® Stainless Steel Turnbuckle Jaw & Jaw - The China Manufacturer Supplier, Factory

Name: CLGR® Stainless Steel Turnbuckle Jaw & Jaw - The China Manufacturer Supplier, Factory
Brand: CLGR®

CLGR® Jaw & Jaw Turnbuckle Stainless Steel, also known as Open Body Wire Rope Rigging Screw, Open Body Turnbuckles - Stainless Steel Fork and Fork.

This Jaw & Jaw Turnbuckle is made from high-quality Type 304/316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial use. The turnbuckle easily extends and contracts with a simple twist of the internal screw action. Each end is equipped with an open jaw with a removable pin.

Our European-style open-body turnbuckles come in both standard and custom sizes to meet diverse requirements.

To Get A Quote >

3 CLGR® Stainless Steel Turnbuckle Jaw & Jaw

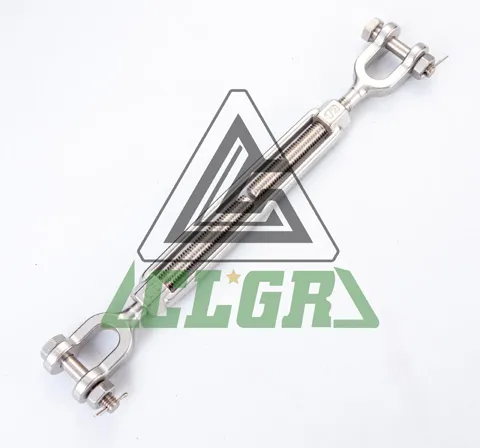

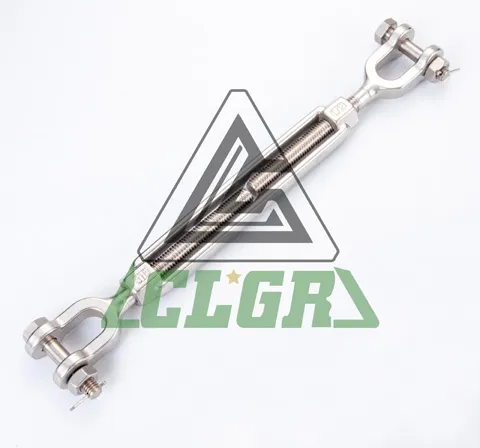

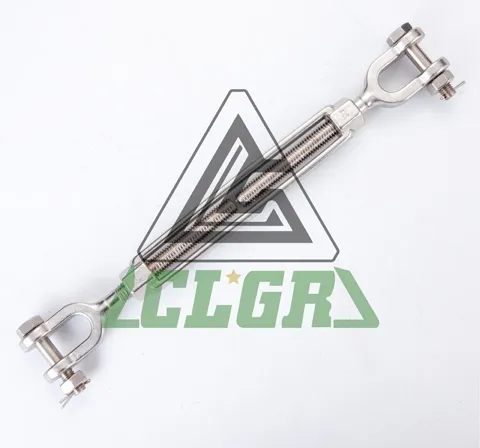

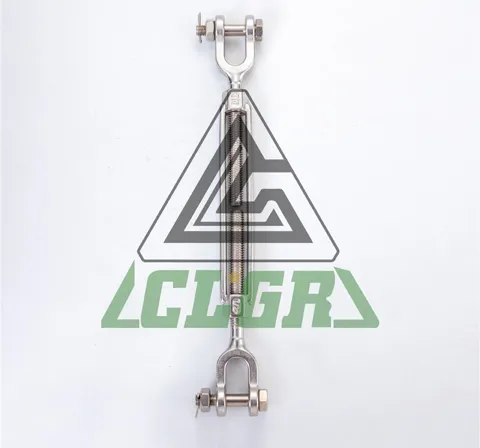

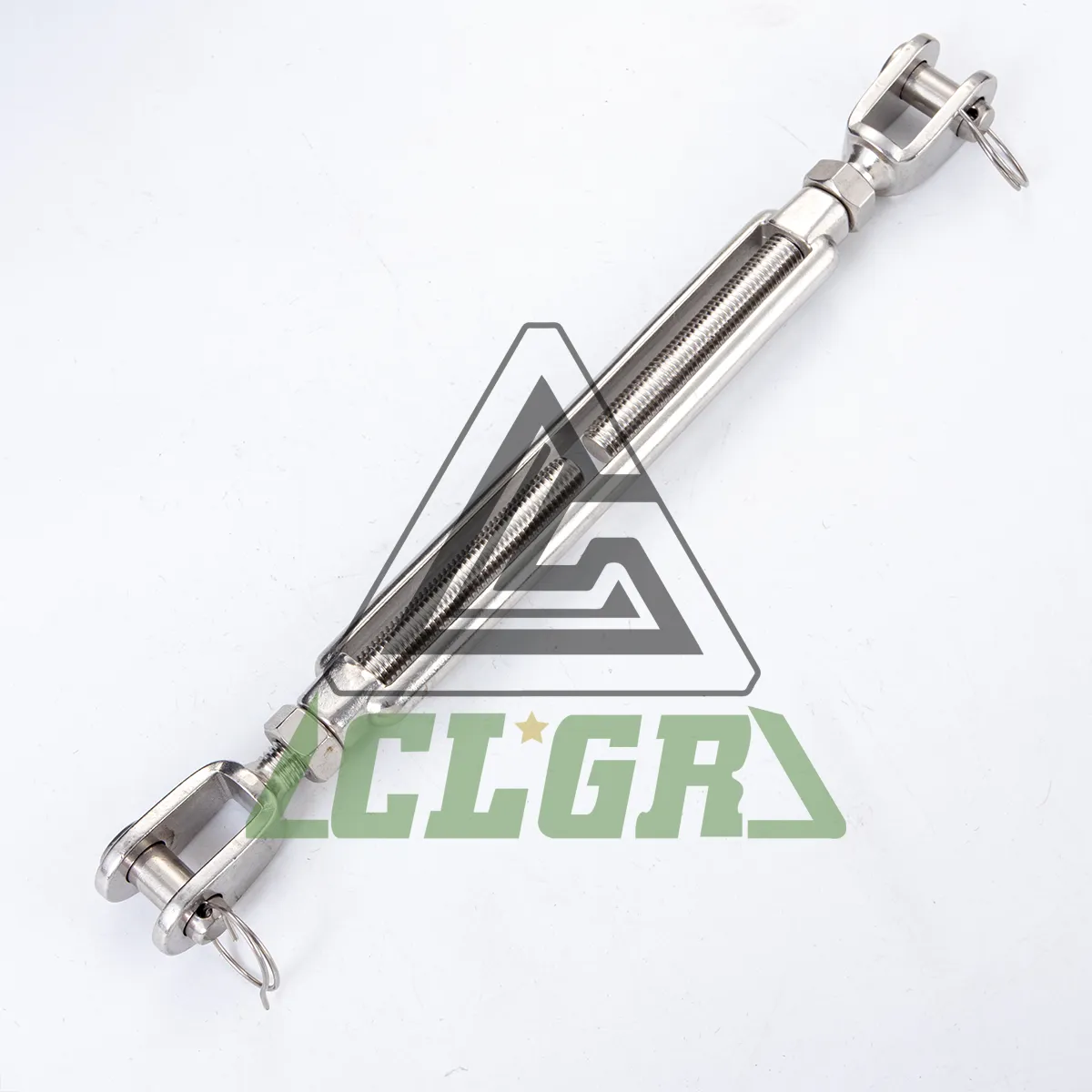

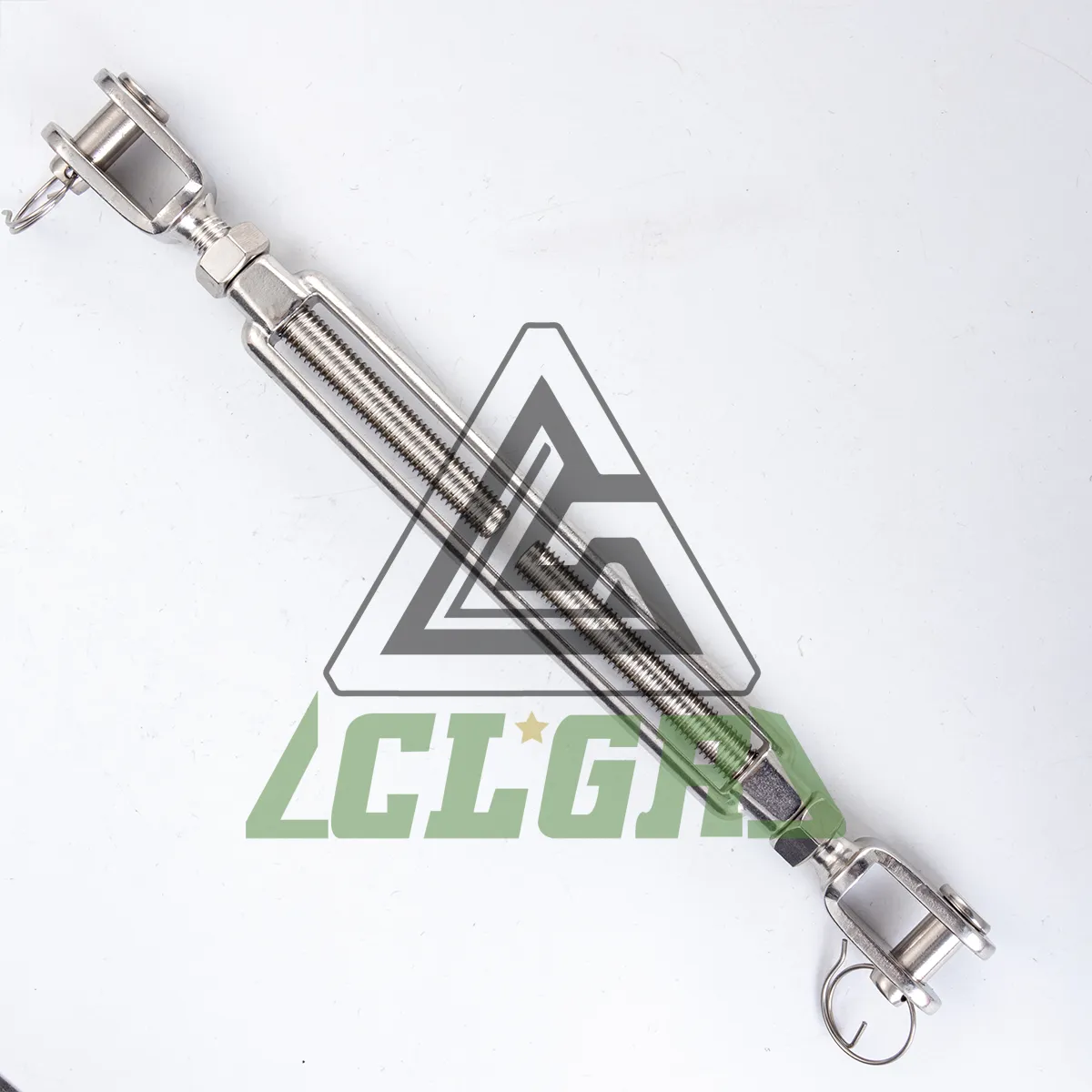

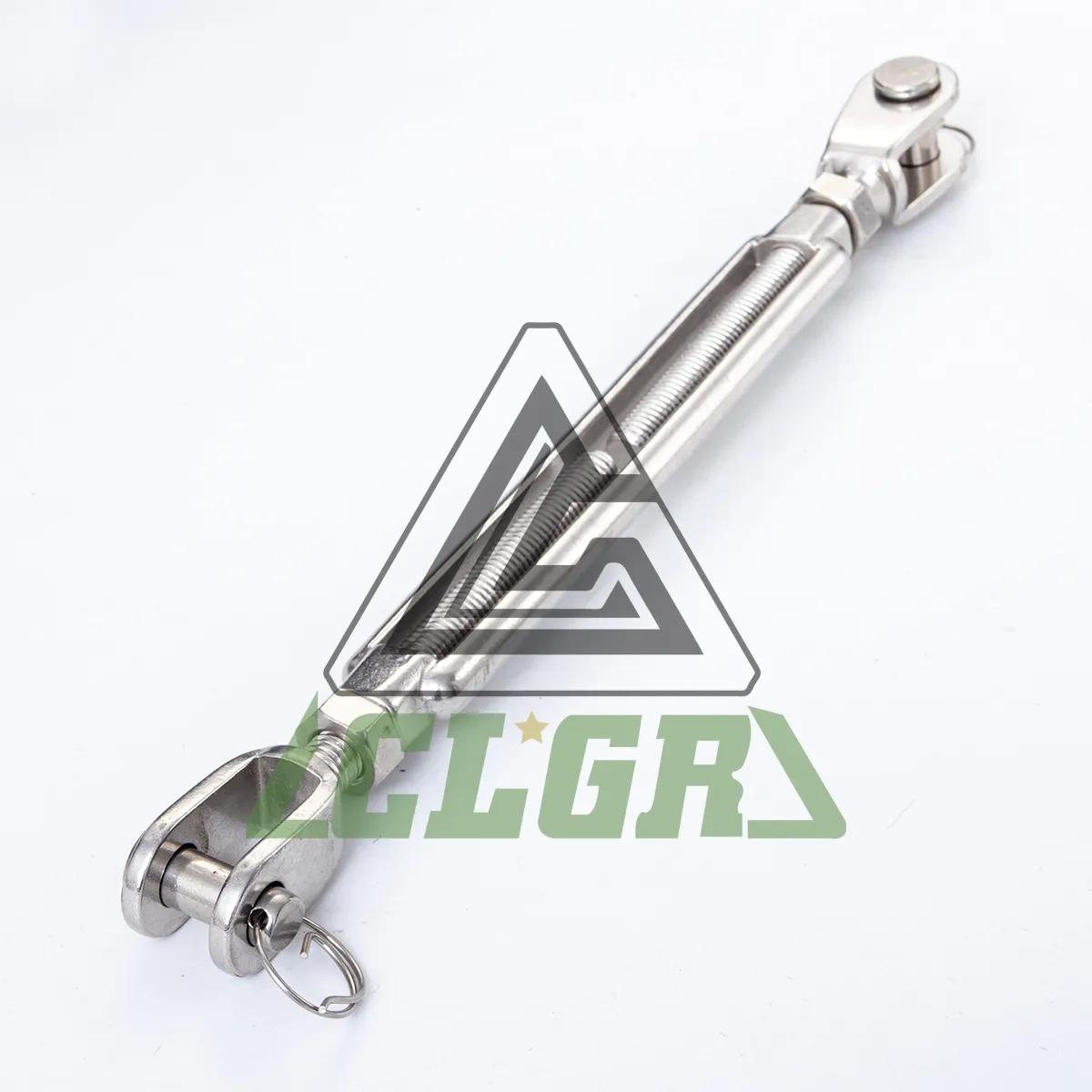

CLGR® Stainless Steel Turnbuckle Jaw & Jaw

 

Overview of CLGR® Stainless Steel Turnbuckle Jaw & Jaw

Brand	CLGR®
Size	M5, M6, M8, M10, M12, M16, M20
Type	Commercial European Type
Material	Stainless Steel 304/316
Processing	Body: Casting/Forged Jaw: Stamping / Weld / Machining
Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Turnbuckle Jaw & Jaw

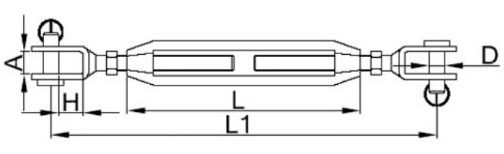

drawing-stainless-steel-turnbuckle-jaw-jaw

Part No.	Size	L(mm)	L1(mm)	A(mm)	D(mm)	H(mm)	WLL(kg)
CR-SS-E-JJ05	M5	70	120	6.5	5	10	188
CR-SS-E-JJ06	M6	90	140	7.5	6	10	350
CR-SS-E-JJ08	M8	120	180	11	8	11	550
CR-SS-E-JJ10	M10	150	220	12	9	14	863
CR-SS-E-JJ12	M12	200	300	14	12	20	1250
CR-SS-E-JJ14	M14	220	325	15	12	22	1600
CR-SS-E-JJ16	M16	250	375	17	16	26	2000
CR-SS-E-JJ20	M20	300	450	20	19	30	2625
