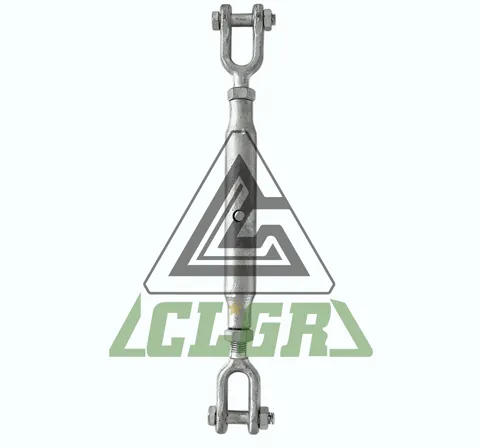

DIN 1478 Turnbuckle Jaw & Jaw Galvanized, also known as pipe/closed body Jaw and jaw turnbuckles DIN 1478 galvanized, conforms to DIN 1478.
Its tubular body protects the threading mechanism from bumps, chips and other elements not related to its functionality. It is also useful when a more aesthetic solution is required. Sight holes are provided in the bodies to verify adequate thread engagement. It can be used to adjust the tension or length of ropes, cables, tie rods, and other tensioning systems. The quality of the finish guarantees good corrosion resistance.
Our range of rigging screw turnbuckle din 1478 is available in standard as well as customized sizes.
If you have any other questions about the DIN 1478 Turnbuckle Jaw & Jaw, please email us.
Brand | CLGR® |
Material | Body: Cold-drawn Seamless Steel Tube (C1020) DIN 1478 turnbuckle Jaw End: C1020 / C1045 |
Processing | Zinc plated, Hot dipped galvanized |
Finish | Electric Galvanized / Hot Dipped Galvanized |
Tips | Not for Lifting. Only suitable for use in tension. |

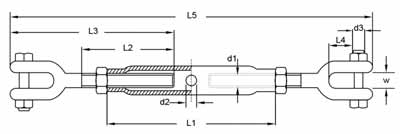

Part No. | Size | L1(mm) | L2(mm) | L3(mm) | Φ1(mm) | Φ2(mm) | Φ3(mm) | A(mm) | M(mm) | S.W.L | U.W. |
kgs | kgs | ||||||||||
CR1478-JJ-06 | M6 | 110 | 88 | 58 | 15 | 11.2 | 6 | 8 | 6 | 230 | 0.15 |
CR1478-JJ-08 | M8 | 110 | 105 | 65 | 17 | 14 | 8 | 10 | 8 | 440 | 0.26 |
CR1478-JJ-10 | M10 | 125 | 125 | 75 | 21 | 16 | 8 | 12 | 8 | 440 | 0.45 |
CR1478-JJ-12 | M12 | 125 | 145 | 85 | 25 | 18 | 10 | 16 | 10 | 600 | 0.66 |
CR1478-JJ-16 | M16 | 170 | 170 | 100 | 30 | 22.8 | 10 | 20 | 12 | 800 | 1.51 |
CR1478-JJ-20 | M20 | 200 | 184 | 115 | 34 | 27 | 12 | 24 | 16 | 1650 | 2.93 |
CR1478-JJ-24 | M24 | 255 | 214 | 130 | 42 | 32 | 12 | 30 | 20 | 2600 | 5 |
CR1478-JJ-30 | M30 | 255 | 251 | 140 | 51 | 38 | 16 | 36 | 24 | 3400 | 9.97 |
CR1478-JJ-36 | M36 | 295 | 300 | 170 | 63.5 | 50 | 16 | 45 | 28 | 4800 | 14.8 |
