CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.

Name: CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.
Brand: CLGR®

CLGR® Turnbuckle Galvanized Eye and Eye U.S. Fed. Spec., also known as Galvanised Rigging Screws- Eye/Eye, Turnbuckle Wire Tensioner Strainer Eye to Eye, Open Body Rope Rigging Screw and Turnbuckle Straining Screw.

Constructed from hot dip galvanized steel, these turnbuckles provide exceptional resistance to rust and corrosion, making them ideal for outdoor and marine environments. The eye-and-eye design ensures secure attachment points, offering versatility.

The closed eye fittings on both ends ensure a solid and reliable connection, making them perfect for setups that require stability and minimal risk of detachment. This design is highly beneficial for scenarios such as architectural projects, securing cables in bridges and railings, and tensioning wire ropes in fencing and trellises. Always use turnbuckles for straight or in-line pulls to maintain safety standards.

To Get A Quote >

7 CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.

CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.

 

Overview of CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.

Brand	CLGR®
Technical Notes	Eye & eye Turnbuckle conform to US Federal Specification
Material	Superior Carbon Steel (1045)
Safety Factor	Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Processing	Drop Forged + Machining + Quenched and Tempered
Finish	Electric Galvanized / Hot Dipped Galvanized
Thread Dia & Take Up(in)	1/4×4, 5/16×4 1/2, 3/8×6, 1/2×6, 1/2×12, 5/8×6, 5/8×12, 3/4×6, 3/4×12, 3/4×18, 7/8×12, 7/8×18
Product	ODM/OEM
Tips	Color Code: Customized according to customers’ requirements

Specifications of CLGR® Galvanized Eye and Eye Turnbuckle U.S. Fed. Spec.

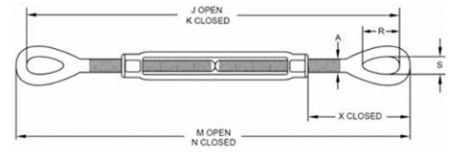

drawing-galvanized-eye-and-eye-turnbuckle-us-fed-spec

Part No.	Thread Dia & Take Up(in)	W.L.L.	U.W	Dimensions(in)
		W.L.L.	U.W	J	K	M	N	R	S	X
		lbs	lbs/pc	Open	Closed	Open	Closed	R	S	Closed
CR-TB-EE-US-01	1/4×4	500	0.29	11.94	7.94	12.38	8.38	0.81	0.34	1.76
CR-TB-EE-US-02	5/16×41/2	800	0.48	13.92	9.42	14.48	9.98	0.95	0.44	2.2
CR-TB-EE-US-03	3/8×6	1200	0.75	17.56	11.56	18.24	12.24	1.13	0.53	2.48
CR-TB-EE-US-04	1/2×6	2200	1.72	19.94	13.94	20.82	14.82	1.41	0.71	3.56
CR-TB-EE-US-05	1/2×12	2200	2.63	32.23	20.23	33.11	21.11	1.41	0.71	3.54
CR-TB-EE-US-06	5/8×6	3500	2.75	21.72	15.72	22.72	16.72	1.8	0.88	4.35
CR-TB-EE-US-07	5/8×12	3500	4.12	34.06	22.06	35.06	23.06	1.8	0.88	4.34
CR-TB-EE-US-08	3/4×6	5200	4.22	23.24	17.24	24.5	18.5	2.09	1	5.12
CR-TB-EE-US-09	3/4×12	5200	6.12	35.64	23.64	36.9	24.9	2.09	1	5.09
CR-TB-EE-US-10	3/4×18	5200	7.83	47.64	29.64	48.9	30.9	2.09	1	5.12
CR-TB-EE-US-11	7/8×12	7200	8.83	36.7	24.7	38.2	26.2	2.38	1.25	5.79
CR-TB-EE-US-12	7/8×18	7200	11.5	49.17	31.17	50.67	32.67	2.38	1.25	5.79
