CLGR® Stainless Steel Turnbuckle Hook & Eye European Type

Name: CLGR® Stainless Steel Turnbuckle Hook & Eye European Type
Brand: CLGR®

CLGR® Stainless Steel Turnbuckle Hook & Eye, also known as Stainless Steel Open Body Turnbuckle Hook and Eye.

The CLGR® Stainless Steel Open Body Turnbuckle Hook & Eye is a robust and reliable choice for adjusting and securing rigging tension. Crafted from premium stainless steel, it ensures excellent resistance to corrosion and wear. Dependable and precise, this turnbuckle is a must-have for any rigging setup.

Our European-style open-body turnbuckles come in both standard and custom sizes to meet diverse requirements.

To Get A Quote >

4 CLGR® Stainless Steel Turnbuckle Hook & Eye

CLGR® Stainless Steel Turnbuckle Hook & Eye

 

Overview of CLGR® Stainless Steel Turnbuckle Hook & Eye European Type

Brand	CLGR®
Size	M4, M5, M6, M8, M10, M12, M16, M20 Hook Eye Turnbuckle
Type	Commercial European Type
Material	Stainless Steel 304/316
Processing	Eye: Welding / Machining Body: Cast / Forge Hook: Stamping / Machining
Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Turnbuckle Hook & Eye European Type

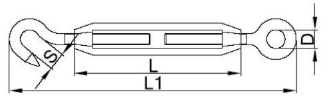

drawing-stainless-steel-turnbuckle-hook-eye

Part No.	Size	L(mm)	L1(mm)	D(mm)	S(mm)	Min. BL (KN)
CRSSTHEEU04	M4	58	100	7	6	1.2
CRSSTHEEU05	M5	70	120	8	7.5	1.9
CRSSTHEEU06	M6	90	150	10	9	2.7
CRSSTHEEU08	M8	120	200	14	12	4.9
CRSSTHEEU10	M10	150	240	16	13	7.6
CRSSTHEEU12	M12	200	310	18	14	11.3
CRSSTHEEU16	M16	250	390	26	18	20.0

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
