CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye

Name: CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye
Brand: CLGR®

CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye, also known as commercial turnbuckle, Eye to Eye Turnbuckle Stainless Steel, Eyes Open Body Straining Screw Rigging Tensioner.

The weld eye on both ends makes these open turnbuckles very strong once installed. Crafted from premium stainless steel, it ensures excellent resistance to corrosion and wear. Dependable and precise, this turnbuckle is a must-have for any rigging setup. It can be used for both lifting and lashing.

Our range of Open Turnbuckle is available in standard as well as customized sizes.

To Get A Quote >

CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye

 

Overview of CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye

Brand	CLGR®
Size	M5, M6, M8, M10, M12, M16, M20
Type	Commercial European Type
Material	Stainless Steel 304/316
Processing	Body: Casting Eye: Welded/Forged
Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Commercial Turnbuckle Eye and Eye

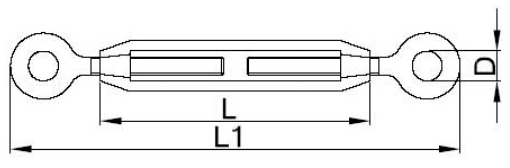

drawing-stainless-steel-commercial-turnbuckle-eye-eye

Part No.	Size	L(mm)	L1(mm)	D(mm)	WLL(kg)
CRSSTEEEU05	M5	70	120	8	170
CRSSTEEEU06	M6	90	150	10	375
CRSSTEEEU08	M8	120	200	14	575
CRSSTEEEU10	M10	150	240	16	775
CRSSTEEEU12	M12	200	310	18	1100
CRSSTEEEU16	M16	250	390	25	2025
CRSSTEEEU20	M20	300	440	30	2750

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
