CLGR® Stainless Steel Carbine Hook with Eyelet and Screw Nut DIN5299 Form E

Name: CLGR® Stainless Steel Carbine Hook with Eyelet and Screw Nut DIN5299 Form E
Brand: CLGR®

CLGR®Stainless Steel Carbine Hook with Eyelet and Screw Nut DIN5299 Form E, also known as Carbine Carabiner Snap Hook with Eyelet and Lock Nut or spring snap hook, Stainless Steel Screw Type Spring Snap Link.

Made of stainless steel AISI304/AISI316, compliant with the international quality standard DIN 5299, it offers durability for indoor or occasional outdoor use.

This Stainless Steel Screw Lock Spring Snap Link features a spring-loaded gate for quick attachment and a screw lock for secure, tamper-proof closure. Its symmetrical design evenly distributes load, while stainless steel construction resists corrosion in marine, outdoor, and industrial environments. Ideal for securing ropes, chains, or cables with reliability.

Our range of stainless steel spring snap hook with screw & eyelet DIN 5299 is available in standard as well as customized sizes.

To Get A Quote >

28 clgr stainless steel carbine hook with eyelet and screw nut din5299 form e_

Overview of CLGR® Stainless Steel Carbine Hook with Eyelet and Screw Nut DIN5299 Form E

Brand	CLGR®
Size	5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm, 13x160mm, 14x180mm stainless steel carabine snap hook
Type	DIN 5299E
Material	Stainless Steel Carabiner Hook
Processing	Stamping / Machining
Finish	Highly Polishing / Electrophoretic coating
Tip	Not for overhead lifting

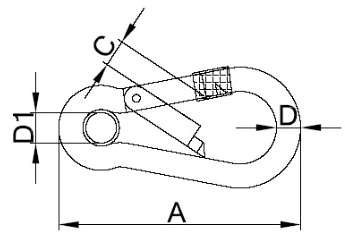

Specifications of CLGR® Stainless Steel Carbine Hook with Eyelet and Screw Nut DIN5299 Form E

Specifications of CLGR® Stainless Steel Carbine Hook with Eyelet and Screw Nut

Part No.	Size (mm)	D (mm)	A (mm)	C (mm)	D1 (mm)	WLL (lbs)
CRSSSH5299ES05	5×50	5	50	7	6.5	100
CRSSSH5299ES06	6×60	6	60	8	7.5	140
CRSSSH5299ES07	7×70	7	70	8	9	200
CRSSSH5299ES08	8×80	8	80	9	10	250
CRSSSH5299ES09	9×90	9	90	10	11	280
CRSSSH5299ES10	10×100	10	100	12	13	400
CRSSSH5299ES11	11×120	11	120	16	15	500
CRSSSH5299ES12	12×140	12	140	19	18	600
CRSSSH5299ES13	13×160	13	160	25	20	700
CRSSSH5299ES14	14×180	14	180	35	20	900

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
