CLGR® G100 Eye Safety Hooks with Recessed Trigger BK, also known as G100 Eye Self-Locking Hooks, forged from alloy steel, hardened and tempered, and are suitable for attaching both chain and wire rope.
The self-locking eye hook features an innovative recessed trigger design that prevents jamming and accidental release while protecting the mechanism from damage.
The G100 eye safety hook has a really useful feature, which comes with a rotational latch stopper. This stopper is super important because it keeps the locking system safe while you're using the hook. In tough lifting jobs where you need a lot of strength and reliability, these built-in safety parts all work together. So, when you use the G100 eye safety hook for heavy-duty lifting, you can count on it to perform well and keep everything secure.
Quality Assured: Click on our specific test videos.
CLGR® | |
Size | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm |
Material | Super Alloy Steel |
Standard | European Type |
Safety Factor | 4: 1 |
Processing | Forged / Heat Treatment |
Surface Finish | Powder Coating |
Packing | Cartons and then on Pallets (customization are available) |

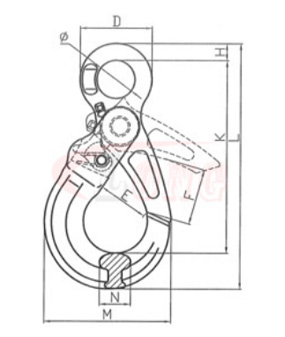

Part No. | Weight | WLL/T | B.L/T | ∅ mm | D mm | WLL/T | F mm | K mm | M mm | N mm | L mm | H mm |
CR10SHBK06 | 0.51 | 1.4 | 5.6 | 21±1 | 43±1 | 28±2 | 31.5±2 | 113±3 | 72±2 | 15±1 | 144±4 | 11±1 |
CR10SHBK08 | 0.9 | 2.5 | 10 | 27±1 | 51±1 | 36±2 | 40±3 | 136±4 | 90±3 | 21.5±1 | 174±4 | 12±1 |
CR10SHBK10 | 1.5 | 4 | 16 | 34.5±2 | 64.5±2 | 44±3 | 46±3 | 170±5 | 108±3 | 25.5±1 | 212±5 | 15±1 |
CR10SHBK13 | 2.97 | 6.7 | 26.8 | 40±2 | 80±2 | 53.6±3 | 64±4 | 209±5 | 137.5±4 | 32±2 | 269±5 | 20±2 |
CR10SHBK16 | 5.92 | 10 | 40 | 50±3 | 104±3 | 60±4 | 73±4 | 256±6 | 170±4 | 38±3 | 333±6 | 27±2 |
CR10SHBK20 | 9.0 | 16 | 64 | 60±3 | 124±3 | 74±4 | 78±5 | 277±6 | 191.5±5 | 50±3 | 368.5±6 | 30±2 |
CR10SHBK22 | 12.55 | 19 | 76 | 70±3 | 139±3 | 80±4 | 104±5 | 319±8 | 205±5 | 52±3 | 417±8 | 32±2 |
CR10SHBK26 | 20.5 | 26.5 | 106 | 74±3 | 153±3 | 99±4 | 107±5 | 370±8 | 251±5 | 60±3 | 489±8 | 38±2 |
