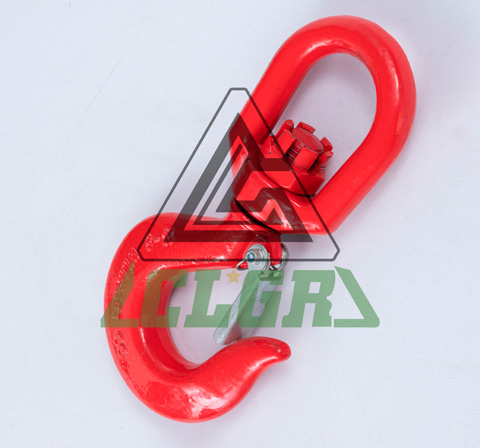

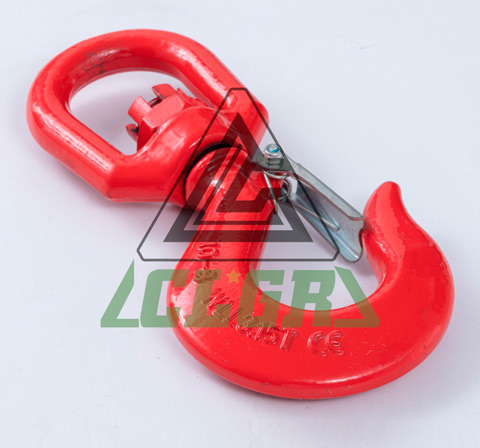

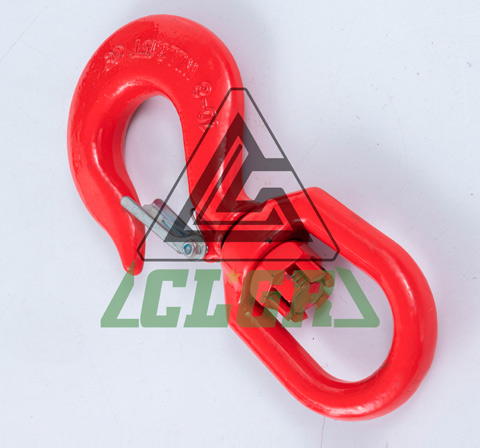

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch

Name: CLGR® Alloy Grade 80 Swivel Safety Hook with Latch
Brand: CLGR®

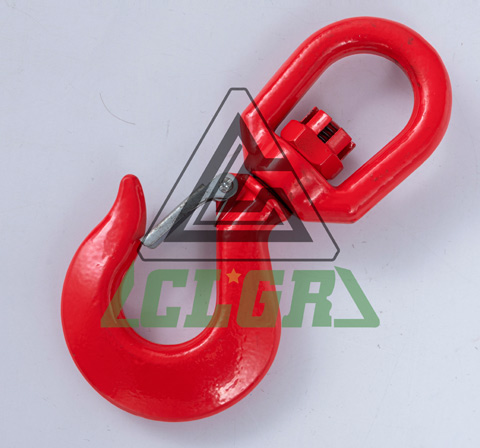

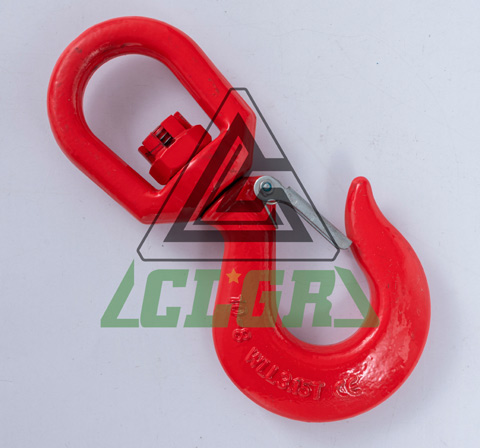

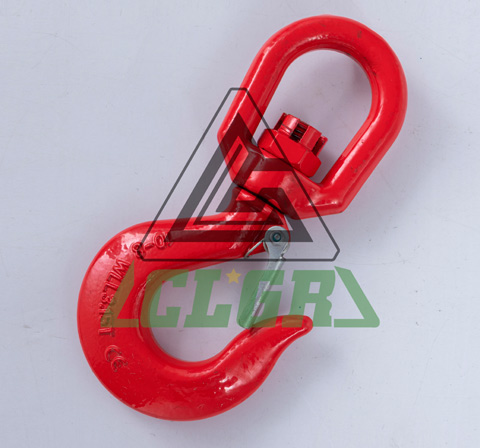

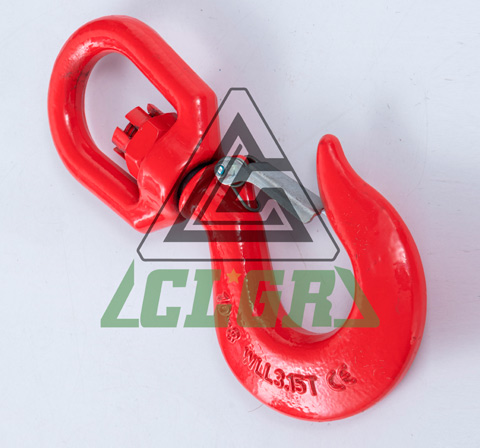

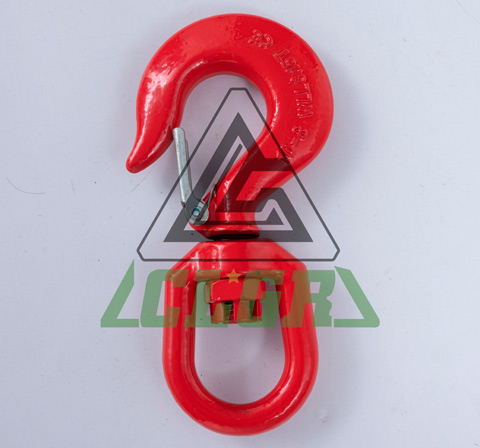

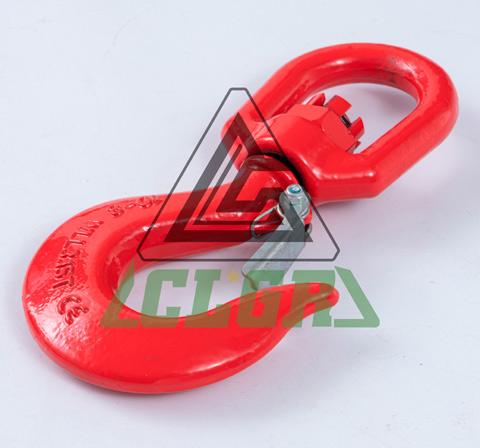

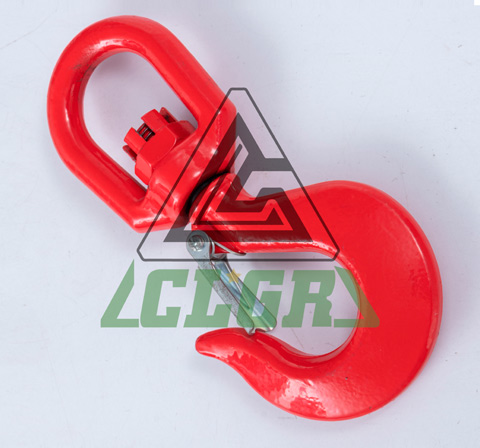

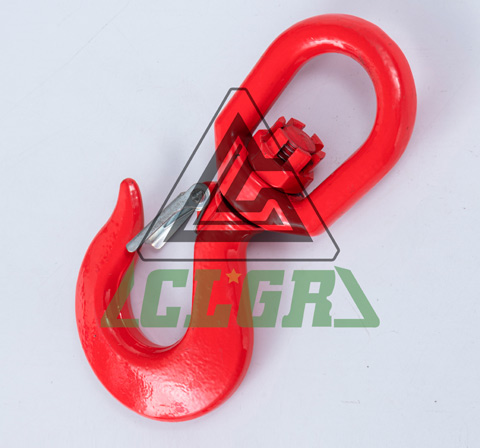

CLGR® Grade 80 Alloy Swivel Safety hook with Latch, also known as grade 80 swivel eye slip hooks with latch, and some customers also called it G80 Swivel Cargo Hooks.

Forged from special alloy steel for high strength and toughness with subsequent heat treatment, this component is compatible with standard slings and G80 chains.

Our swivel safety hook offers reliable 360° horizontal rotation and 180° vertical tilting through its robust swivel mechanism.

It suitable for port and ship operations, construction and heavy lifting. Available G80 swivel self-locking hook sizes include: 6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm, and 32mm.

We are a highly professional Chinese manufacturer and supplier of rigging products. If you are interested, please feel free to contact us.

To Get A Quote >

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Manufacturers

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Suppliers

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Factory

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Exporter

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch China

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch for Sale

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Price

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Company

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Cost

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Wholesale Manufacturers

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Wholesale Suppliers

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Factories

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Companies

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Maker

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Speed

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Function

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Uses

CLGR® Alloy Grade 80 Swivel Safety Hook with Latch Application

 

Overview of CLGR® Alloy Grade 80 Swivel Safety Hook with Latch

Brand	CLGR®
Technical Notes	European Type
Size	6mm, 8mm,10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm
Material	Super Alloy Steel
Standard	European Type
Safety Factor	4:1
Processing	Forged / Quenched and Tempered.
Surface Finish	Powder Coating
Note	Designed to swivel under load; Color can be customized

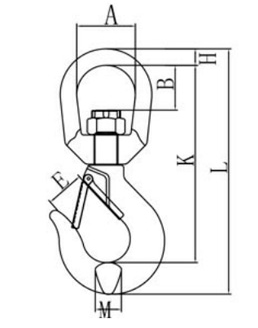

Specifications of CLGR® Alloy Grade 80 Swivel Safety Hook with Latch


Part No.	Size	WEIGHT/kg	W.L.L. (T)	B.L. (T)	A±1.2	E±1.5	B±1.5	H±1	K±2	L±2.5	M±0.5
8CRHSC06	6	0.34	1.12	4.48	32	22	17	9	109	137	16
8CRHSC08	8	1.02	2	8	42	21.5	35	15.8	150	192	21
8CRHSC10	10	1.24	3.15	12.6	42.5	26	35	15.8	162.5	208.5	23
8CRHSC13	13	3.6	5.3	21.2	48	32.5	39	18	191	246	31
8CRHSC16	16	4.66	8	32	62	43	53	25	243.5	313	34
8CRHSC20	20	7.4	12.5	50	68	49.5	51	28.5	276.5	363.5	41.5
8CRHSC22	22	10.6	15	60	79	54.5	65	32	332	431	55.7
8CRHSC26	26	21.4	21.2	84.8	105	81	114	40	429.5	545.5	70
8CRHSC32	32	32	31.5	126	105	100	96	40	465.3	596	76.2
