CLGR® Grade 80 Clevis Sling Hook with Safety Latch

Name: CLGR® Grade 80 Clevis Sling Hook with Safety Latch
Brand: CLGR®

G80 Clevis Sling Hook with Safety Latch, also known as Grade 80 Clevis Slip Hook with Latch.

Manufactured from super alloy steel, the clevis safety hook is equipped with spring loaded safety latch that conforms to EN 1677-2.

The Clevis Self-Locking Hook is matched with the G80 chain for lifting, and it can prevent accidental detachment, significantly improving the safety of high-altitude, dynamic, or high-risk operations.

The color code can be customized according to customers' requirements.

We are a highly professional Chinese manufacturer and supplier of rigging products. If you are interested, please feel free to contact us.

To Get A Quote >

15 CLGR® Grade 80 Clevis Sling Hook with Safety Latch

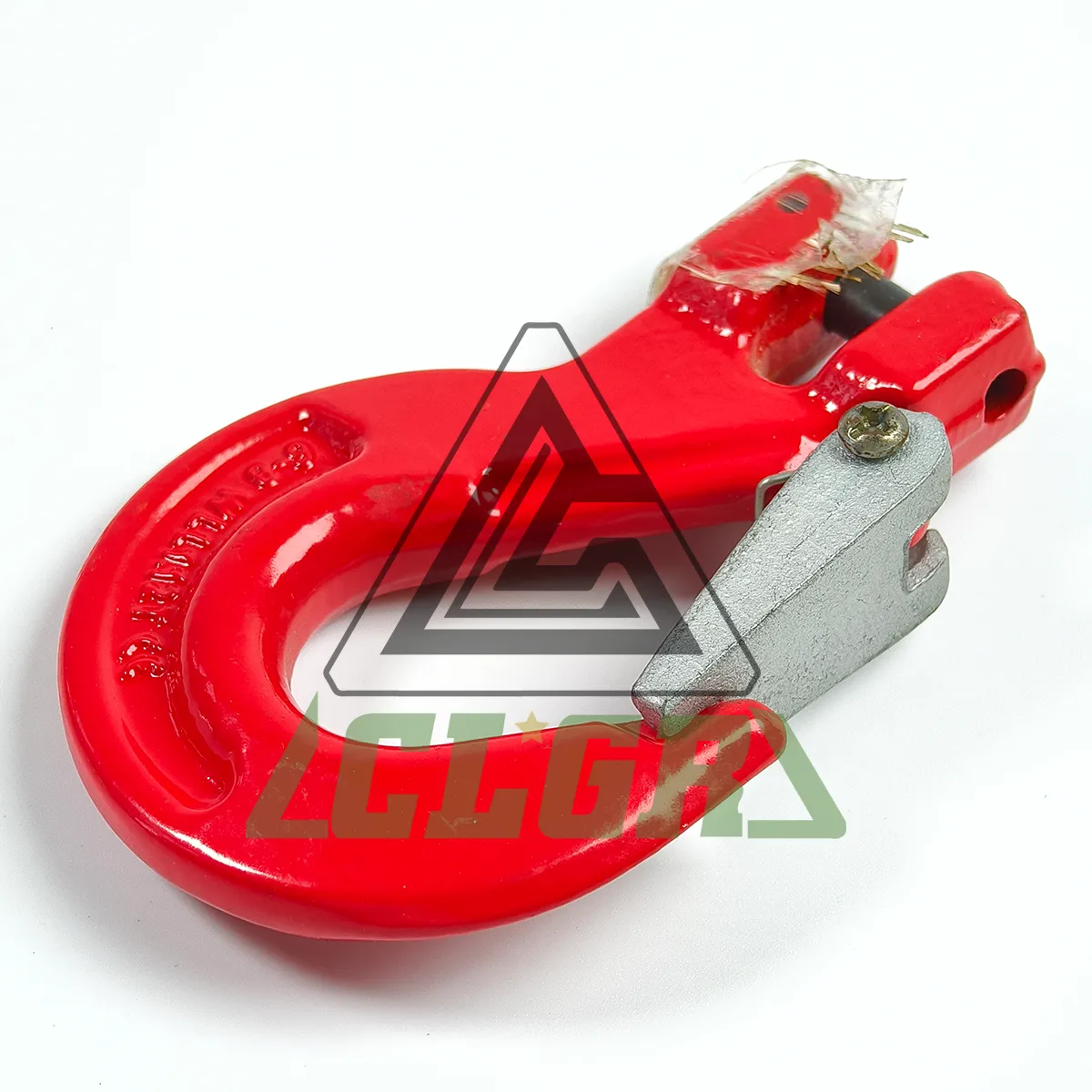

grade 80 clevis sling hook with safety latch china manufacturer

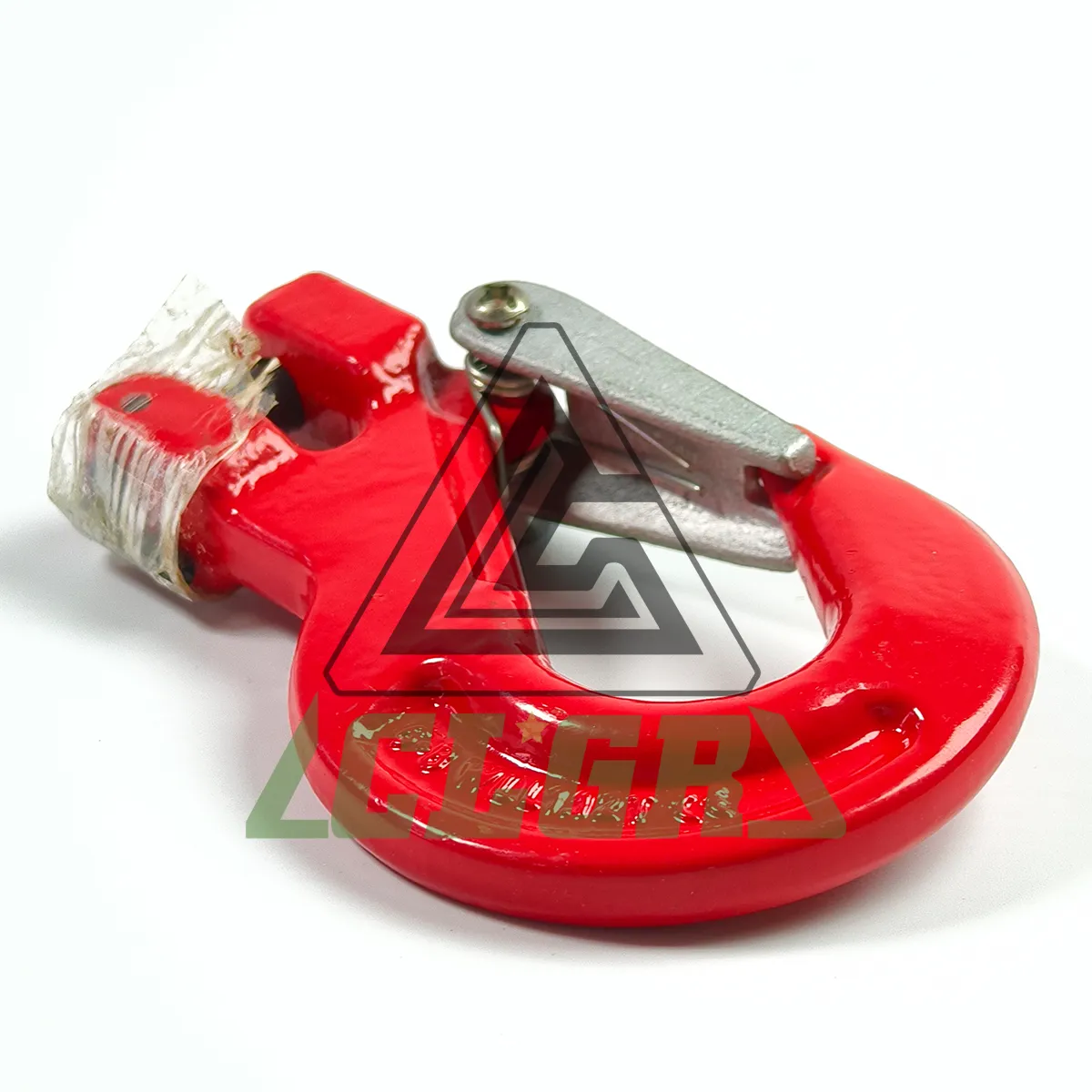

grade 80 clevis sling hook with safety latch china

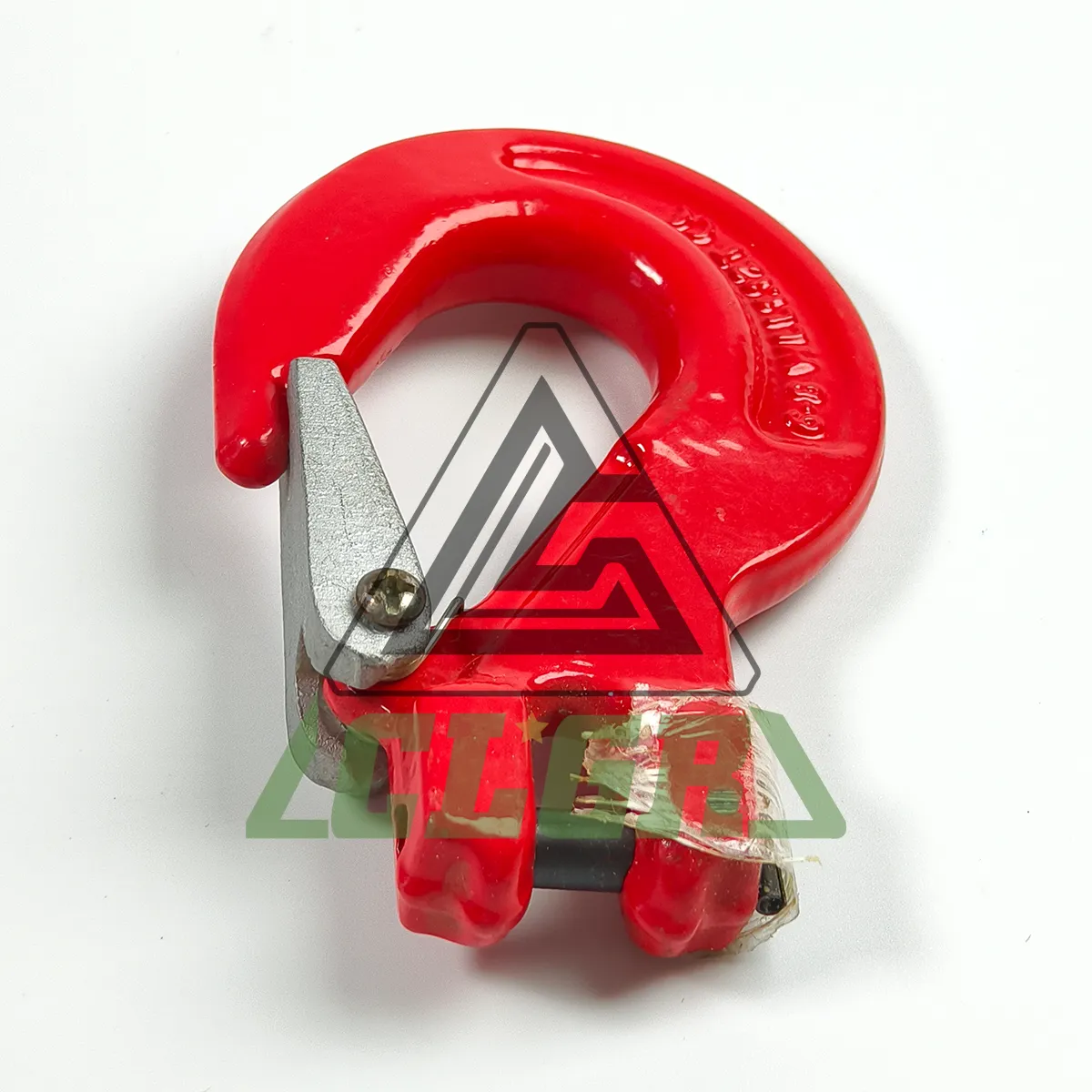

grade 80 clevis sling hook with safety latch china factory

grade 80 clevis sling hook with safety latch china supplier

 

Overview of CLGR® Grade 80 Clevis Sling Hook with Safety Latch

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm
Material	Superior Alloy Steel
Standard	European Type
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch: Forged / Casted / Stamped
Surface Finish	Body: Powder coated
Latch	Hot dip galvanized / Galvanized / Dacroment / Stainless steel
Tips	Color Code: Customized according to customers' requirements
Important Note	Always ensure the safety latch is properly engaged before lifting to prevent accidental load release.

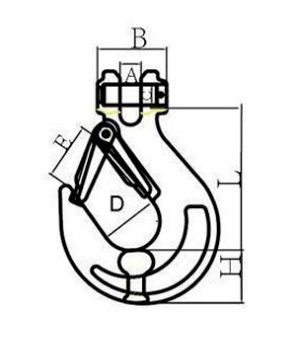

Specifications of CLGR® Grade 80 Clevis Sling Hook with Safety Latch

Part No.	Weight (kg)	W.L.L. (t)	B.L. (t)	A±0.5	B±1.5	D±1	H±1	L±2	E±2
8CRCSHL06	0.32	1.12	4.48	8	32	35	23	76	26
8CRCSHL7/8	0.48	2.0	8.0	9.5	37	37	32.5	85.5	29
8CRCSHL10	0.95	3.15	12.6	13	49	46	35	104	39
8CRCSHL13	1.8	5.3	21.2	16.5	56.5	56	42.5	128	47
8CRCSHL16	3.4	8	32	21.5	70.5	60	54	150	55
8CRCSHL20	6	12.5	50	24	77	79	58	180	61
8CRCSHL22	10.4	15	60	27	91	101	62	213	72
8CRCSHL26	14.5	21.2	84.8	30	117	115	75	250	85
8CRCSHL32	27.0	31.5	126	35	150	140	88	317	106
