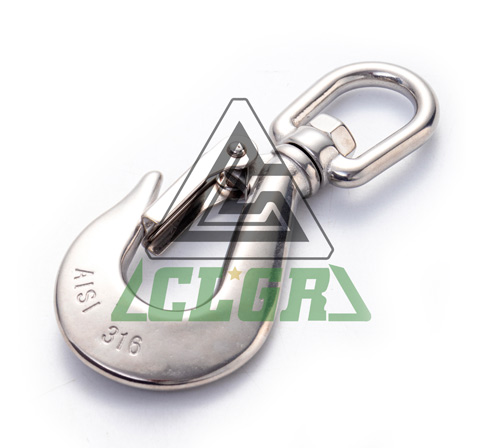

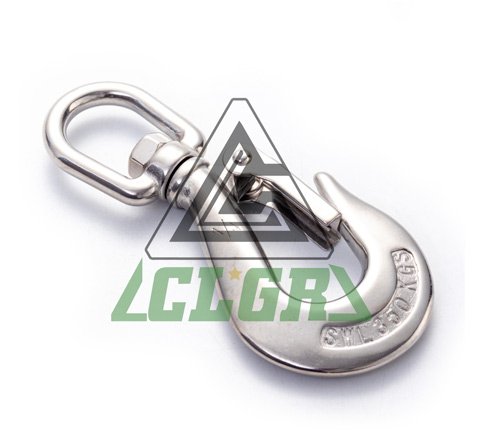

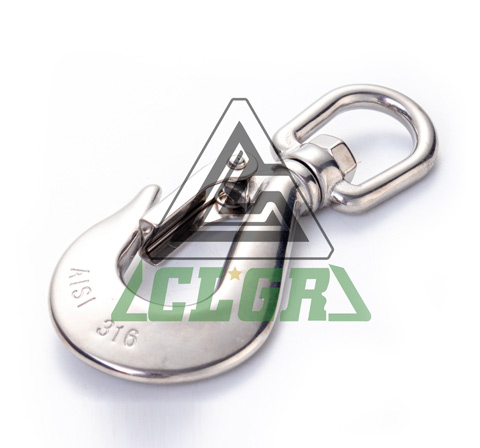

CLGR® Stainless Steel Swivel Eye Hook with Latch, also called stainless steel swivel hook with safety catch and stainless steel cargo swivel hook.
High quality 304 or 316 stainless steel with high polished surface with normal stainless steel, it's more durable, antirust and corrosion resistant can be soaked freely in rain.
This swivel eye hook features a removable safety latch and is load-rated, making it ideal for demanding industrial and marine applications. Its 360-degree free rotation prevents rope or chain twisting, reducing wear and avoiding breakage caused by knotting.
Brand | CLGR® |
Size | 1/4", 5/16", 3/8", 1/2" |
Type | U.S. Federal Specification |
Material | Type 304 or Type 316 Stainless Steel |
Processing | Precision Casting |
Surface Finish | Highly Polishing |
Warning | NOT FOR LIFTING |

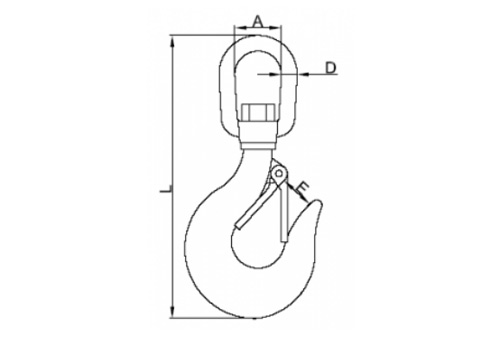

Part No. | D | A | E | L | WLL(lbs) |
CRSSHSW1/4 | 1/4″ | 0.83″ | 0.59″ | 4.76″ | 770 |
CRSSHSW5/16 | 5/16″ | 1.10″ | 0.78″ | 5.59″ | 1430 |
CRSSHSW3/8 | 3/8″ | 1.10″ | 0.78″ | 6.69″ | 2200 |
CRSSHSW1/2 | 1/2″ | 1.42″ | 1.00″ | 7.89″ | 3300 |
Note:
1. Regular inspection of the hook according to the use condition, no more than one month.
2. Stop using when the hook is not flexible to rotate.
3. Stop using immediately when the hook is deformed.
4. It is forbidden to overload the use.
5. It is forbidden to stand under the objects when adjusting the suspension.
