CLGR® Grade 80 OBK Hook With Grip Eye Self-locking Hook

Name: CLGR® Grade 80 OBK Hook With Grip Eye Self-locking Hook
Brand: CLGR®

CLGR® Grade 80 OBK Hook With Grip Eye Self-locking Hook, also known as OBK Safety Hook with Locking Latch, is engineered for secure connections to Grade 80 lifting chains.

Made from heat-treated alloy steel, the CLGR® Eye Self-locking Hook delivers strength for demanding lifts.

It features an automatic locking mechanism that engages under load to prevent sling disengagement.

Each hook is proof-tested at 2.5x WLL and fatigue-tested at 1.5x WLL for 20,000 cycles to ensure safety and reliability in critical lifting operations.

To Get A Quote >

clgr® grade 80 obk hook with grip eye self locking hook main 8mm

clgr grade 80 obk hook grip eye self locking side 8mm

clgr grade 80 obk hook grip eye self locking size 8mm

clgr® grade 80 obk hook with grip eye self locking hook side

clgr grade 80 obk hook grip eye self locking side 2

 

Overview of CLGR® Grade 80 OBK Hook With Grip Eye Self-locking Hook

Brand	CLGR®
Standard	EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015.
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 80 Attachments For Overhead Lifting

Specification of CLGR® Grade 80 OBK Hook With Grip Eye Self-locking Hook

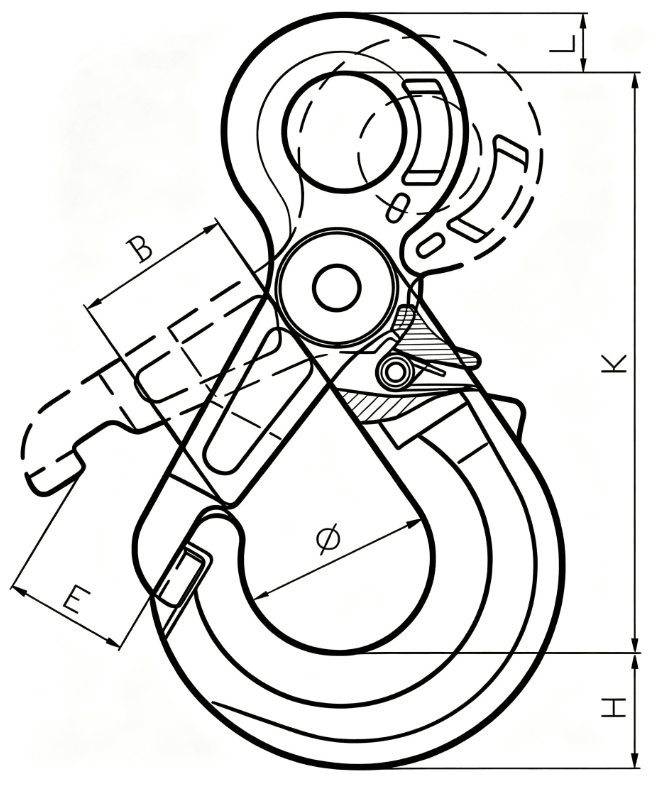

Drawing-clgr®grade80-obk-hook-with-grip-eye-self-locking-hook-china-supplier

Part No.	weight (kg)	WLL (T)	B.L. (T)	B±1	E±1	Ø±1	H±1	K±2	L±1
CR-8-OBK-H08	0.81	2	8	37.5	35	45	21	136	12
CR-8-OBK-H10	1.25	3.2	12.8	45	42	56	25	170	15
CR-8-OBK-H13	2.10	5.3	21.2	56	50	71	32	212	19
CR-8-OBK-H16	3.20	8	32	67	60	85	38	250	22
