CLGR® Single Fluke Anchor Cast Steel - Marine Anchor

Name: CLGR® Single Fluke Anchor Cast Steel - Marine Anchor
Brand: CLGR®

CLGR® Single Fluke Anchor is a type of marine anchor that has only one claw, similar to a naval anchor. However, this anchor is larger in size compared to the naval anchor and therefore has a greater anchor force.

It can be used as a locating anchor for a variety of work boats and dredgers to ensure that the vessel does not move during dredging operations.

To Get A Quote >

CLGR® Single Fluke Anchor Cast Steel for Sale

CLGR® Single Fluke Anchor Cast Steel China

Overview of CLGR® Single Fluke Anchor Cast Steel

Brand	CLGR®
Type	HHP Single Fluke Stock Anchor
Material	Cast Steel.
Nominal Weight	75KGS to 25,000KGS.
Surface Treatment	Black Bitumen Paint, anti-rust paint or customized.
Category	Marine Mooring Equipment
Application	Working anchor for engineering ships etc.

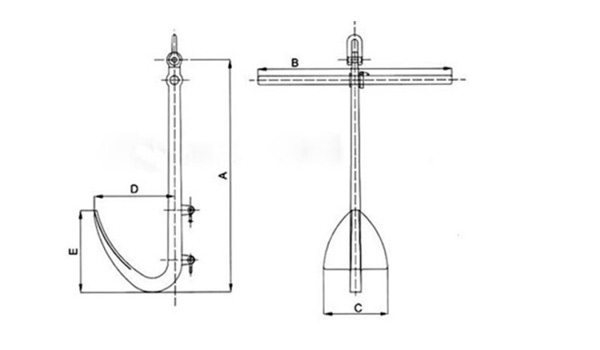

Specifications of CLGR® Single Fluke Anchor Cast Steel

Part No.	Nominal Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
Part No.	Nominal Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
CRSFA75	75	1310	1100	360	455	465
CRSFA100	100	1445	1200	400	500	510
CRSFA150	150	1650	1380	455	575	585
CRSFA200	200	1820	1520	505	630	645
CRSFA300	300	2080	1740	575	725	735
CRSFA400	400	2290	1915	635	800	810
CRSFA500	500	2470	2065	680	855	875
CRSFA600	600	2620	2190	725	910	930
CRSFA800	800	2890	2415	800	1000	1020
CRSFA1000	1000	3110	2600	860	1080	1100
CRSFA1250	1250	3350	2800	925	1165	1185
CRSFA1500	1500	3560	2980	985	1235	1260
CRSFA1750	1750	3750	3135	1035	1300	1325
CRSFA2000	2000	3920	3275	1085	1360	1385
CRSFA3000	3000	4485	3750	1240	1555	1585
CRSFA4000	4000	4940	4125	1360	1710	1745
CRSFA5000	5000	5320	4440	1472	1845	1880
CRSFA6000	6000	5650	4720	1560	1960	1995
CRSFA7000	7000	5950	4970	1645	2065	2100
CRSFA8000	8000	6220	5200	1720	2155	2200
CRSFA9000	9000	6468	5400	1790	2240	2288
CRSFA10000	10000	6700	5600	1852	2320	2154
CRSFA12000	12000	7115	5950	1968	2465	2516
CRSFA15000	15000	7670	6410	2120	2657	2710
CRSFA18000	18000	8148	6810	2253	2823	2882
CRSFA20000	20000	8400	7020	2320	2910	2970
CRSFA22000	22000	8710	7275	2410	3020	3074
CRSFA25000	25000	9080	7590	2510	3146	3212
