CLGR® Casting Steel Japan/JIS Stockless Anchor

Name: CLGR® Casting Steel Japan/JIS Stockless Anchor
Brand: CLGR®

The Japan Stockless Anchor features a wide crown with a triangular end and exceptionally long claws formed by two bevels in an inverted V-shape, with minimal distance between the claws - an optimal design for seabed penetration.

Characterized by its substantial volume, it delivers exceptional holding power, outstanding grip performance, remarkable stability, and convenient stowage. As a stockless anchor, it is primarily manufactured per Japanese standard JIS F3301-1980.

Its unique design enables simultaneous engagement of both flukes in seabed substrates, offering superior stability, excellent adaptability to diverse seabed conditions, and effortless retrieval operations.

To Get A Quote >

CLGR® Casting Steel Japan Stockless Anchor China

Overview of CLGR® Casting Steel Japan/JIS Stockless Anchor

Brand	CLGR®
Material	Casting Steel
Function	Ship Mooring
Type	High Holding Pow stockless type anchor according to JIS standard.er Anchor
Surface Finish	Black Painting, Hot Dip Galvanized
Origin	China

Specifications of CLGR® Casting Steel Japan/JIS Stockless Anchor

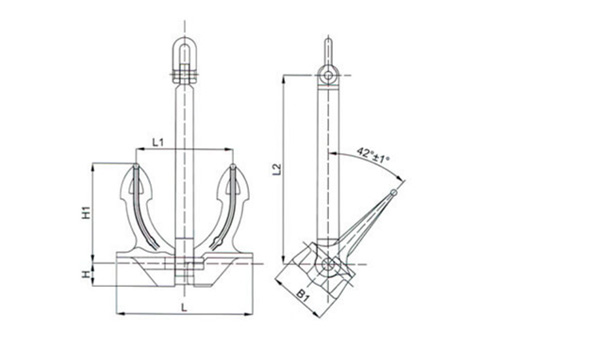

Part No.	Nominal Weight (KG)	Size（mm）
Part No.	Nominal Weight (KG)	L	L1	L2	H	H1	B1
CRJISL180	180	650	459	910	111	480	280
CRJISL240	240	720	510	1010	122	530	310
CRJISL300	300	770	540	1080	131	570	331
CRJISL360	360	820	580	1150	139	610	333
CRJISL420	420	860	610	1200	146	640	370
CRJISL480	480	900	640	1300	153	670	387
CRJISL570	570	950	670	1330	162	700	408
CRJISL660	660	1000	710	1410	170	740	430
CRJISL750	750	1060	750	1480	180	780	456
CRJISL900	900	1110	780	1550	189	820	477
CRJISL1020	1020	1160	820	1620	197	860	500
CRJISL1140	1140	1200	850	1680	204	890	520
CRJISL1290	1290	1250	880	1750	212	920	540
CRJISL1440	1440	1300	920	1820	221	960	560
CRJISL1590	1590	1340	950	1890	228	990	580
CRJISL1740	1740	1380	980	1930	235	1020	600
CRJISL1920	1920	1430	1010	2000	243	1060	620
CRJISL2100	2100	1470	1040	2060	253	1090	640
CRJISL2280	2280	1510	1070	2110	257	1120	650
CRJISL2460	2460	1550	1100	2170	264	1150	670
CRJISL2640	2640	1590	1120	2230	270	1180	690
CRJISL2850	2850	1630	1150	2280	277	1210	700
CRJISL3060	3060	1670	1180	2340	284	1240	720
CRJISL3300	3300	1710	1210	2390	291	1270	740
CRJISL3340	3340	1750	1240	2450	298	1290	750
CRJISL3780	3780	1790	1260	2510	304	1320	770
CRJISL4050	4050	1830	1290	2560	311	1350	790
CRJISL4320	4320	1870	1320	2620	318	1380	800
CRJISL4590	4590	1910	1350	2670	325	1410	820
CRJISL4890	4890	1950	1380	2730	332	1440	840
CRJISL5250	5250	2000	1410	2800	340	1480	860
CRJISL5610	5610	2040	1440	2890	347	1510	880
CRJISL6000	6000	2090	1480	2930	355	1540	900
CRJISL6450	6450	2140	1510	3000	364	1580	920
CRJISL6900	6900	2190	1550	3070	372	1620	940
CRJISL7350	7350	2280	1600	3140	380	1660	980
CRJISL7800	7800	2330	1610	3190	388	1720	990
CRJISL8300	8300	2380	1670	3320	403	1750	1020
CRJISL8700	8700	2420	1710	3390	411	1790	1040
CRJISL9300	9300	2470	1740	3460	420	1820	1060
CRJISL9900	9900	2530	1800	3500	428	1880	1090
CRJISL10500	10500	2570	1855	3650	447	1850	1130
CRJISL11100	11100	2610	1855	3650	444	1945	1130
CRJISL12300	12300	2650	1855	3710	457	1975	1130
CRJISL12900	12900	2690	1855	3870	450	1945	1170
CRJISL13500	13500	2740	1885	3840	466	1975	1170
CRJISL14100	14100	2780	1960	3950	473	2050	1200
CRJISL14700	14700	2820	1990	3990	479	2090	1210
CRJISL15400	15400	2860	2020	4000	486	2110	1230
CRJISL16100	16100	2895	2050	4130	493	2140	1250
CRJISL16900	16900	2985	2080	4180	500	2180	1270
CRJISL17800	17800	3060	2120	4290	510	2210	1290
CRJISL18800	18800	3000	2160	4320	520	2260	1320
CRJISL20000	20000	3120	2200	4370	530	2300	1340
CRJISL21500	21500	3200	2230	4480	540	2360	1380
CRJISL23000	23000	3270	2310	4590	560	2410	1410
CRJISL24500	24500	3340	2360	4680	570	2460	1440
CRJISL26000	26000	3410	2410	4770	580	2520	1470
CRJISL27500	27500	3470	2450	4860	590	2560	1490
CRJISL29000	29000	3530	2490	4940	600	2620	1550
CRJISL30000	30000	3660	2610	5170	630	2760	1590
CRJISL33500	33500	3780	2670	5290	640	2790	1630
CRJISL35500	35500	3880	2740	5340	660	2860	1670
CRJISL42000	42000	4000	2820	5400	680	2990	1720
CRJISL46000	46000	4120	2910	5770	700	3040	1770
