CLGR® HHP MK5 Stevpris Anchor/Stevshark Anchor for Offshore & Fish

Name: CLGR® HHP MK5 Stevpris Anchor/Stevshark Anchor for Offshore & Fish
Brand: CLGR®

CLGR® HHP MK5 Stevpris/Stevshark Anchor, also known as HHP Stephen Anchor, MK5 Steven/Stevin HHP Anchor, Drag anchor, Offshore anchor and Drag Embedment anchor. It is widely used in the marine offshore mooring projects and deepsea aquaculture cage mooring project.

This anchor currently ranks among the most versatile options in the offshore rigging industry, which explains why it is widely used on offshore rigs. As a high holding power anchor, it comes with an adjustable shank. This feature allows the anchor to be modified to suit different seabed conditions, eliminating the need to replace it entirely for each application. This significantly cuts down on costs over time.

To Get A Quote >

Overview of CLGR® HHP MK5 Stevpris Anchor/Stevshark Anchor

Brand	CLGR®
Type	High Holding Power HHP MK5 Stevpris/Stevshark Anchor
Material	Steel
Surface Finish	Black Painting, Hot Dip Galvanized
Origin	China

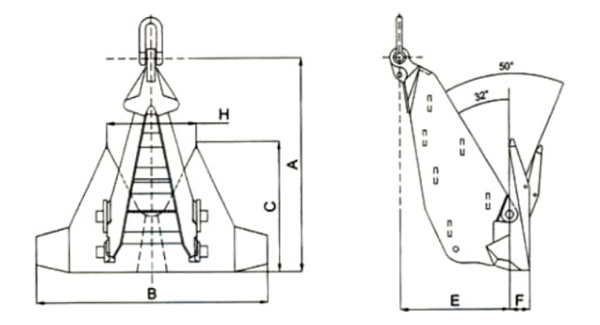

Specifications of CLGR® HHP MK5 Stevpris Anchor/Stevshark Anchor

Part No.	Nominal Weight(kg)	Dimensions (mm)
Part No.	Nominal Weight(kg)	A	B	C	E	F	H
CRMK501	300	1828	1968	1101	927	160	757
CRMK502	500	2040	2197	1233	1035	179	845
CRMK503	1000	2580	2780	1582	1314	236	1074
CRMK504	1500	2945	3184	1812	1505	271	1230
CRMK505	2000	3244	3494	1969	1646	285	1343
CRMK506	3000	3721	4011	2283	1896	342	1550
CRMK507	5000	4412	4756	2707	2248	406	1837
CRMK508	7000	4910	5290	3011	2500	453	2045
CRMK509	8000	5161	5563	3166	2629	474	2149
CRMK510	10000	5559	5992	3410	2832	511	2315
CRMK511	12000	5908	6368	3624	3010	543	2460
CRMK512	14000	6219	6704	3815	3169	572	2590
CRMK513	15000	6364	6860	3904	3242	585	2650
CRMK514	18000	6763	7290	4149	3446	622	2816
CRMK515	20000	7004	7550	4297	3569	644	2917
CRMK516	22000	7230	7794	4436	3684	665	3011
CRMK517	25000	7545	8133	4629	3844	694	3142
CRMK518	30000	8018	8645	4919	4085	737	3339
