CLGR® Ship Hall Anchor Type A B C - Marine Anchor

Name: CLGR® Ship Hall Anchor Type A B C - Marine Anchor
Brand: CLGR®

CLGR® Ship Hall Anchor Type A B C, also known as Ship Steel Casting Type ABC Stockless Hall Anchor.

The Marine Hall anchor is a heavy-duty Spek type anchor with Stockless High Strength, designed for demanding marine applications.

It is made from high-strength steel or alloys to handle heavy loads and tough conditions. The anchor features a black protective coating to improve corrosion resistance and durability. The black finish also helps shield against UV damage, extending its lifespan.

The Marine Hall anchor, as a heavy-duty Spek type, provides secure seabed penetration and reliable holding power for stable vessel mooring in harsh conditions.

The Marine Hall anchor is available in three main types: Type A, Type B, and Type C.

Type A features a rectangular shank for balanced weight distribution and strong seabed penetration, ideal for stable anchoring across various ship sizes.

Type B has a round shank allows for easier rotation and adjustment, making it adaptable to shifting seabeds and frequent repositioning needs.

Type C uses a short rectangular shank for compact storage and quick deployment, maintaining reliable holding power despite its smaller size.

To Get A Quote >

CLGR® Ship Hall Anchor Type A B C - Marine Anchor Suppliers

CLGR® Ship Hall Anchor Type A B C - Marine Anchor Manufacturers

CLGR® Ship Hall Anchor Type A B C - Marine Anchor Cost

Overview of CLGR® Ship Hall Anchor Type A B C

Brand	CLGR®
Type	Ship Hall Anchor Type A B C
Material	Cast Steel.
Surface Treatment	Black Bitumen Paint, anti-rust paint or customized.
Category	Marine Mooring Equipment
Application	Working anchor for engineering ships etc.

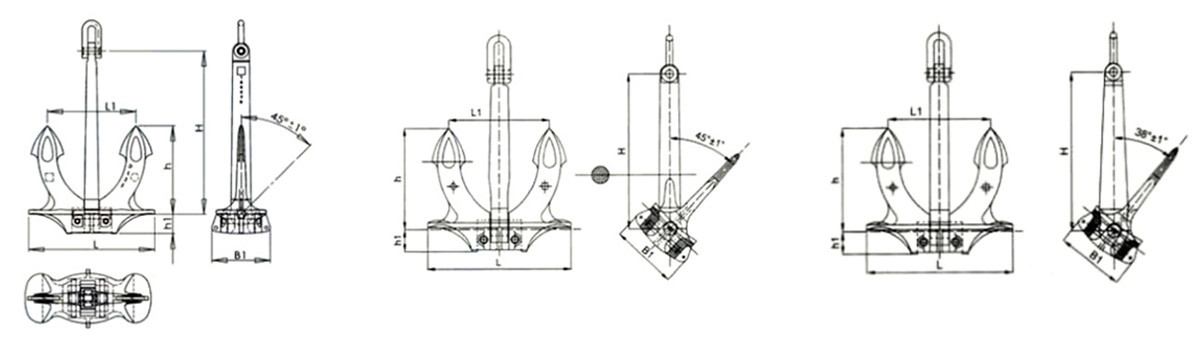

Specifications of CLGR® Ship Hall Anchor Type A B C

Specifications 1

Part No.	Nominal Weight (KG)	Dimensions (mm)
		H			h	h1	L	L1	B1
		A Type	B Type	C Type	h	h1	L	L1	B1
CRHAA40	40	557	557	430	303	67	430	303	198
CRHAA 60	60	637	637	492	347	76	492	347	227
CRHAA100	100	760	760	590	410	90	584	410	227
CRHAA125	125	814	814	629	443	97	629	443	290
CRHAA150	150	866	866	665	470	103	760	470	308
CRHAA180	180	919	919	718	500	109	710	500	327
CRHAA240	240	1019	1019	788	552	120	790	552	361
CRHAA300	300	1095	1095	850	595	130	844	595	388
CRHAA360	360	1160	1160	898	630	138	988	630	412
CRHAA420	420	1160	1160	946	660	145	946	660	434
CRHAA480	480	1222	1222	986	690	152	988	690	464
CRHAA570	570	1355	1355	1042	732	161	1042	732	481
CRHAA660	660	1356	1356	1093	769	169	1096	769	506
CRHAA780	780	1506	1506	1115	815	178	1160	815	535
CRHAA900	900	1580	1580	1210	833	188	1220	833	560
CRHAA1020	1020	1645	1645	1268	855	188	1220	855	560
CRHAA1140	1140	1705	1705	1316	891	195	1319	891	605
CRHAA1290	1290	1778	1778	1378	926	203	1288	926	684
CRHAA1440	1440	1844	1844	1448	965	203	1379	965	630
CRHAA1590	1590	1906	1906	1511	1035	236	1475	1035	677
CRHAA1740	1740	1966	1966	1571	1068	234	1517	1068	698
CRHAA1920	1920	2031	2031	1621	1104	241	1568	1104	722
CRHAA2100	2100	2098	2098	1652	1120	245	1590	1120	732
CRHAA2280	2280	2150	2150	1716	1165	225	1657	1165	763
CRHAA2460	2460	2207	2207	1785	1194	262	1700	1194	784
CRHAA2640	2640	2297	2297	1843	1222	265	1730	1222	796
CRHAA2850	2850	2318	2318	1890	1253	275	1787	1253	822
CRHAA3060	3060	2374	2374	1955	1283	282	1820	1283	841
CRHAA3300	3300	2432	2432	1985	1317	288	1882	1317	862
CRHAA3540	3540	2490	2490	2032	1349	295	1926	1349	883
CRHAA3780	3780	2547	2547	2077	1376	302	1965	1376	902
CRHAA4050	4050	2610	2610	2125	1406	309	2008	1406	924
CRHAA4320	4320	2695	2695	2171	1435	316	2051	1435	933
CRHAA4590	4590	2712	2712	2216	1455	332	2093	1455	962
CRHAA4890	4890	2769	2769	2263	1498	329	2135	1498	984
CRHAA5000	5000	2800	2800	2317	1510	332	2156	1510	992
CRHAA5610	5610	2899	2899	2369	1559	345	2234	1559	1031
CRHAA6000	6000	2965	2965	2422	1605	352	2284	1605	1054
CRHAA6450	6450	3037	3037	2458	1641	361	2340	1641	1080
CRHAA6900	6900	3100	3100	2538	1684	369	2393	1684	1105
CRHAA7350	7350	3100	3100	2562	1688	370	2400	1688	1109
CRHAA7800	7800	3255	3255	2644	1752	385	2493	1752	1152
CRHAA8300	8300	3363	3363	2699	1788	393	2545	1788	1176

Specifications 2

Part No.	Nominal Weight (KG)	Dimensions (mm)
		H			h	h1	L	L1	B1
		A Type	B Type	C Type	h	h1	L	L1	B1
CRHAA8700	8700	3355	3355	2742	1816	399	2585	1816	1195
CRHAA9300	9300	3430	3430	2804	1850	417	2632	1850	1226
CRHAA9900	9900	3502	3502	2863	1894	417	2699	1894	1248
CRHAA10500	10500	3571	3571	2920	1936	425	2752	1936	1273
CRHAA11100	11100	3638	3638	2975	1970	433	2803	1970	1297
CRHAA11700	11700	3702	3702	3028	2009	444	2853	2009	1320
CRHAA12300	12300	3764	3764	3079	2035	448	2901	2035	1342
CRHAA12900	12900	3824	3824	3128	2072	455	2947	2072	1363
CRHAA13500	13500	3882	3882	3176	2104	462	2992	2104	1384
CRHAA14100	14100	3939	3939	3222	2135	469	3036	2135	1404
CRHAA14700	14700	3994	3994	3267	2169	473	3078	2169	1424
CRHAA15400	15400	4056	4056	3299	2195	486	3126	2195	1446
CRHAA16100	16100	4117	4117	3368	2232	490	3173	2232	1468
CRHAA16900	16900	4184	4184	3429	2268	498	3225	2268	1492
CRHAA17800	17800	4252	4252	3473	2308	506	3281	2308	1518
CRHAA18900	18900	4330	4330	3543	2350	516	3341	2350	1546
CRHAA20000	20000	4420	4420	3617	2399	529	3411	2399	1578
CRHAA21500	21500	4528	4528	3705	2458	536	3494	2458	1617
CRHAA23000	23000	4631	4631	3789	2514	551	3573	2514	1654
CRHAA24500	24500	4730	4730	3870	2568	563	3649	2568	1689
CRHAA26000	26000	4825	4825	3947	2619	574	3722	2619	1723
CRHAA27500	27500	4916	4916	4021	2666	585	3792	2666	1756
CRHAA29000	29000	5004	5004	4093	2716	595	3860	2716	1787
CRHAA31000	31000	5126	5126	4188	2774	609	3949	2774	1822
CRHAA33000	33000	5234	5234	4281	2833	627	4032	2833	1860
CRHAA35500	35500	5363	5363	4376	2903	632	4103	2903	1906
