CLGR® Danforth Anchor HHP – The China Manufacturer Supplier, Factory

Name: CLGR® Danforth Anchor HHP – The China Manufacturer Supplier, Factory
Brand: CLGR®

CLGR® Danforth Anchor HHP, also known as Workboat Anchor.

The High Holding Power (HHP) Danforth Anchor is a boat mooring anchor, widely recognized and relied upon in offshore, dredging, and shipping sectors, is renowned for its high holding power.

This fluke anchor has a high-strength steel shank and wide, sturdy flukes, hot-dipped galvanized for durability. The Danforth anchor's lightweight, flat design makes it easy to retrieve and store. With an adjustable shank/fluke angle (32°–45°), it grips well on hard sand, soft mud, and other sea bottoms.

To Get A Quote >

CLGR® Danforth Anchor HHP – The China Manufacturer Supplier, Factory

Overview of CLGR® Danforth Anchor HHP

Brand	CLGR®
Type	High Holding Power Danforth Anchor
Material	Steel
Surface Finish	Black Bitumen Painting, Hot Dip Galvanized
Origin	China

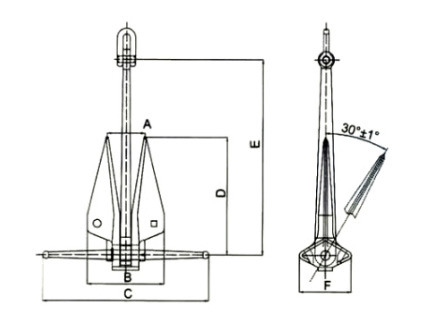

Specifications of CLGR® Danforth Anchor HHP

Part No.	Nominal Weight/kg	A/mm	B/mm	C/mm	D/mm	E/mm	F/mm	Shackle Model
CRDAHHP01	100	159	322	714	485	800	219	a4
CRDAHHP02	150	183	372	793	560	926	253	a5
CRDAHHP03	200	203	412	874	621	995	281	a6
CRDAHHP04	250	225	457	960	689	1075	312	a6
CRDAHHP05	300	228	461	1000	706	1166	314	a7
CRDAHHP06	400	257	522	1090	788	1284	356	a8
CRDAHHP07	500	274	554	1180	836	1380	378	a9
CRDAHHP08	600	290	588	1253	888	1466	401	a9
CRDAHHP09	750	314	635	1350	958	1578	433	a9
CRDAHHP10	1000	344	694	1488	1060	1739	472	a11
CRDAHHP11	1250	369	741	1603	1135	1864	505	a12
CRDAHHP12	1500	396	800	1703	1207	1988	545	a12
CRDAHHP13	2000	438	888	1875	1336	2190	604	a14
CRDAHHP14	2500	470	950	2020	1432	2330	647	a14
CRDAHHP15	2625	470	950	2020	1432	2330	647	a14
CRDAHHP16	2750	485	960	2120	1432	2335	650	a14
CRDAHHP17	3000	502	1033	2146	1575	2396	710	a14
CRDAHHP18	3500	550	1111	2265	1677	2515	757	a15
CRDAHHP19	4000	552	1114	2365	1680	2623	759	a15
CRDAHHP20	5000	595	1200	2480	1811	2850	818	a16
CRDAHHP21	6000	630	1274	2680	1920	3164	866	a17
CRDAHHP22	6600	652	1317	2792	1986	3260	897	a19
CRDAHHP23	8000	592	1398	2970	2109	3475	971	a19
CRDAHHP24	9000	715	1448	3080	2200	3490	990	a20
CRDAHHP25	10000	735	1484	3200	2270	3591	1010	a21
CRDAHHP26	15000	851	1700	3680	2610	4100	1160	a23
CRDAHHP27	20000	936	1870	4050	2870	4510	1276	a26
CRDAHHP28	30000	1136	2250	4900	3400	5400	1520	a30
CRDAHHP29	35000	1208	2414	5250	3670	5830	1642	a31
CRDAHHP30	40000	1286	2588	5625	3930	6250	1758	a32
CRDAHHP31	45000	1378	2745	5968	4172	6610	1867	a33
CRDAHHP32	50000	1450	2890	6282	4393	6950	1956	a34
