CLGR® Kenter Joining Shackle U2/U3 Grade

Name: CLGR® Kenter Joining Shackle U2/U3 Grade
Brand: CLGR®

CLGR® Kenter Joining Shackle, also known as Kenter Link Shackle, Anchor Chain Kenter Shackle, Lugess Joining Shackle, and Kenter Lugless Shackle.

The Kenter-type joining link is a three-part chain connector consisting of two numbered half-links, a center block, and a tapered locking pin with lead plug.

Designed for secure assembly, the matching halves feature alignment arrows that guide proper positioning with the stud.

Installation involves vertically connecting the halves to chain ends, inserting the stud to lock the assembly, then securing the joint by driving the tapered pin through the diagonal hole spanning all three components.

To Get A Quote >

CLGR® Kenter Joining Shackle U2 Grade China

Overview of CLGR® Kenter Joining Shackle U2/U3 Grade

Brand	CLGR®
Size range	14mm – 60mm dia. Larger sizes available on request.
Material	CM690 Steel
Processing	Drop Forged
Finish	Black Bitumen Coating, Hot dip galvanized Finish Available on Request
Finish	Black Painting, Galvanized, Original Color
Markings	Each length is marked with a unique identification number on the end link for purposes of traceability
Application	Link two different length of anchor chains

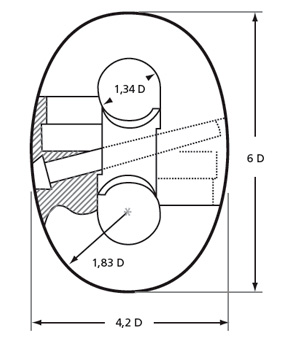

Specifications of CLGR® Kenter Joining Shackle U2/U3 Grade

Part No.	Nominal DIA. mm	Weight kg	Part No.	Nominal DIA. mm	Weight kg	Part No.	Nominal DIA. mm	Weight kg
CRAKS011	11	0.47	CRAKS050	50	19.00	CRAKS100	100	146.00
CRAKS012.5	12.5	0.54	CRAKS052	52	20.30	CRAKS102	102	158.00
CRAKS014	14	0.60	CRAKS054	54	23.70	CRAKS105	105	160.00
CRAKS016	16	0.65	CRAKS056	56	26.70	CRAKS107	107	180.00
CRAKS017.5	17.5	0.88	CRAKS058	58	27.20	CRAKS111	111	198.00
CRAKS019	19	1.13	CRAKS060	60	27.70	CRAKS114	114	204.00
CRAKS020.5	20.5	1.36	CRAKS062	62	35.00	CRAKS117	117	225.00
CRAKS022	22	1.64	CRAKS064	64	38.40	CRAKS120	120	250.00
CRAKS024	24	2.13	CRAKS066	66	42.30	CRAKS122	122	263.00
CRAKS026	26	2.58	CRAKS068	68	46.00	CRAKS124	124	290.00
CRAKS044	46	14.10	CRAKS095	95	128.00
CRAKS048	48	16.70	CRAKS097	97	133.00

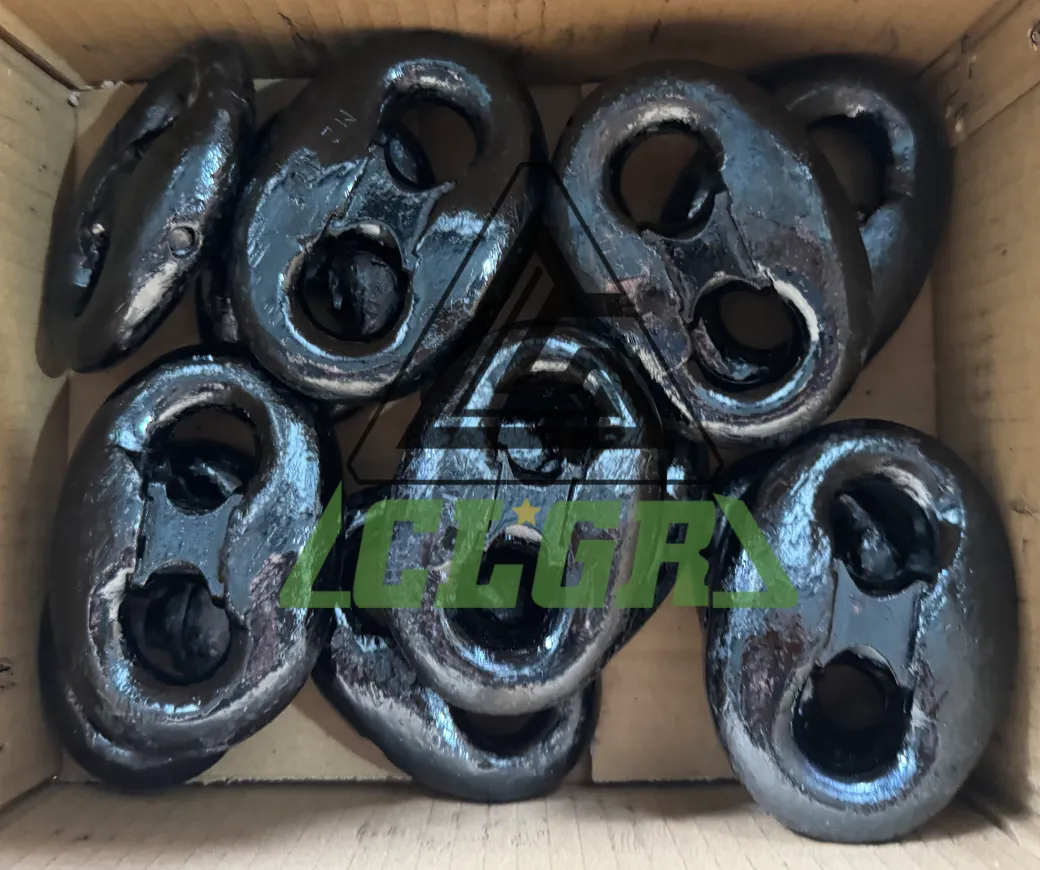

Bulk Photos of Kenter Joining Shackle U2/U3 Grade

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
