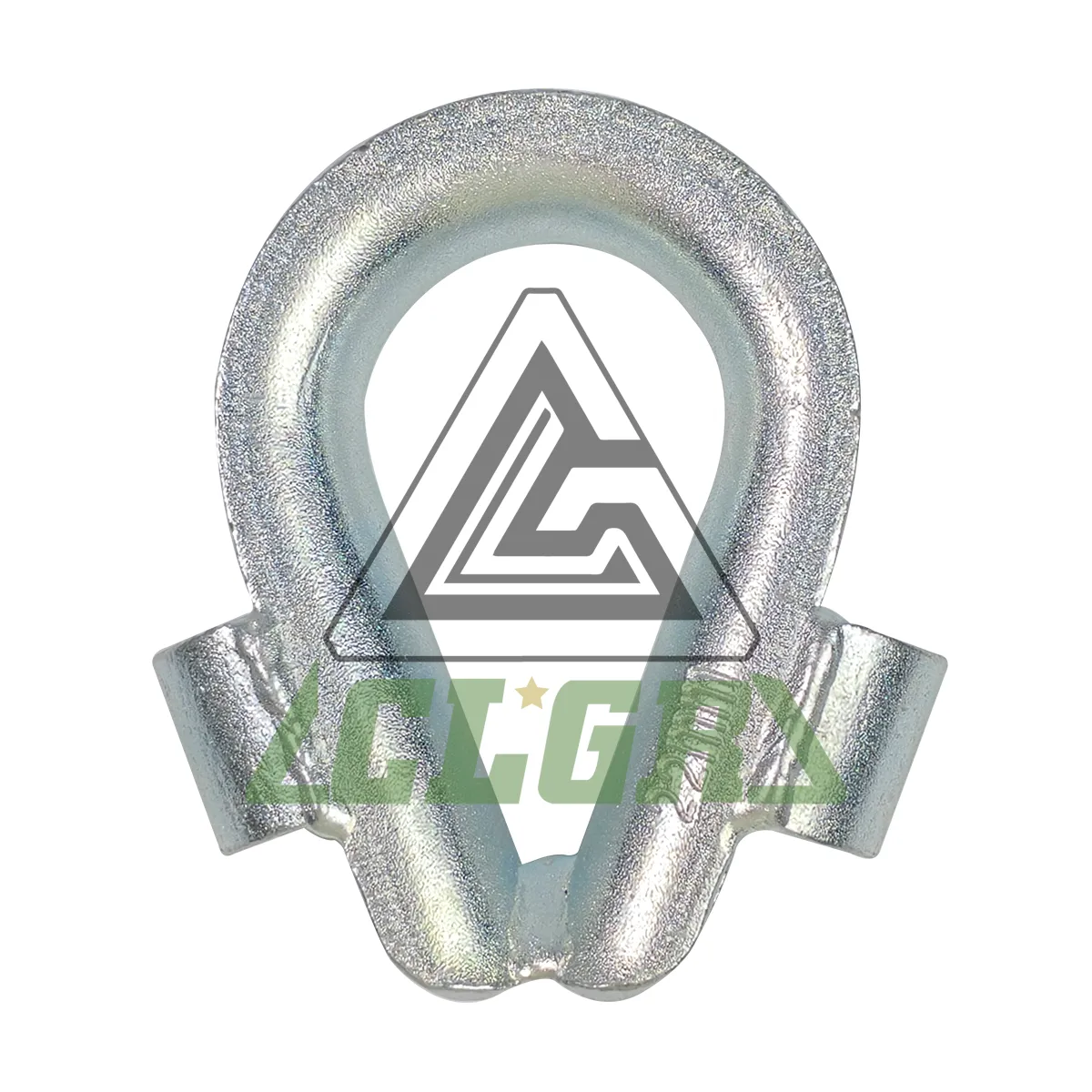

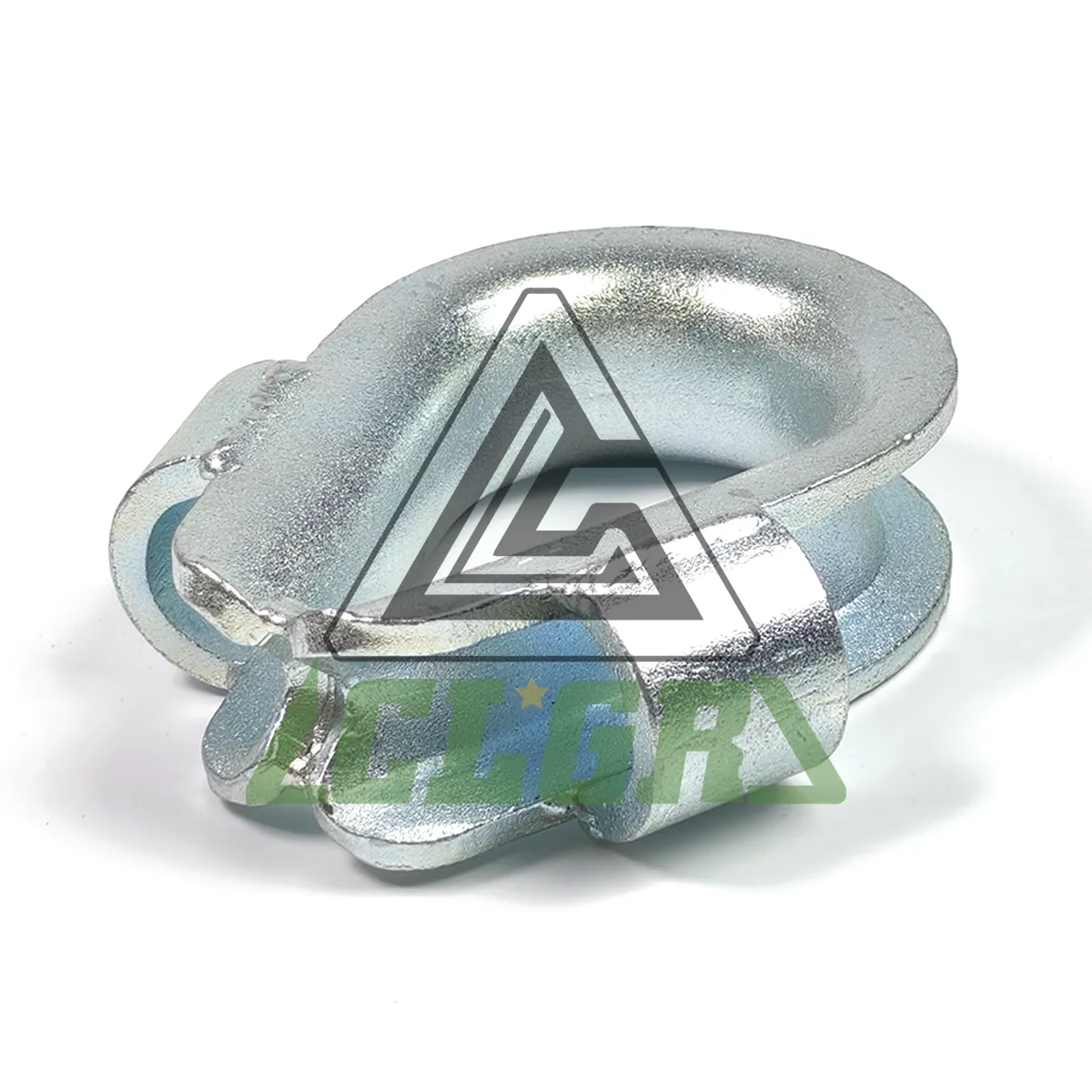

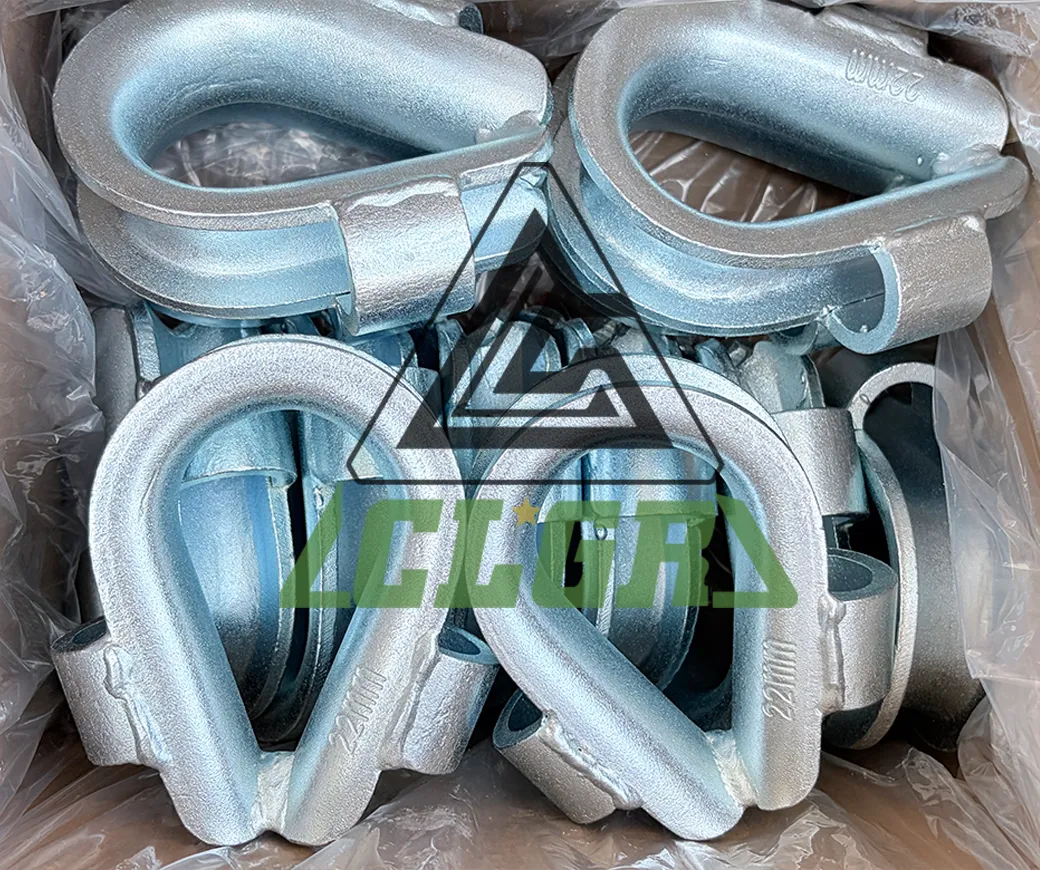

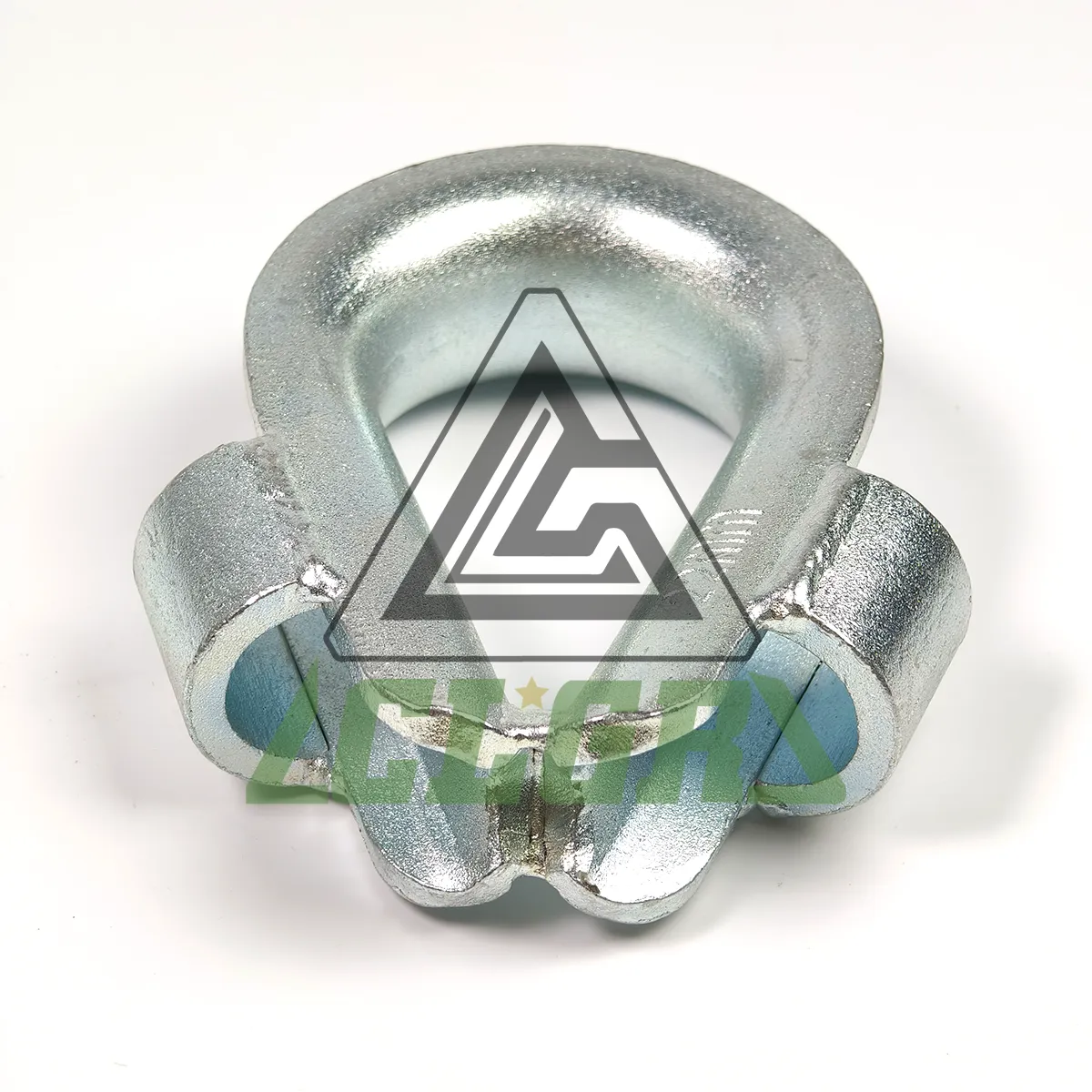

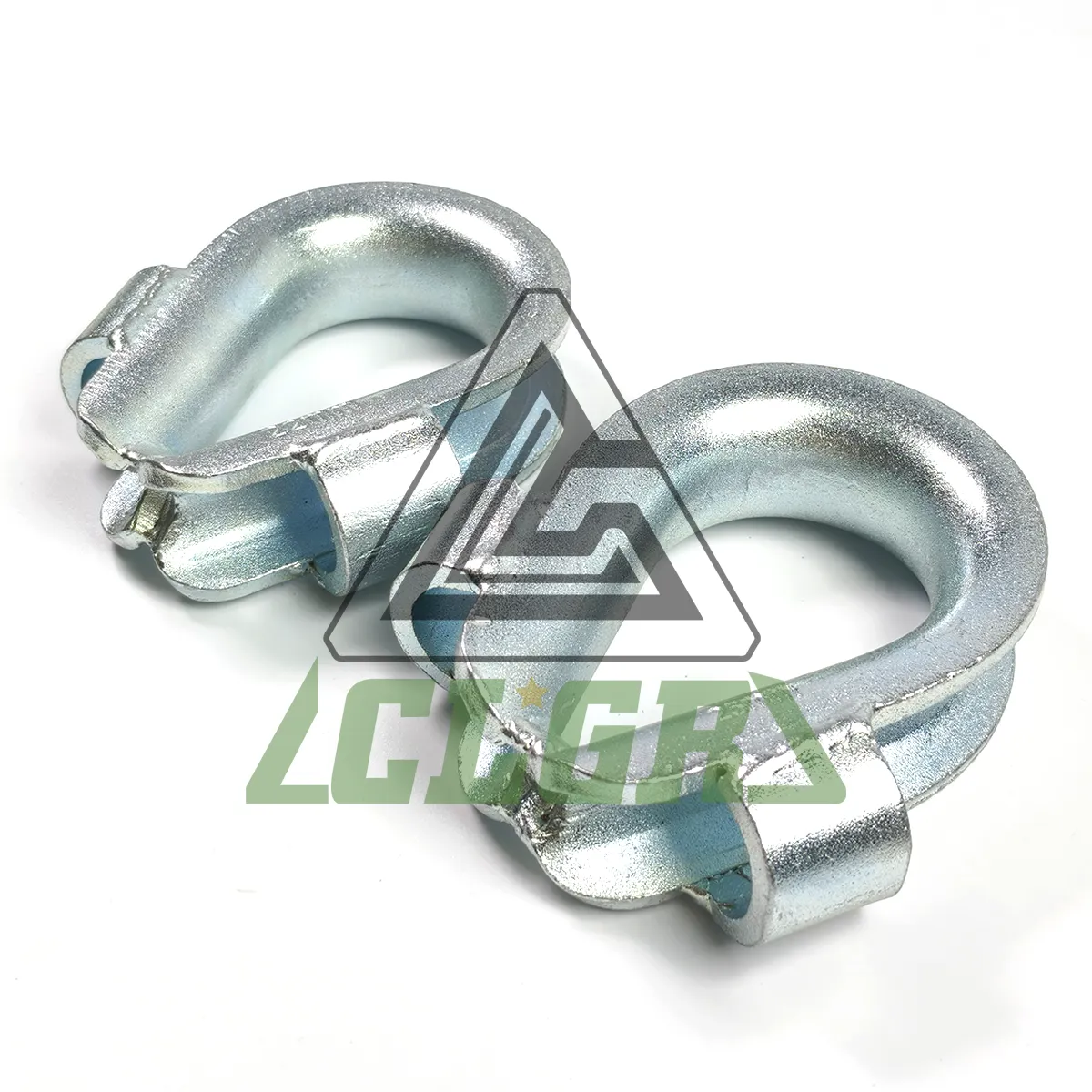

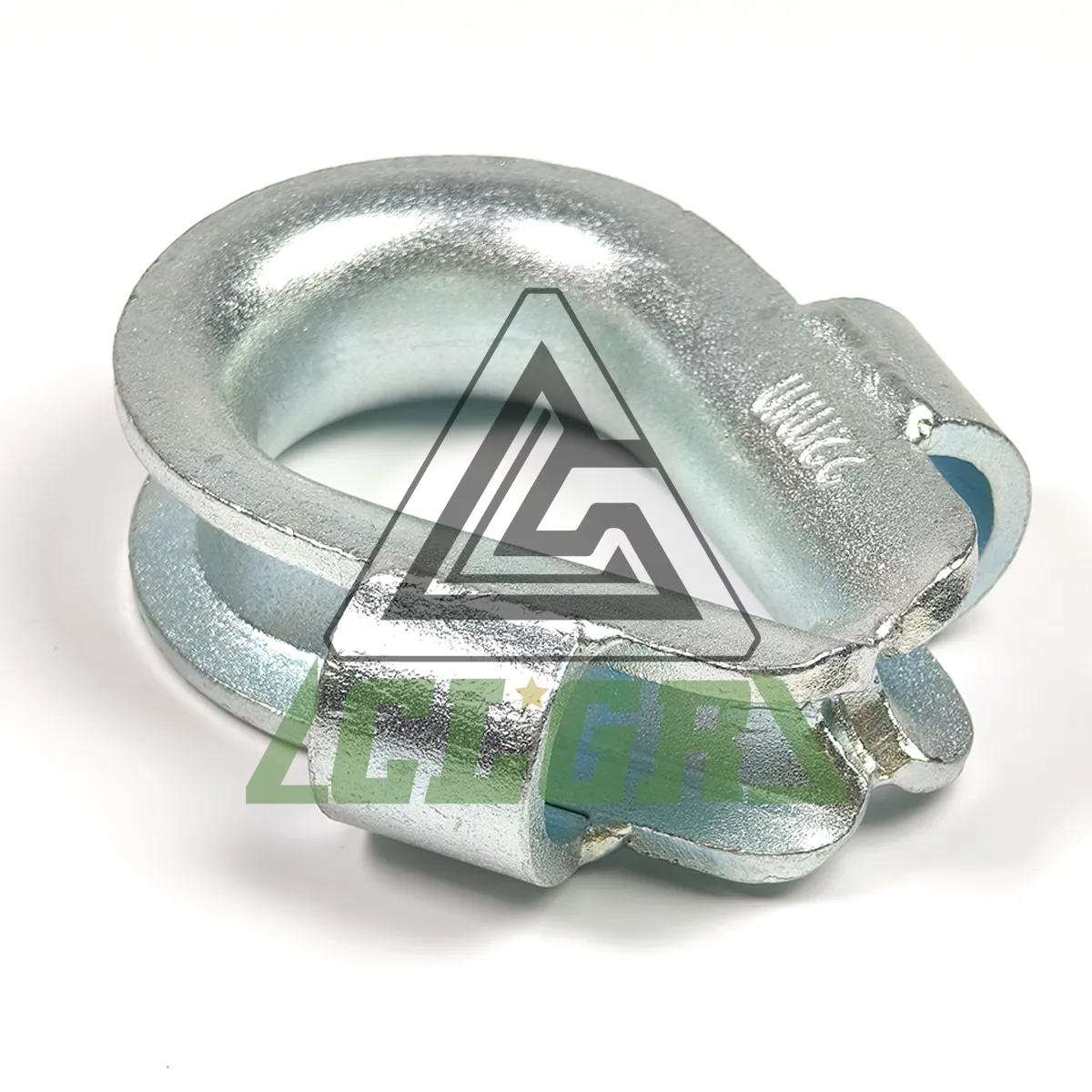

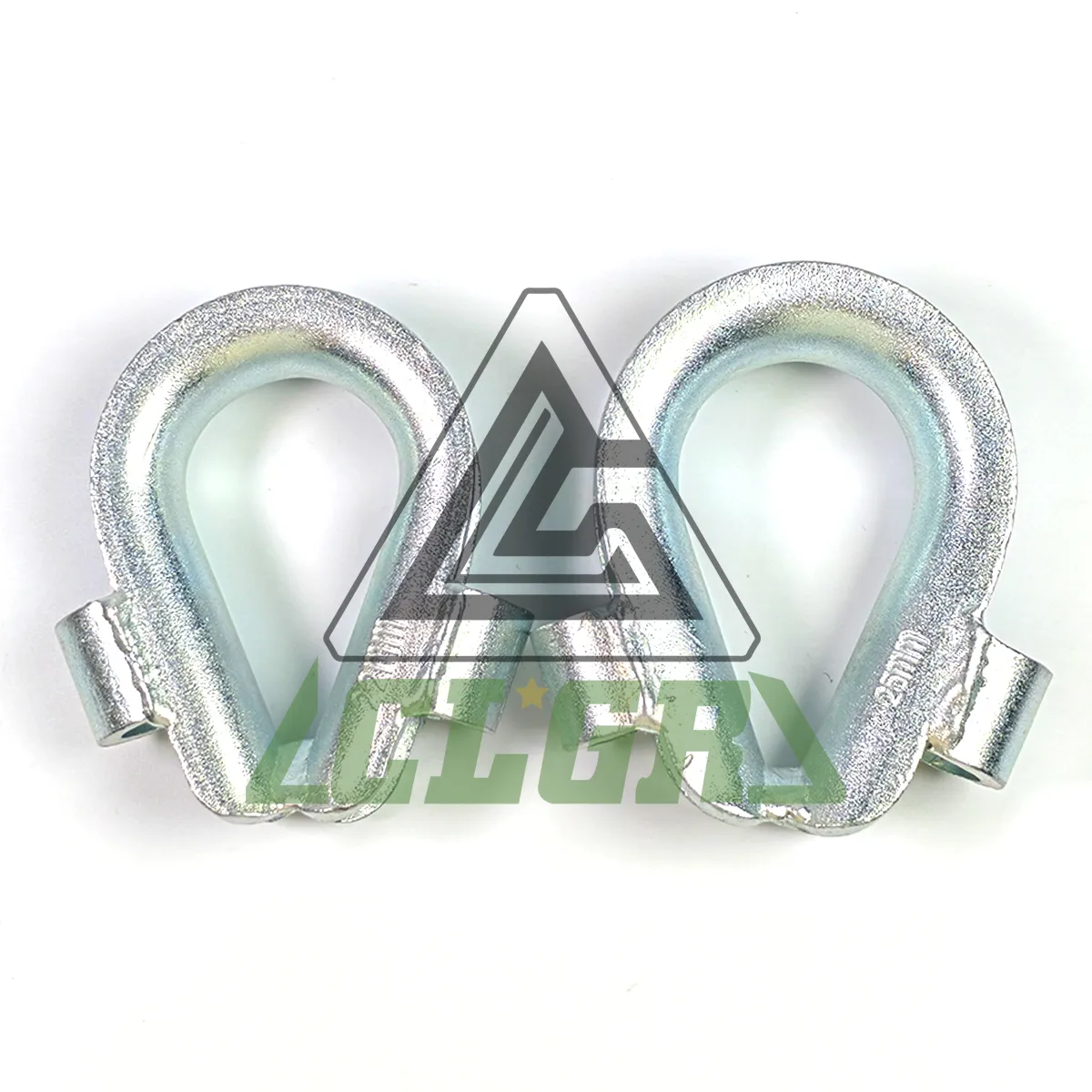

CLGR® Wire Rope Thimble with Ear Galvanized, also known as Wire Course.
This rope thimble features two ears is made from galvanized steel, the thimble is designed to protect the rope from wear, abrasion and crushing at the point of connection.

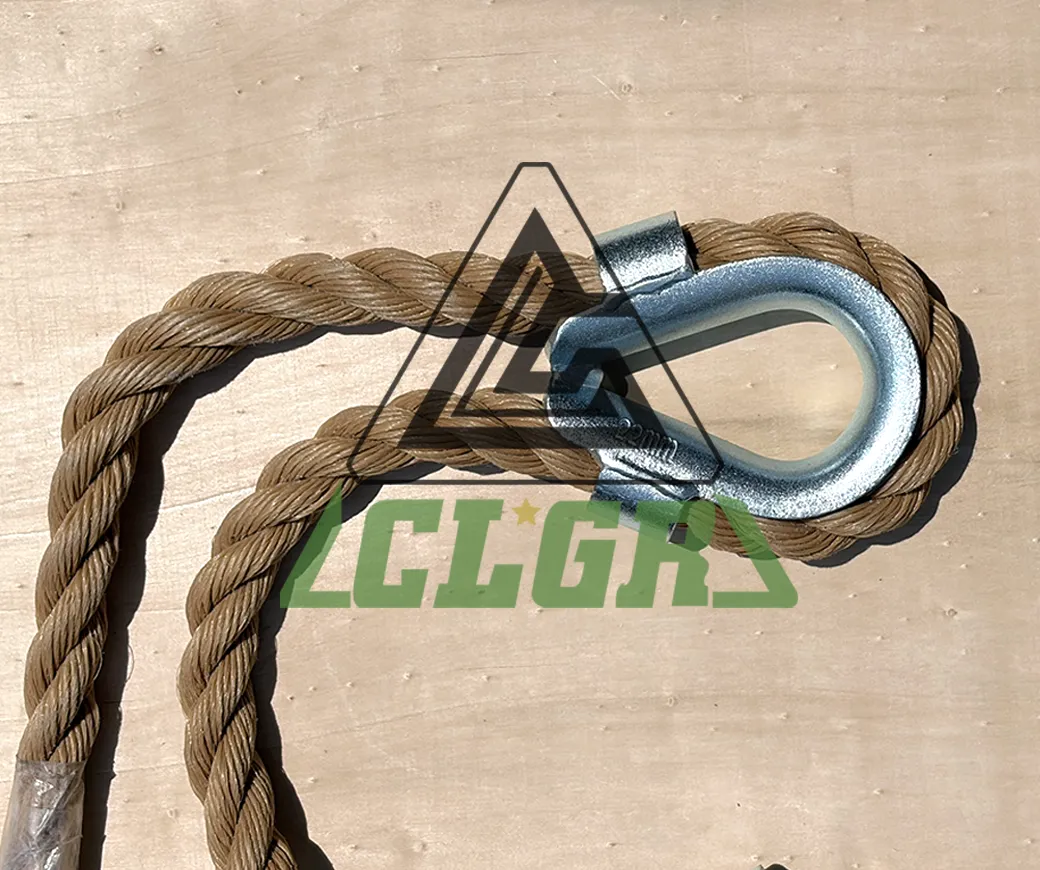

It serves as positioning guides, helping to center and stabilize the thimble within the rope eye, preventing it from twisting or slipping under load.
The galvanized finish provides added corrosion resistance, making them suitable for both indoor and outdoor use.
Available size: 22mm, 25mm. For custom sizes or bulk orders, please contact us for more details.
Brand | CLGR® |
Description | Course (Thimble) with Ear |
Type | D Type |
Material | Super Mild Steel |
Finish | Hot Dip Galvanized/ Electro-Galvanized |
Size | 22mm, 25mm |
Processing | Welding |
Country of Origin | China Manufacture |
Part No. | Size (mm) | L (mm) | B (mm) | C (mm) | D (mm) | E (mm) | T (mm) | F (mm) | G (mm) | Weight [kg] |
CRWCTDT22 | 22 | 127 | 88 | 90 | 52 | 12 | 5 | 26 | 37 | 0.8 |
CRWCTDT25 | 25 | 133 | 98 | 98 | 58 | 13.5 | 5 | 29 | 39 | 0.91 |
