CLGR® Grade 80 Lifting Chains EN818-2 – Alloy Steel Short Link Chain

Name: CLGR® Grade 80 Lifting Chains EN818-2 – Alloy Steel Short Link Chain
Brand: CLGR®

CLGR® Grade 80 Lifting Chains EN818-2, also known as G80 Alloy Steel Short Link Chain, Grade 8 Lifting Chain, Welded Link Chain, or Grade 80 Load Chain, are high-strength welded chains for demanding lifting and rigging applications.

These G80 chains are heat-treated and tempered for superior durability and impact resistance, making them ideal for chain slings, chain slings for lifting, and complete rigging systems.

We also offer G100 chain for higher working load limits, with the same chain sizes for flexible overhead lifting tasks. Standard sizes: 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm. Other sizes on request.

Our industrial chains can be paired with hooks, shackles, lifting rings, and coupling links to build versatile chain sling assemblies. Chain links meet EN818-2 standards for consistent quality. Always check the WLL to prevent overloading.

We also supply an Electric-hydraulic Chain Cutter for cutting heavy duty chain efficiently.

Whether you need a lifting chain for hoists, a load chain for rigging, or a complete overhead lifting chain system, CLGR® lifting chain manufacturers delivers secure, reliable solutions. Choose the right configuration for your load requirements.

To Get A Quote >

 

Overview of CLGR® Grade 80 Lifting Chains EN818-2

Brand	CLGR®
Size	6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 26mm, 32mm
Material	Super Alloy Steel
Standard	European Type (EN818-2)
Safety Factor	4: 1
Processing	Welded
Surface Finish	Black oxidised Finish/ Electrophoretic Coating/ Powder Coating
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Grade 80 Lifting Chains EN818-2

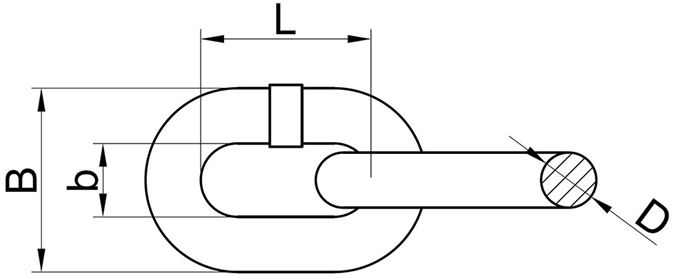

Drawing of CLGR® Grade 80 Lifting Chains EN818-2

Part No.	Nominal Size D	Pitch L	External Width B	Internal Width b	W.L.L	Manufacturing Proof Force	Min. Breaking Force	Min. Bend Deflection	Weight
	Nominal Size D	Pitch L	External Width B	Internal Width b	W.L.L	Manufacturing Proof Force	Min. Breaking Force	Min. Bend Deflection	Weight
	mm	mm	mm	mm	t	kN	kN	mm	kg/m
8CR8182C04	4	12	13.2	5.2	0.5	12.6	20.1	3.2	0.349
8CR8182C05	5	15	16.5	6.5	0.8	19.6	31.4	4	0.545
8CR8182C06	6	18	21	9	1.1	28.3	45.2	4.8	0.802
8CR8182C07	7	21	24	10	1.5	38.5	61.6	5.6	1.083
8CR8182C08	8	24	27.5	11.5	2	50.3	80.4	6.4	1.416
8CR8182C10	10	30	34.5	14.5	3.2	78.5	126	8	2.216
8CR8182C13	13	39	45	19	5.3	133	212	10	3.749
8CR8182C16	16	48	55.5	23.5	8	201	322	13	5.571
8CR8182C18	18	54	61	25	10	254	407	14	7.154
8CR8182C19	19	57	64	26	11.2	284	454	15	7.773
8CR8182C20	20	60	68	28	12.5	314	503	16	8.641
8CR8182C22	22	66	73.5	29.5	15	380	608	18	10.391
8CR8182C26	26	78	89	37	21.2	531	849	21	14.64
8CR8182C32	32	96	112	48	31.5	804	1290	26	22.358

Bulk Stock Photos of CLGR® Grade 80 Lifting Chains EN818-2

bulk photo clgr grade 80 lifting chains en818 2 alloy steel short link chain package

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
