CLGR® DIN763 Long Link Chain Stainless Steel - China Manufacturer Supplier, Factory

Name: CLGR® DIN763 Long Link Chain Stainless Steel - China Manufacturer Supplier, Factory
Brand: CLGR®

CLGR® DIN763 Long Link Chain, made from Marine grade stainless steel, this chain offers excellent resistance to corrosion, making it suitable for both indoor and outdoor use.

The parts are tumbled and polished to remove any burrs, resulting in a high-quality shine.

Although perfect for marine use, CLGR® DIN763 Long Link Chain can also be used in other demanding sectors like the food or chemical industry, due to the inert nature of stainless.

DIN763 Long Link Chain is supplied in one continuous length.

CLGR®, a leading name among link chain manufacturers, can offer the DIN763 Stainless Steel Long Link Chain in sizes of 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 8.5m, 9mm, 10mm, 11mm, 12mm, 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm and 32mm.

Do not use as a traction or lifting product.

To Get A Quote >

5 CLGR® DIN763 Long Link Chain Stainless Steel

CLGR® DIN763 Long Link Chain Stainless Steel - China Manufacturer Supplier, Factory

 

Overview of CLGR® DIN763 Stainless Steel Long Link Chain

Brand	CLGR®
Size	2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 8.5m, 9mm, 10mm, 11mm, 12mm, 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm and 32mm.
Material	Stainless Steel
Standard	DIN 763
Processing	Welded
Surface Finish	Highly Polishing
Note	NOT FOR OVERLOAD LIFTING

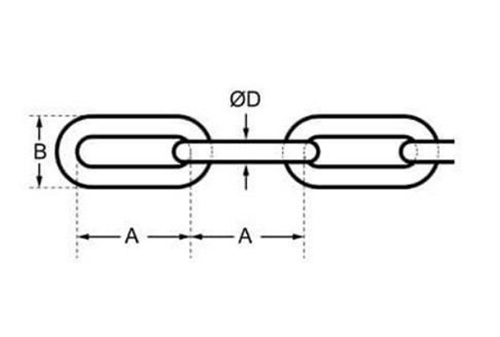

Specifications of CLGR® DIN763 Stainless Steel Long Link Chain

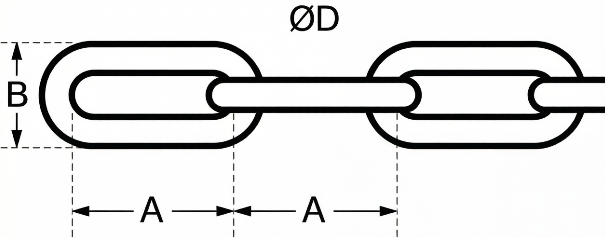

drawing-of-clgr®-din763-stainless-steel-long-link-chain

Part No.	ØD (mm)	A (mm)	B (mm)	SWL (Kg)
Part No.	ØD (mm)	A (mm)	B (mm)	SWL (Kg)
CRSS763C02	2	22	8	25
CRSS763C2.5	2.5	24	10	40
CRSS763C03	3	26	12	55
CRSS763C3.5	3.5	28	14	80
CRSS763C04	4	32	16	80
CRSS7630C4.5	4.5	34	18	100
CRSS763C05	5	35	20	128
CRSS763C5.5	5.5	38.5	22	195
CRSS763C06	6	42	24	208
CRSS763C07	7	49	28	300
CRSS763C08	8	52	32	400
CRSS763C8.5	8.5	56	34	460
CRSS763C09	9	59	36	530
CRSS763C10	10	65	40	630
CRSS763C11	11	72	44	790
CRSS763C12	12	78	48	940
CRSS763C13	13	82	52	1,000
CRSS763C16	16	100	64	1600
CRSS763C18	18	113	70	2,120
CRSS763C19	19	119	72	2,370
CRSS763C20	20	120	75	2,500
CRSS763C22	22	127	82	3,170
CRSS763C25	25	140	85	4,090
CRSS763C28	28	152	96	6,000
CRSS763C32	32	171	108	8,000
