CLGR® DIN763 Long Link Chain Galvanized, is mostly used for net weighting, for leadernets or seine nets.
CLGR® DIN763 Long Link Chain is a welded steel chain designed for general-purpose applications across engineering, industrial, agricultural, and marine sectors when used with compatible accessories. As a product from the leading link chain manufacturers, it is manufactured to DIN 763 specifications and features elongated links that provide flexibility and ease of use in dynamic environments. Hot dip galvanized and Electro-galvanized is available, both treatments enhance the chain's anti-corrosion properties, extending service life and maintaining structural integrity under demanding conditions.
Note: Do not use as a traction or lifting product!
Brand | CLGR® |
Size | 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 8.5mm, 9mm, 10mm, 11mm, 12mm, 13mm, 16mm, 18mm, 19mm, 20mm, 22mm, 25mm, 28mm, 32mm |
Material | Superior Mild Steel |
Standard | DIN 763 |
Processing | Welded |
Surface Finish | Zinc Plated / Hot Dip Galvanized |
Note | NOT FOR OVERLOAD LIFTING |

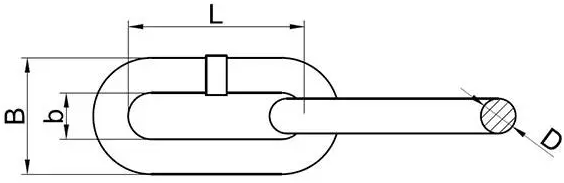

Part No. | Size(mm) | Pitch(mm) | Width(mm) | Working Load (KG) | Test Load (KN) | Breaking Load (KN) | |||
D | TOL | L | TOL | B | TOL | ||||
CR763C02 | 2.0 | ± 0.10 | 22 | ± 1.0 | 8 | ± 0.4 | 25 | 0.50 | 1.25 |
CR763C2.5 | 2.5 | ± 0.12 | 24 | ± 1.1 | 10 | ± 0.5 | 40 | 0.80 | 2.00 |
CR763C03 | 3.0 | ± 0.15 | 26 | ± 1.2 | 12 | ± 0.6 | 55 | 1.05 | 3.20 |
CR763C3.5 | 3.5 | ± 0.20 | 28 | ± 1.3 | 14 | ± 0.7 | 80 | 1.54 | 3.85 |
CR763C04 | 4.0 | ± 0.20 | 32 | ± 1.5 | 16 | ± 0.8 | 100 | 2.50 | 6.50 |
CR763C4.5 | 4.5 | ± 0.23 | 34 | ± 1.7 | 18 | ± 0.9 | 128 | 3.00 | 8.00 |
CR763C05 | 5.0 | ± 0.25 | 35 | ± 1.8 | 20 | ± 1.0 | 160 | 4.00 | 10.00 |
CR763C5.5 | 5.5 | ± 0.25 | 38.5 | ± 1.8 | 22 | ± 1.1 | 195 | 4.20 | 10.50 |
CR763C06 | 6.0 | ±0.30 | 42 | ± 2.0 | 24 | ± 1.2 | 200 | 5.00 | 12.00 |
CR763C07 | 7.0 | ± 0.35 | 49 | ± 2.5 | 28 | ± 1.4 | 300 | 7.50 | 19.00 |
CR763C08 | 8.0 | ± 0.40 | 52 | ± 2.5 | 32 | ± 1.6 | 400 | 10.00 | 25.00 |
CR763C8.5 | 8.5 | ± 0.40 | 56 | ± 2.8 | 34 | ± 1.7 | 460 | 10.20 | 25.50 |
CR763C09 | 9.0 | ± 0.50 | 59 | ± 3.0 | 36 | ± 1.8 | 530 | 10.50 | 32.00 |
CR763C10 | 10.0 | ± 0.50 | 65 | ± 3.2 | 40 | ± 2.0 | 630 | 16.00 | 40.00 |
CR763C11 | 11.0 | ± 0.50 | 72 | ± 3.4 | 44 | ± 2.0 | 790 | 15.80 | 47.50 |
CR763C12 | 12.0 | ± 0.60 | 78 | ± 3.6 | 48 | ± 2.3 | 940 | 18.80 | 56.50 |
CR763C13 | 13.0 | ± 0.65 | 82 | ± 4.0 | 52 | ± 2.5 | 1,000 | 25.00 | 63.00 |
CR763C16 | 16.0 | ± 0.80 | 100 | ± 5.0 | 64 | ± 3.2 | 1,600 | 40.00 | 100.00 |
CR763C18 | 18.0 | ± 0.90 | 113 | ± 5.2 | 70 | ± 3.2 | 2,120 | 42.30 | 127.00 |
CR763C19 | 19.0 | ± 0.90 | 119 | ± 5.6 | 72 | ± 3.4 | 2,370 | 47.30 | 142.00 |
CR763C20 | 20.0 | ± 1.00 | 120 | ± 6.0 | 75 | ± 3.8 | 2,500 | 50.00 | 160.00 |
CR763C22 | 22.0 | ± 1.20 | 127 | ± 6.0 | 82 | ± 4.0 | 3,170 | 63.30 | 190.00 |
CR763C25 | 25.0 | ± 1.30 | 140 | ± 6.6 | 85 | ± 4.2 | 4,090 | 81.70 | 245.00 |
CR763C26 | 26.0 | ±1.30 | 145.5 | ±6.6 | 88.5 | ±4.2 | 5,400 | 108.00 | 270.00 |
CR763C28 | 28.0 | ± 1.40 | 152 | ± 7.0 | 96 | ± 4.7 | 6,000 | 120.00 | 300.00 |
CR763C32 | 32.0 | ± 1.60 | 171 | ± 7.8 | 108 | ± 5.2 | 8,000 | 160.00 | 400.00 |
