CLGR® AC-14 Stockless HHP Anchor for Marine - The China Manufacturer Supplier, Factory

Name: CLGR® AC-14 Stockless HHP Anchor for Marine - The China Manufacturer Supplier, Factory
Brand: CLGR®

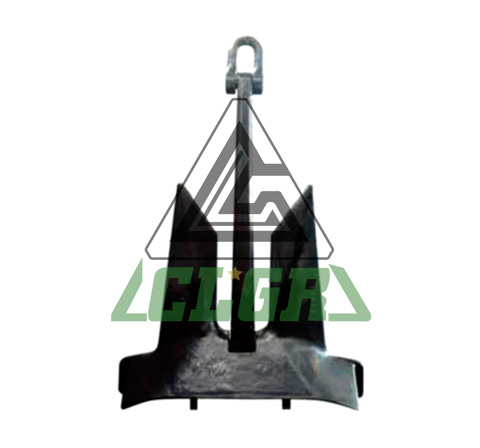

The AC-14 HHP anchor, also known as Stockless AC-14 Anchor.

It stands out as a high holding power (HHP) solution, designed with an optimal weight-to-performance ratio. Compared to conventional anchors, it offers a 25% weight reduction, which translates to less onboard weight and more storage space. We provide both standard and fully balanced versions, assisting you in selecting the ideal AC-14 anchor for your specific needs.

Renowned for its versatility, the AC-14 anchor is suitable for merchant fleets, shipping, and the offshore industry. As a "snug" stowing stockless marine bow anchor, it features a cast steel construction with a black or galvanized surface finish. This design ensures reliable performance while minimizing space requirements, making it a practical choice for vessels and offshore applications that demand high holding power.

To Get A Quote >

CLGR® AC-14 Stockless HHP Anchor for Marine - The China Manufacturer Supplier, Factory

Overview of CLGR® AC-14 HHP Anchor for Marine

Brand	CLGR®
Type	High Holding Power AC-14 HHP Anchor
Material	Steel
Surface Finish	Black Bituminous Painting, Hot Dip Galvanized
Origin	China

Overview of CLGR® AC-14 HHP Anchor for Marine

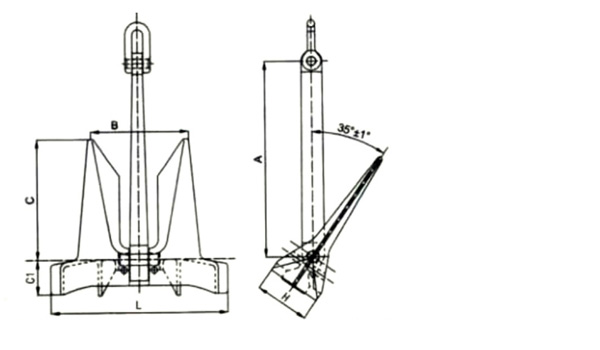

Part No.	Nominal Weight (KG)	Size (mm)
Part No.	Nominal Weight (KG)	A	L	H	C	C1	B
CRAC-1401	30	491	440	136	299	85	236
CRAC-1402	45	590	529	164	359	99	283
CRAC-1403	75	677	605	188	411	120	324
CRAC-1404	94	718	643	199	437	132	344
CRAC-1405	113	745	666	207	452	135	357
CRAC-1406	135	821	711	228	500	143	394
CRAC-1407	180	904	737	251	550	157	434
CRAC-1408	225	974	874	270	593	169	468
CRAC-1409	270	1033	879	287	630	180	497
CRAC-1410	315	1090	978	302	663	189	524
CRAC-1411	360	1139	1021	316	694	196	547
CRAC-1412	428	1194	1072	331	727	208	574
CRAC-1413	495	1251	1122	347	762	216	602
CRAC-1414	585	1390	1221	378	823	236	654
CRAC-1415	675	1398	1254	387	851	242	672
CRAC-1416	765	1483	1304	404	885	264	698
CRAC-1417	865	1520	1363	423	925	267	729
CRAC-1418	968	1590	1425	440	968	275	764
CRAC-1419	1080	1661	1492	461	993	282	784
CRAC-1420	1193	1660	1580	465	1011	287	798
CRAC-1421	1305	1761	1580	488	1072	305	846
CRAC-1422	1440	1795	1610	497	1093	311	862
CRAC-1423	1575	1855	1665	514	1130	321	892
CRAC-1424	1710	1900	1705	526	1157	329	913
CRAC-1425	1845	1940	1741	538	1182	336	933
CRAC-1426	1980	1977	1774	548	1203	342	950
CRAC-1427	2128	2068	1809	559	1227	349	969
CRAC-1428	2295	2089	1874	579	1272	362	1004
CRAC-1429	2475	2150	1929	596	1309	373	1033
CRAC-1430	2655	2201	1975	610	1340	382	1057
CRAC-1431	2835	2253	2022	624	1372	390	1083
CRAC-1432	3038	2302	2066	638	1402	399	1107
CRAC-1433	3240	2352	2110	652	1432	407	1130
CRAC-1434	3443	2400	2154	665	1462	415	1154
CRAC-1435	3668	2451	2200	680	1493	424	1177
CRAC-1436	3938	2510	2252	696	1529	434	1208
CRAC-1437	4208	2549	2303	711	1563	444	1234
CRAC-1438	4500	2624	2355	725	1598	454	1261
CRAC-1439	4838	2688	2412	747	1637	465	1292
CRAC-1440	5173	2749	2467	762	1674	476	1321
CRAC-1441	5515	2808	2520	778	1710	486	1350
CRAC-1442	5850	2864	2570	794	1744	496	1376
CRAC-1443	6225	2923	2623	810	1780	506	1405
CRAC-1444	6295	2970	2665	823	1808	514	1428
CRAC-1445	6975	3042	2730	843	1853	527	1462
CRAC-1446	7425	3102	2782	859	1888	537	1490
CRAC-1447	7875	3160	2837	876	1925	547	1520
CRAC-1448	8275	3221	2890	893	1961	558	1548
CRAC-1449	8725	3278	2942	909	1996	567	1576
CRAC-1450	9225	3333	2991	924	2030	577	1602
CRAC-1451	9675	3386	3039	939	2062	586	1625
CRAC-1452	10125	3438	3085	953	2094	595	1658
CRAC-1453	10575	3487	3130	967	2124	604	1677
CRAC-1454	11025	3532	3174	981	2158	612	1700
CRAC-1455	11550	3597	3244	996	2184	622	1727
CRAC-1456	12075	3646	3272	1011	2220	631	1753
CRAC-1457	12675	3702	3325	1027	2256	641	1781
CRAC-1458	13350	3770	3383	1045	2296	653	1812
CRAC-1459	14100	3839	3445	1064	2338	665	1846
CRAC-1460	15000	3919	3517	1086	2387	678	1894
CRAC-1461	16125	4015	3603	1113	2445	695	1930
CRAC-1462	17250	4106	3685	1138	2501	711	1974
CRAC-1463	18375	4194	3763	1163	2554	726	2016
CRAC-1464	19500	4278	3839	1186	2605	740	2056
