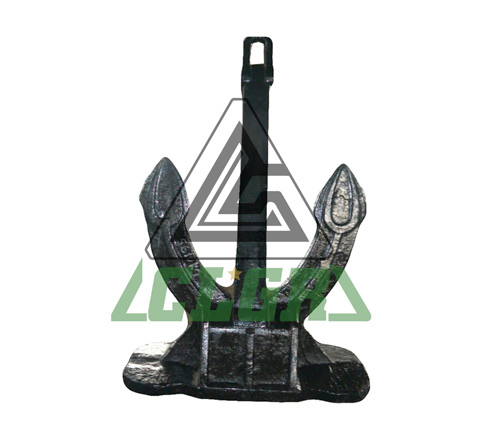

CLGR® Marine Boat Spek Anchor Type M, Supplier, China Anchor Manufacturer

Name: CLGR® Marine Boat Spek Anchor Type M, Supplier, China Anchor Manufacturer
Brand: CLGR®

CLGR® Marine Boat Spek Anchors Type M are a category of stockless anchors.

A defining structural feature of Spek anchors is the presence of an anchor crown plate and reinforcing ribs at the anchor crown. The anchor head can readily turn toward the ground, exhibiting superior stability.

Additionally, when retrieving the anchor, its flukes remain naturally upward and overturn instantly upon contact with the hull, thus preventing damage to the hull plate.

The "M" Spek anchor is an anchor type utilized in marine scenarios, commonly for anchoring boats and ships. It is renowned for its strength and reliability and finds application in diverse conditions, ranging from calm waters to rough seas.

The "M" Spek anchor is engineered to have a fluke that penetrates the seafloor, ensuring a secure hold.

To Get A Quote >

CLGR® Marine Boat Spek Anchor Type M, Supplier, China Anchor Manufacturer

Overview of CLGR® Marine Boat Spek Anchor Type M

Brand	CLGR®
Material	Casting Steel
Type	Spek Anchor Type M
Weight	80kg-11,700kg
Categories	Anchor, Marine Equipment
Finish	Blacking Bitumen Painting, Hot Dip Galvanized
Application	Used for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.

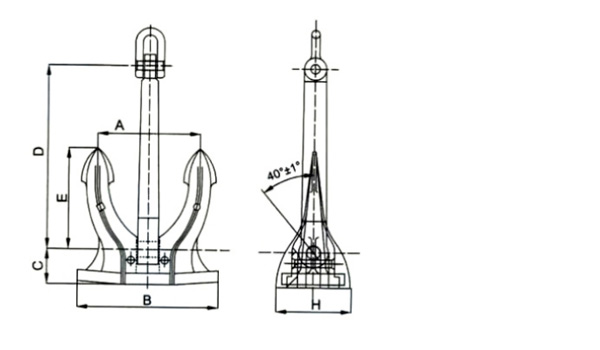

Specifications of CLGR® Marine Boat Spek Anchor Type M

Part No.	NOMINAL WEIGHT (KG)	SIZE（mm）
Part No.	NOMINAL WEIGHT (KG)	A	B	C	D	E	H
CRSAM80	80	339	468	108	611	336	222
CRSAM105	105	371	512	120	669	336	242
CRSAM135	135	345	512	140	669	368	254
CRSAM240	240	445	613	182	800	440	304
CRSAM300	300	527	727	160	949	522	334
CRSAM360	360	527	727	189	949	522	358
CRSAM420	420	590	813	188	1062	584	385
CRSAM480	480	590	813	211	1062	584	395
CRSAM570	570	652	900	208	1175	647	428
CRSAM660	660	653	900	208	1175	647	428
CRSAM780	780	725	1000	231	1305	718	473
CRSAM900	900	725	1000	264	1215	718	485
CRSAM1020	1020	793	1093	252	1428	785	518
CRSAM1140	1140	793	1093	277	1428	785	530
CRSAM1290	1290	858	1183	273	1544	850	561
CRSAM1440	1440	858	1183	299	1544	850	573
CRSAM1590	1590	920	1288	315	1655	911	604
CRSAM1740	1740	920	1288	315	1655	911	611
CRSAM1920	1920	980	1350	332	1761	970	640
CRSAM2100	2100	980	1350	337	1761	970	650
CRSAM2280	2280	1083	1430	335	1866	1027	678
CRSAM2460	2460	1083	1430	351	1866	1027	668
CRSAM2640	2640	1090	1500	347	1959	1079	712
CRSAM2850	2850	1190	1500	360	1959	1079	722
CRSAM3060	3060	1144	1578	395	2050	1133	748
CRSAM3300	3300	1144	1578	387	2050	1133	760
CRSAM3540	3540	1202	1676	383	2159	1189	785
CRSAM3780	3780	1202	1666	405	2159	1189	797
CRSAM4050	4050	1257	1732	400	2258	1244	821
CRSAM4320	4320	1257	1732	442	2258	1244	831
CRSAM4590	4590	1257	1732	424	2258	1344	841
CRSAM4890	4890	1333	1846	425	2405	1325	874
CRSAM5250	5250	1383	1846	430	2405	1325	888
CRSAM5610	5610	1383	1974	431	2405	1418	936
CRSAM6000	6000	1432	1974	437	2577	1418	936
CRSAM6450	6450	1432	2112	463	2577	1418	980
CRSAM6900	6900	1533	2112	488	2757	1518	1001
CRSAM7350	7350	1533	2112	498	2757	1518	1001
CRSAM7800	7800	1621	2234	489	2757	1518	1015
CRSAM8300	8300	1621	2234	517	2916	1605	1069
CRSAM8700	8700	1621	2234	517	2916	1605	1069
CRSAM9000	9000	1726	2380	520	3015	1709	1128
CRSAM10500	10500	1726	2380	580	3105	1709	1128
CRSAM11100	11100	1726	2380	590	3105	1709	1138
CRSAM11700	11700	1819	2507	554	3273	1801	1188
CRSAM12300	12300	1819	2507	580	3273	1801	1188
CRSAM12900	12900	1819	2507	607	3273	1801	1200
CRSAM13500	13500	1904	2624	577	3425	1885	1243
CRSAM14100	14100	1904	2624	607	3425	1885	1243
CRSAM14700	14700	1904	2624	607	3425	1885	1243
CRSAM15400	15400	2018	2782	612	3632	1985	1318
CRSAM16100	16100	2018	2782	638	3632	1998	1318
CRSAM16900	16900	2018	2782	638	3632	1998	1318
CRSAM17800	17800	2018	2782	689	3632	1998	1343
CRSAM18800	18800	2018	2782	689	3632	1998	1318
CRSAM20000	20000	2170	2990	632	3905	2148	1416
