CLGR® Beldt Stockless Anchor – China Ship Anchor Manufacturer

Name: CLGR® Beldt Stockless Anchor – China Ship Anchor Manufacturer
Brand: CLGR®

The Baldt Anchor is a high-performance stockless anchor crafted from durable steel, featuring either black tarred painting or hot-dip galvanized (H.D.G.) surface treatment for enhanced corrosion resistance.

The Baldt Anchor Its stockless construction allows for effortless handling and compact storage, eliminating the need for additional deck space when retracted.

Designed to accommodate vessels of various sizes, its weight ranges from 160kg to 40,000 kg, making it suitable for diverse maritime applications.

The anchor's two large flukes work in unison to penetrate and grip sand or mud seabeds effectively, ensuring superior holding power and stability during operation.

To Get A Quote >

Overview of CLGR® Beldt Stockless Anchor

Brand	CLGR®
Material	Casting Steel
Function	Ship Mooring
Type	Beldt Stockless Anchor
Surface Finish	Black Painting, Hot Dip Galvanized
Origin	China

Specifications of CLGR® Beldt Stockless Anchor

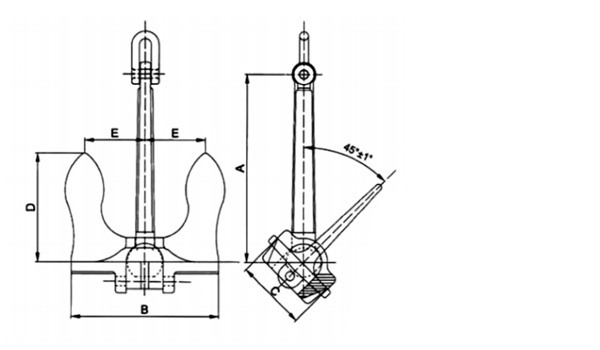

Part No.	Nominal Weight (LBS)	Dimensions（mm）
Part No.	Nominal Weight (LBS)	A	B	C	D	E
CRBEL160	160	634	404	219	336	175
CRBEL200	200	685	457	241	366	191
CRBEL250	250	749	524	269	404	210
CRBEL300	300	812	590	296	442	230
CRBEL400	400	812	654	330	482	250
CRBEL500	500	900	673	336	530	288
CRBEL750	750	965	770	407	584	308
CRBEL1000	1000	1067	854	457	640	348
CRBEL1250	1250	1165	923	475	720	370
CRBEL1500	1500	1232	1005	515	748	392
CRBEL2000	2000	1370	1092	558	848	430
CRBEL2100	2100	1370	1092	558	848	436
CRBEL2500	2500	1473	1136	568	848	448
CRBEL3000	3000	1625	1194	648	912	483
CRBEL3500	3500	1625	1340	698	1003	500
CRBEL4000	4000	1734	1354	705	1054	518
CRBEL4500	4500	1794	1440	735	1066	563
CRBEL5000	5000	1930	1460	652	1130	598
CRBEL6000	6000	1930	1613	844	1194	642
CRBEL7000	7000	2082	1691	882	1263	668
CRBEL8000	8000	2265	1691	894	1276	668
CRBEL9000	9000	2438	1784	924	1314	695
CRBEL9500	9500	2438	1851	957	1392	710
CRBEL10000	10000	2438	1918	990	1470	725
CRBEL11000	11000	2438	1950	1016	1473	778
CRBEL12000	12000	2438	1950	1016	1473	778
CRBEL13000	13000	2489	1949	1016	1473	799
CRBEL14000	14000	2616	2045	1118	1524	818
CRBEL15000	15000	2616	2184	1168	1600	875
CRBEL16000	16000	2738	2184	1168	1651	875
CRBEL17200	17200	2738	2184	1222	1660	875
CRBEL18000	18000	2850	2240	1232	1667	888
CRBEL20000	20000	2840	2440	1270	1866	990
CRBEL25000	25000	3048	2616	1365	1968	990
CRBEL30000	30000	3251	2794	1454	2096	1052
CRBEL35000	35000	3429	2946	1524	2210	1107
CRBEL40000	40000	3556	3073	1600	2311	1157
