CLGR® Wide D Shackle Captive Pin Stainless Steel

Name: CLGR® Wide D Shackle Captive Pin Stainless Steel
Brand: CLGR®

CLGR® Wide D Shackle Captive Pin Stainless Steel also known as Stainless steel wide D shackle, Marine wide D shackle and Electrophoretic coating 316 stainless steel wide D shackle with captive pin for marine rigging.

Certified for superior performance in demanding applications, these Wide D rated stainless steel shackles feature a captive pin that ensures secure connection. Crafted from AISI 304/316 stainless steel through forging process, these rated stainless steel shackles offer exceptional corrosion resistance for marine, offshore, and industrial environments. These rated stainless steel shackles undergo highly polished for enhanced durability in harsh conditions.

Ideal for sailing, rigging, and lifting systems where safety is paramount, the wide D-shape design of these rated stainless steel shackles provides increased bearing surface and accommodates larger diameter connections while the permanently attached pin ensures secure, reliable performance.

The captive pin mechanism eliminates the risk of loosening under high vibration or dynamic loads, making the rated stainless steel shackles perfect for permanent installations and safety-critical applications.

Available in sizes from 5mm to 12mm, the European-type rated stainless steel shackles combine advanced safety features with excellent corrosion resistance.

Custom specifications and identification markings can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

 

Overview of Wide D Shackle Captive Pin Stainless Steel

Brand	CLGR®
Origin	China
Material	Stainless steel 304 or 316 Wide D shackle
Pin	Captive Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	5mm, 6mm, 8mm, 10mm, 12mm

Specifications of Wide D Shackle Captive Pin Stainless Steel

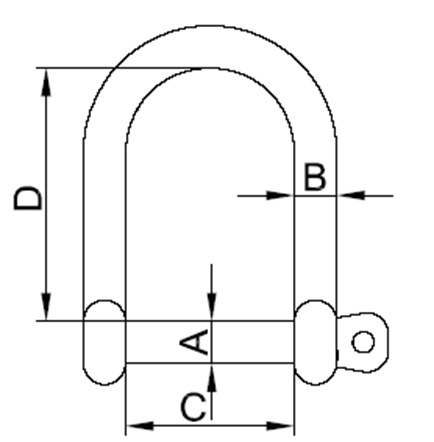

Part No.	B	C	D	A	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSWDSCP05	5	25	245	44	82
CRSSWDSCP06	6	24	360	53	119
CRSSWDSCP08	8	28	360	71	213
CRSSWDSCP10	10	40	600	89	336
CRSSWDSCP12	12	50	720	108	494
