CLGR® Round Pin Chain Shackle U.S. Type

Name: CLGR® Round Pin Chain Shackle U.S. Type
Brand: CLGR®

CLGR® Round Pin Chain Shackle U.S. Type also known as Chain shackle with round pin and US type chain shackle.

Certified to U.S. Federal Specifications, this round pin chain shackle is engineered for superior strength and safety in heavy-duty lifting, rigging, and marine applications.

Constructed with a superior carbon steel body and alloy steel screw pin, it features both 6:1 and 4:1 safety factor options and is manufactured through drop forging, quenching, and tempering for maximum durability.

The shackle offers hot-dip galvanized, powder-coated, or zinc-plated finishes for exceptional corrosion resistance in demanding offshore, construction, and industrial environments.

Its round pin design ensures secure, reliable connections for various lifting and rigging operations.

Available in sizes from 1/4" to 4" to accommodate diverse project requirements. Custom specifications and markings are supported upon request.

To Get A Quote >

clgr round pin chain shackle u.s. type dee shackle

Overview of Round Pin Chain Shackle U.S. Type

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Body: Super Carbon Steel Screw Pin: Alloy Steel / Super Carbon Steel
Safety Factor	6 : 1/ 4 : 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin: Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8” 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 3-1/2”, 4”
Tips	Special specification and marks can be made according to customers' requirements

Specifications of Round Pin Chain Shackle U.S. Type

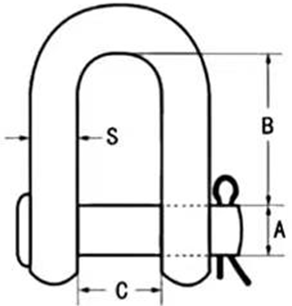

drawing-clgr-of-round-pin-chain-shackle-u.s.-type-china-supplier

Part No.	Size	Pin Diameter	Dimensions in inches	WLL	Weight
Part No.	S	A(in)	C	Tons	lbs
CR-215-RPDS-1/4	1/4″	0.31	0.91	0.47	0.5
CR-215-RPDS-5/16	5/16″	0.38	1.07	0.53	0.75
CR-215-RPDS-3/8	3/8″	0.44	1.28	0.66	1
CR-215-RPDS-7/16	7/16″	0.5	1.48	0.75	1.5
CR-215-RPDS-1/2	1/2″	0.63	1.66	0.81	2
CR-215-RPDS-5/8	5/8″	0.75	2.04	1.06	3.25
CR-215-RPDS-3/4	3/4″	0.88	2.4	1.25	4.75
CR-215-RPDS-7/8	7/8″	1	2.86	1.44	6.5
CR-215-RPDS-1	1″	1.13	3.24	1.69	8.5
CR-215-RPDS-1-1/8	1 1/8″	1.25	3.61	1.81	9.5
CR-215-RPDS-1-1/4	1 1/4″	1.38	3.97	2.03	12
CR-215-RPDS-1-3/8	1 3/8″	1.5	4.43	2.25	13.5
CR-215-RPDS-1-1/2	1 1/2″	1.63	4.87	2.38	17
CR-215-RPDS-1-3/4	1 3/4″	2	5.82	2.88	25
