CLGR® Lifting Eye Hook with Latch DIN689

Name: CLGR® Lifting Eye Hook with Latch DIN689
Brand: CLGR®

CLGR® Lifting Eye Hook with Latch DIN689 also known as DIN 689 lifting eye hook, Eye hook with safety latch, DIN689 certified lifting hook and Electric galvanized DIN 689 lifting eye hook with safety latch 4:1 safety factor.

Certified to DIN 689 standard, this heavy-duty eye hoist hook is drop forged from superior carbon steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for demanding lifting applications.

Featuring an integrated spring-loaded safety latch, it prevents accidental release during dynamic operations, ensuring secure load retention in various industrial environments. Available in self-colored or electric galvanized finish options for enhanced corrosion protection, it is clearly marked with chain size, lashing capacity, grade, and batch number for full traceability.

Designed for use with Grade 70 chain systems, it is ideal for rigging, construction, marine, and general industrial lifting scenarios where safety and reliability are critical.

Available in working load capacities from 250 kg to 3000 kg, this DIN 689-compliant eye hoist hook combines robust construction with operational safety.

Custom sizes and specifications can be provided to meet unique project requirements.

To Get A Quote >

lifting eye hook with latch din689 china supplier

lifting eye hook with latch din689 china supplier for sale

lifting eye hook with latch din689 china manufacturer supplier

lifting eye hook with latch din689 china supplier rigging hook

 

Overview of Lifting Eye Hook with Latch DIN689

Brand	CLGR®
Origin	China
Technical Notes	Conform to DIN689
Material	Superior Carbon Steel
Processing	Drop Forged, Quenched & Tempered
Finish	Self-Colored, Electric Galvanized
Size	250kgs, 500kgs, 750kgs, 1000kgs, 1600kgs, 2500kgs, 3000kgs
Safety Factor	4:1
Packing	In cartons, then pallets, or as customer's requests.

Specifications of Lifting Eye Hook with Latch DIN689

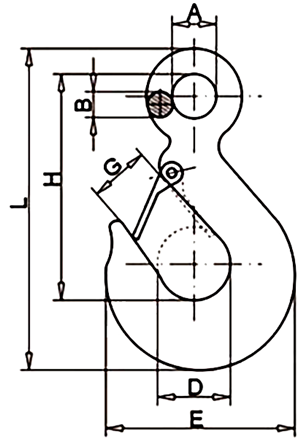

Part No.	Size	W.L.L [kg]	A [mm]	B [mm]	D [mm]	E [mm]	G [mm]	H [mm]	L [mm]
CRDIN689EH01	250KG	250	13	7.5	23	54	15	64	89
CRDIN689EH02	500KG	500	16	10	30.5	72	22	83.5	118
CRDIN689EH03	1000KG	1000	20	13.5	40	98	25	114	162
CRDIN689EH04	1500KG	1500	27	13	35	93	23	103	142
CRDIN689EH05	1600KG	1600	26	17	47	116.5	31	136	190
CRDIN689EH06	3000KG	3000	38	19	46	125	26.5	145	204
