CLGR® High Test Eye Grab Hook Grade 43

Name: CLGR® High Test Eye Grab Hook Grade 43
Brand: CLGR®

CLGR® High Test Eye Grab Hook Grade 43 also known as Shortening grab hook and Grade 43 eye grab hook.

Certified to U.S. Federal Specification, this high-test eye grab hook is forged from superior carbon steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for exceptional strength and durability in demanding industrial applications.

Featuring a narrow throat design, it securely grabs and locks onto chain links to prevent slipping, making it ideal for chain shortening, rigging, and load-securing operations.

The hook offers multiple finish options—powder coated, hot-dipped galvanized, electric galvanized, or self-color—customized to meet specific environmental and corrosion resistance requirements. Designed for use with Grade 43 high-test chain, it ensures reliable performance in lifting, towing, logging, and industrial transport scenarios.

Available in sizes from 1/4" to 3/4", this Grade 43 grab hook combines robust construction with functional efficiency. Custom finishes and markings can be provided to align with unique project requirements.

Note: This product is not rated for overhead lifting applications.

To Get A Quote >

clgr eye grab hook grade 43 high test china supplier

eye grab hook grade 43 high test china manufacturer

clgr eye grab hook grade 43 high test for sale

eye grab hook grade 43 high test china factory

 

Overview of High Test Eye Grab Hook Grade 43

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Superior Carbon Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”
Tips	Customized according to customers' requirements

Specifications of High Test Eye Grab Hook Grade 43

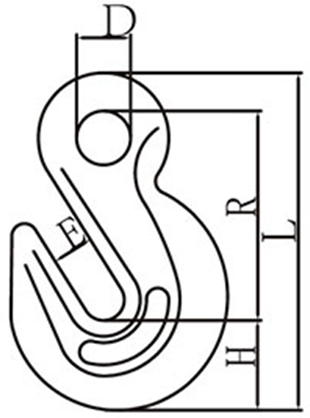

drawing-clgr-of-high-test-eye-grab-hook-grade-43

Part No.	Weight lbs	WLL (lbs)	R±1	H±1	D±0.5	E±0.5	L±1
			R±1	H±1	D±0.5	E±0.5	L±1
			(mm)
CR-43-EGH-1/4	0.28	2600	50.5	18.5	13	9	77
CR-43-EGH-5/16	0.45	3900	56.8	22.7	14	11.5	89
CR-43-EGH-3/8	0.79	5400	65.2	28.3	17	13	104
CR-43-EGH-7/16	1.26	7200	77	33.5	20	15.5	122
CR-43-EGH-1/2	1.75	9200	85.5	37.5	22	17	135
CR-43-EGH-5/8	3.25	13000	116	45	30	21	180
CR-43-EGH-3/4	5.94	20200	133.5	55	35	25	211

Warning!!!

Do not exceed the working load limit.

Not to be used for overhead lifting.

Make sure the hook size and chain diameter are compatible before attaching to load.

Also available in Eye Grab Hook Grade 70.
