CLGR® Alloy Eye Grab Hook Grade 70

Name: CLGR® Alloy Eye Grab Hook Grade 70
Brand: CLGR®

CLGR® Alloy Eye Grab Hook Grade 70 also known as G70 eye grab hook and Hot dipped galvanized G70 eye grab hook with narrow throat for transport chain.

Certified to U.S. Federal Specification, this heavy-duty eye grab hook is forged from super alloy steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for exceptional strength and impact resistance in demanding industrial applications.

Featuring a narrow throat design, it securely grabs and locks onto Grade 70 chain links to prevent slipping, making it ideal for chain shortening, heavy towing, and load-securing operations.

The hook offers multiple finish options—powder coated, hot-dipped galvanized, electric galvanized, or self-color—customized to meet specific environmental and corrosion resistance requirements.

Designed exclusively for use with Grade 70 chain, it ensures reliable performance in transport, logistics, construction, and industrial scenarios.

Available in sizes from 1/4" to 3/4" , this Grade 70 grab hook combines robust construction with operational efficiency.

Custom finishes and markings can be provided to align with unique project requirements.

Note: This product is not rated for overhead lifting applications.

To Get A Quote >

clgr eye grab hook grade 70 alloy steel china supplier

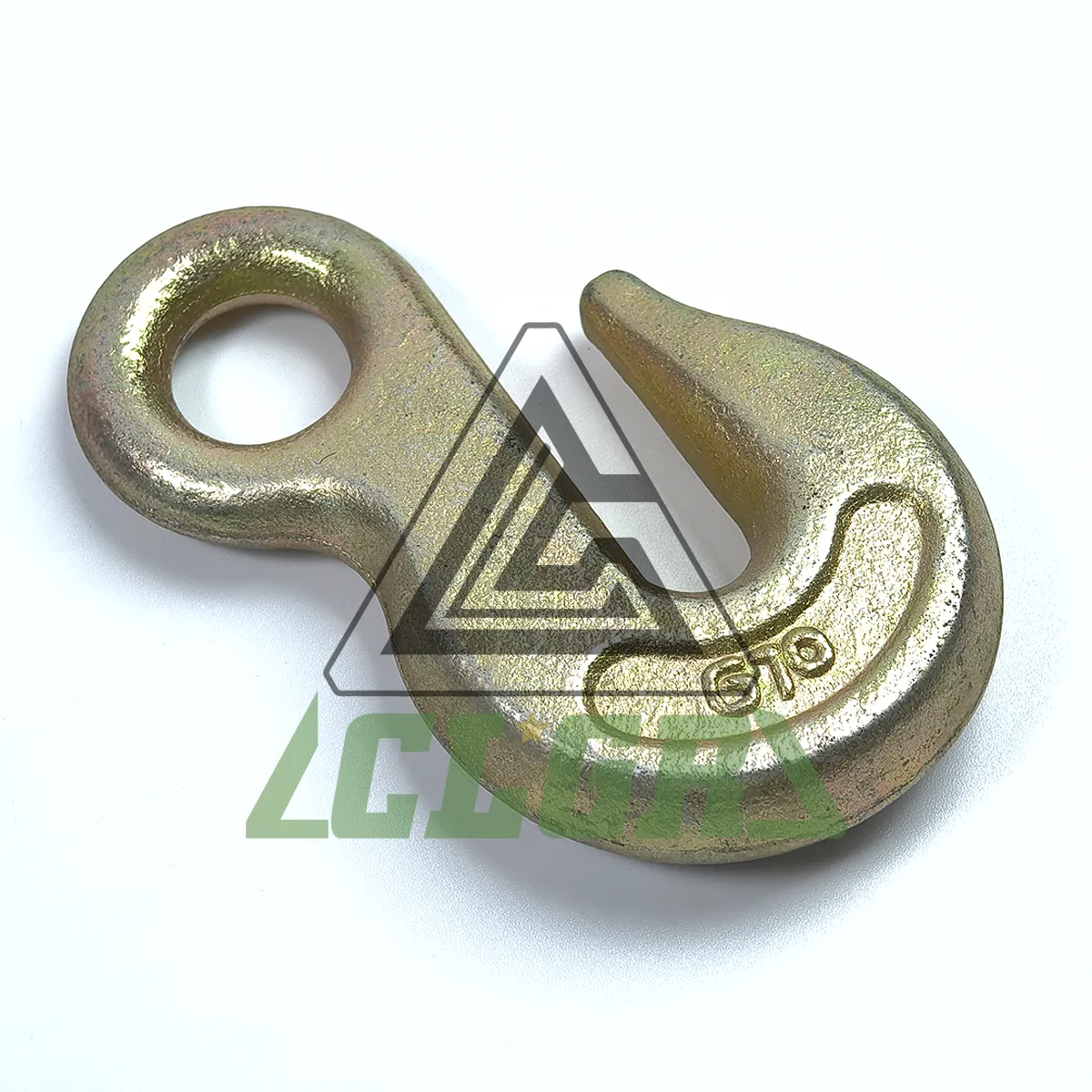

clgr eye grab hook grade 70 alloy steel for sale

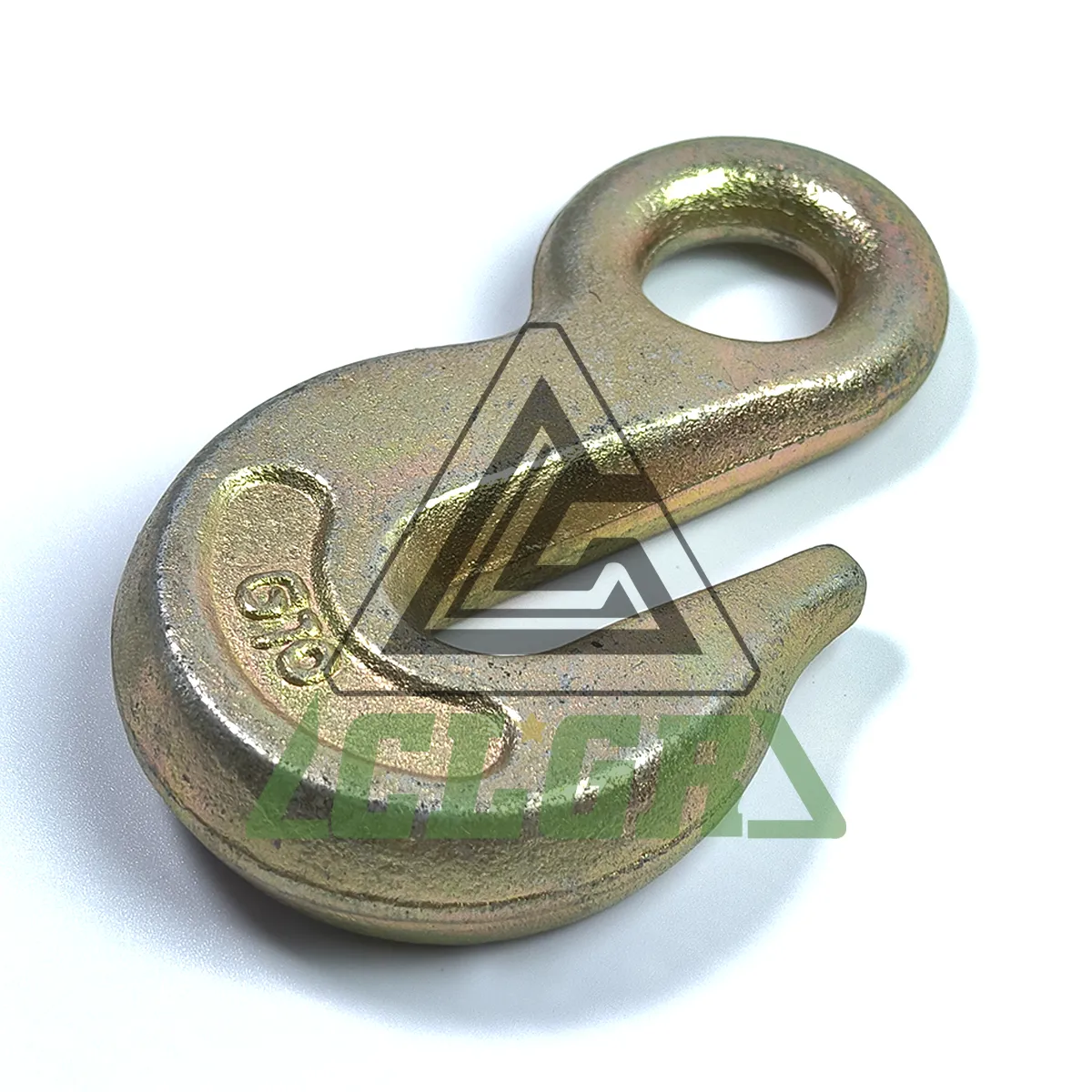

clgr eye grab hook grade 70 alloy steel china manufacturer

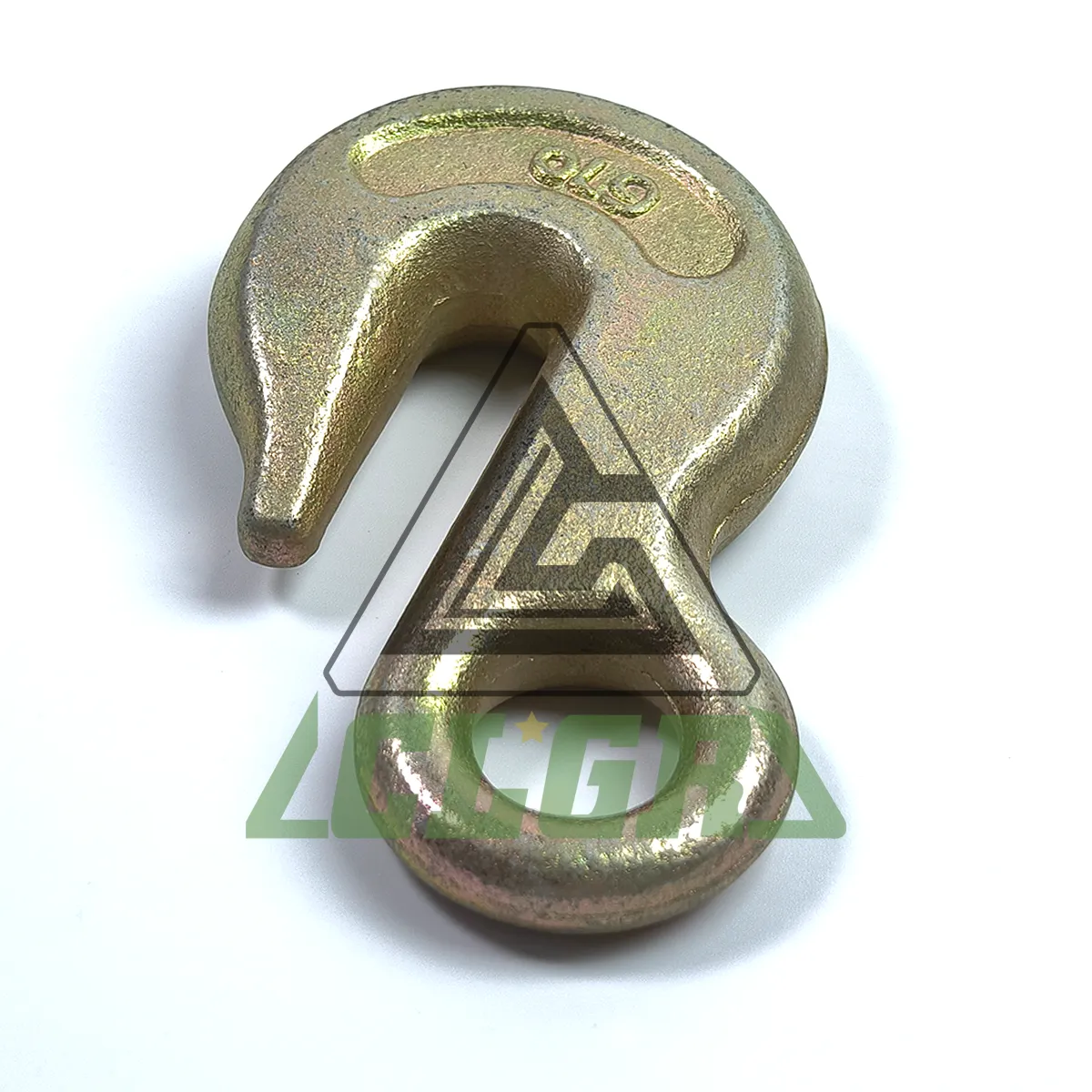

clgr eye grab hook grade 70 alloy steel china

 

Overview of Alloy Eye Grab Hook Grade 70

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”
Tips	Customized according to customers’ requirements

Specifications of Alloy Eye Grab Hook Grade 70

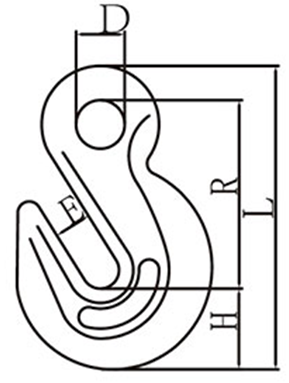

drawing-clgr-of-alloy-eye-grab-hook-grade-70-china-supplier

Part No.	Weight lbs	WLL (lbs)	R±1 (mm)	H±1 (mm)	D±0.5 (mm)	E±0.5 (mm)	L±1 (mm)
Part No.	Weight lbs	G70	R±1 (mm)	H±1 (mm)	D±0.5 (mm)	E±0.5 (mm)	L±1 (mm)
LG70EGH1/4	0.28	3150	50.5	18.5	13	9	77
LG70EGH5/16	0.45	4700	56.8	22.7	14	11.5	89
LG70EGH3/8	0.79	6600	65.2	28.3	17	13	104
LG70EGH7/16	1.26	8750	77	33.5	20	15.5	122
LG70EGH1/2	1.75	11300	85.5	37.5	22	17	135
LG70EGH5/8	3.25	15800	116	45	30	21	180
LG70EGH3/4	5.94	24700	133.5	55	35	25	211
