CLGR® Grade 70 Clevis Grab Hook with Wing Australia Standard

Name: CLGR® Grade 70 Clevis Grab Hook with Wing Australia Standard
Brand: CLGR®

CLGR® Grade 70 Clevis Grab Hook with Wing Australia Standard also known as clevis winged shortening grab hook, Clevis winged grab hook, G70 grab hook Australia, Grab hook with handle wings and Shortening grab hook with wings.

Certified to AS 4344 Australia Standard, this heavy-duty clevis winged grab hook is drop forged from superior alloy steel and undergoes quenched and tempered for demanding transport and load restraint applications.

Integrated wings enable easy manual handling and tightening, forming secure connections with Grade 70 transport chain for full lashing capacity and stable load transport. It comes with electric galvanized or self-color finishes for enhanced corrosion resistance.

Designed with a built-in cradle to maximize securing efficiency, it is ideal for heavy-duty transport, trucking, logistics, and cargo restraint scenarios where safety and reliability are critical.

Available sizes in 6mm, 8mm, 10mm, 13mm with working load limits ranging from 2300kgs to 9000kgs, this Grade 70 winged grab hook combines robust construction with operational efficiency.

Custom sizes and specifications can be provided to meet unique project requirements.

To Get A Quote >

clevis winged shortening grab hook china supplier

shortening grab hook with wings china factory

clevis grab hook with wing grade 70 australia standard

shortening grab hook with wings china manufacturer

 

Overview of Grade 70 Clevis Grab Hook with Wing Australia Standard

Brand	CLGR®
Origin	China
Technical Notes	Shortening grab hook Comply with AS 4344
Material	Superior Alloy Steel
Processing	Drop Forged, Quenched and Tempered
Finish	Self-Colored, Electric Galvanized
Size	6mm, 8mm, 10mm, 13mm
L.C.	2300KGS, 3800KGS, 6000KGS, 9000KGS
Tips	Suitable for use with Grade 70 chain.

Specifications of Grade 70 Clevis Grab Hook with Wing Australia Standard

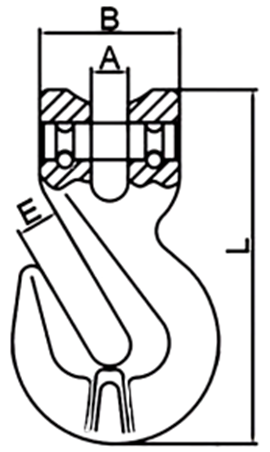

Part No.	N.W	L.C.	B.L	DIMENSIONS
Part No.	(KG)			A(mm)	B(mm)	E(mm)	L(mm)
CRGHW-6	0.21	2300	4600	9.5	26	9.5	83
CRGHW-8	0.35	3800	7600	12	35	12	99
CRGHW-10	0.57	6000	12000	13.5	36	13.5	115
CRGHW-13	1.25	9000	18000	18	48.5	18	152

Australia Standard Hooks are also available in:

① Grade 70 Clevis Slip Hook,

② Grade 70 Clevis Slip Hook w/Latch,

③ Grade 70 Clevis Grab Hook without cradle.

Bulk Products Photos of Grade 70 Clevis Grab Hook with Wing Australia Standard
