CLGR® G80 Clevis Shortening Grab Hook, also known as Clevis Shortening Grab Hook W/ Wings and G80 Cradle Clevis Grab Hook.
Clevis grab hooks are used for shortening the chain legs of a sling. They are attached to the master link via a clevis attachment, offering the flexibility to shorten chain slings and enabling back - hooking.
These grab hooks are designed with supporting lugs, ensuring that there is no reduction in the working load limit. The clevis itself is engineered for the easy connection of chain.
Commonly used in construction and engineering, material handling, transport and logistics, industrial manufacturing.
| Brand | CLGR® |
| Chain Size | 6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm |
| Material | Superior Alloy Steel |
| Standard | European Type |
| Safety Factor | 4: 1 |
| Processing | Drop Forged / Heat Treatment |
| Surface Finish | Power Coating |
| Note | Special specifications and marks can be customized |

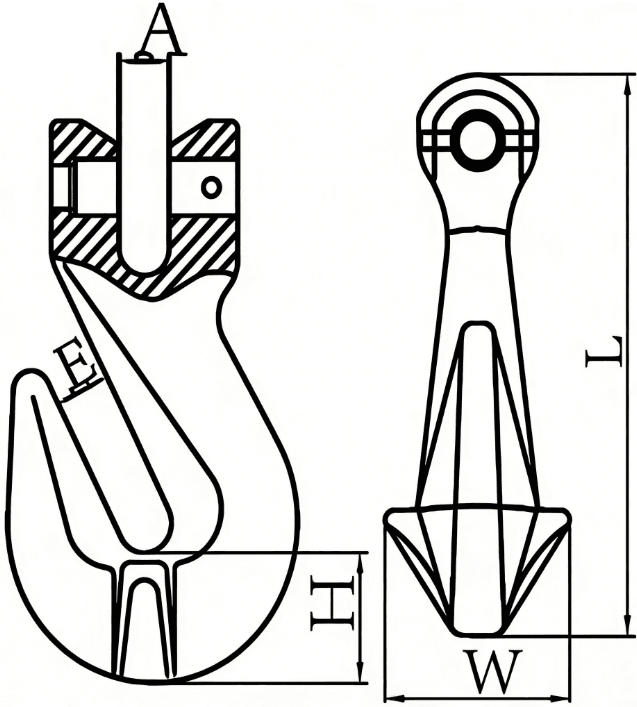

Part No. | U.W. | W.L.L. | B.L | E | A | H | W | L |
KGS | TONS | TONS | MM | |||||
8CRCGH06 | 0.25 | 1.12 | 4.48 | 8.3 | 8 | 17.7 | 26.7 | 75 |
8CRCGH7/8 | 0.32 | 2 | 8 | 11 | 9.5 | 18.5 | 33.5 | 89 |
8CRCGH10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
8CRCGH13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.5 | 57.5 | 163.5 |
8CRCGH16 | 2.8 | 8 | 32 | 19 | 18.5 | 42.5 | 74 | 183.5 |
8CRCGH20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
8CRCGH22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
8CRCGH26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |
