CLGR® Grade 80 Eye Grab Hook US Type for Lifting

Name: CLGR® Grade 80 Eye Grab Hook US Type for Lifting
Brand: CLGR®

CLGR® Grade 80 Eye Grab Hook US Type, also known as G80 Eye Shortening Grab Hook, and Lifting Eye Shortening Grab Hook.

The Grade 80 eye grab hook conform to US type, features a specially designed shallow throat opening. This allows it to firmly grab a chain link, thereby preventing the chain from slipping.

Commonly used in construction and engineering, material handling, transport and logistics, industrial manufacturing.

To Get A Quote >

Grade 80 Eye Grab Hook US Type for Lifting

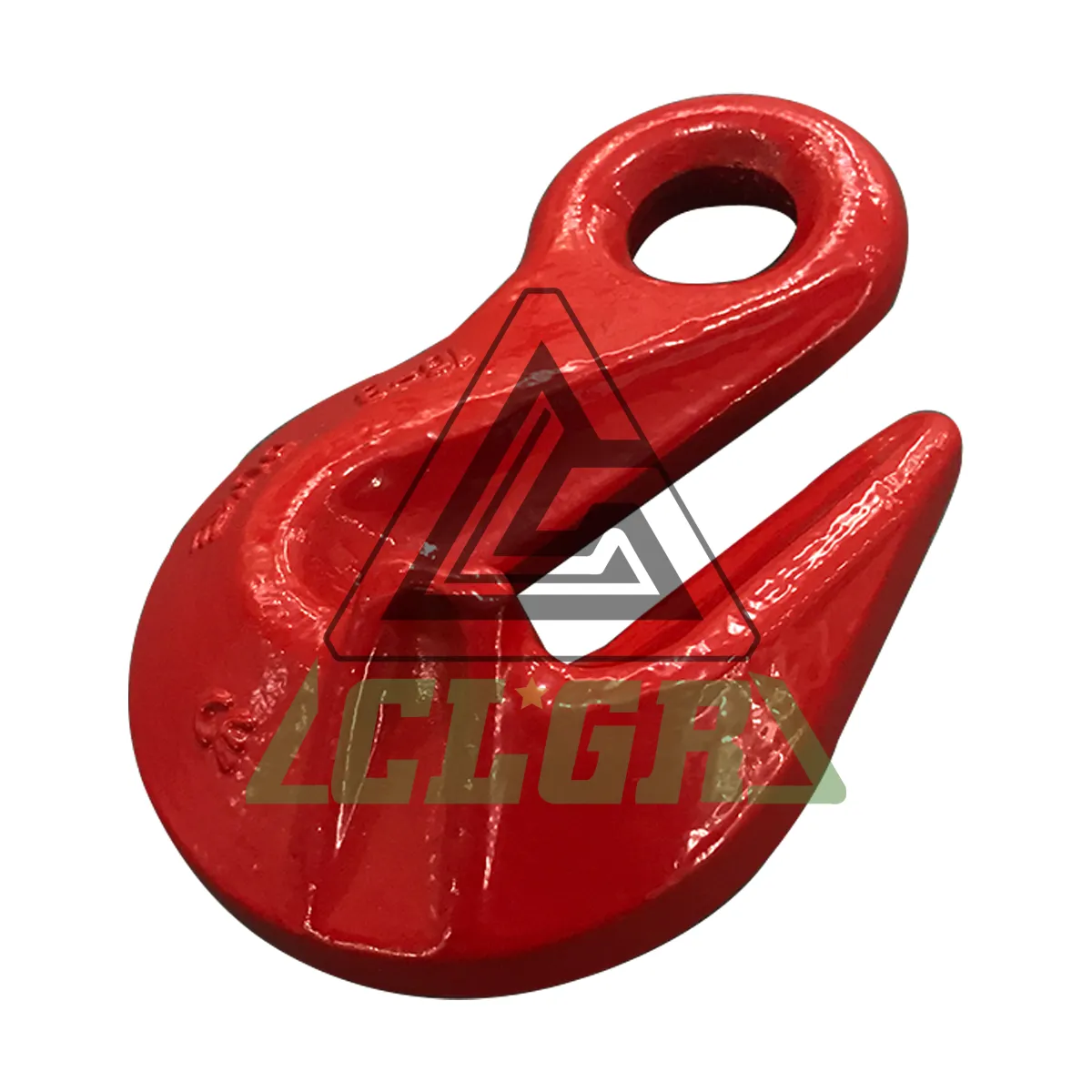

Grade 80 Eye Grab Hook US Type for Lifting China Supplier

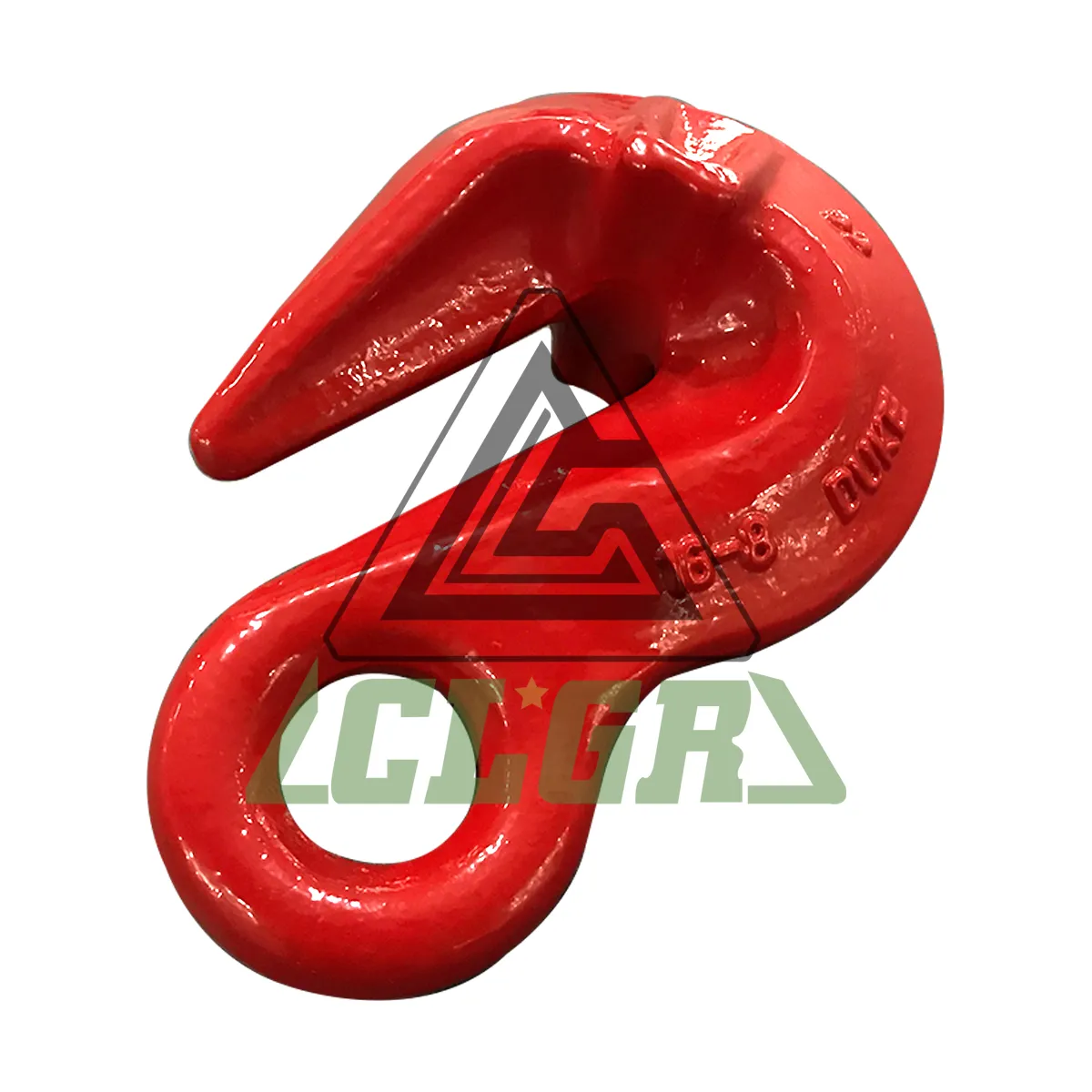

Grade 80 Eye Grab Hook US Type for Lifting China Factory

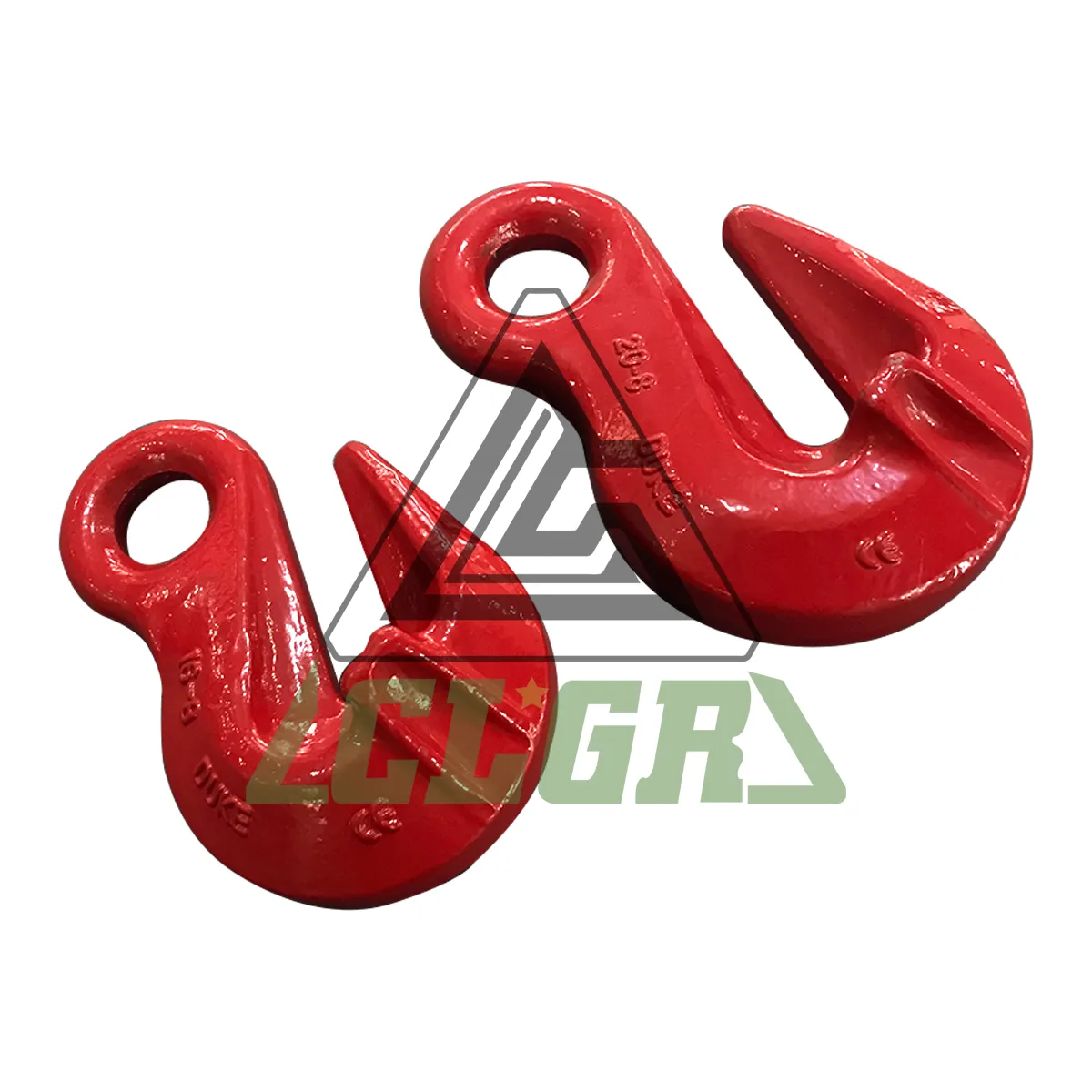

Grade 80 Eye Grab Hook US Type for Lifting China Manufacturer

 

Overview of Grade 80 Eye Grab Hook US Type for Lifting

Brand	CLGR®
Size	1/4'', 9/32'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8''
Standard	Meets or exceeds ASTM A952 / A952M & ASME B30.10 requirements.
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Surface Finish	Powder Coated
Tips	Color Code can be Customized
Note	Never exceed working load limit

Specifications of Grade 80 Eye Grab Hook US Type for Lifting

Part NO.	WEIGHT	Working Load Limit	Breaking Load	E±O.5	D±l	H±l	K±2	L±2
Part NO.	lbs	(T)	(T)	MM
8CREGHUS1/4	0.13	1.2	4.8	8	13	19	54	81
8CREGHUS9/32	0.27	2	8	9.5	15	23	64	98
8CREGHUS3/8	0.55	3.2	12.8	12.5	20	30	82	125
8CREGHUS1/2	1.3	5.4	21.6	17	25	42	106	165
8CREGHUS5/8	2.48	8.2	32.8	20	30	49	127	196.5
8CREGHUS3/4	3.8	12.8	51.2	23	34.5	56	152	231.6
8CREGHUS7/8	5.8	15.5	62	28.6	40.5	65.6	175	267.6
