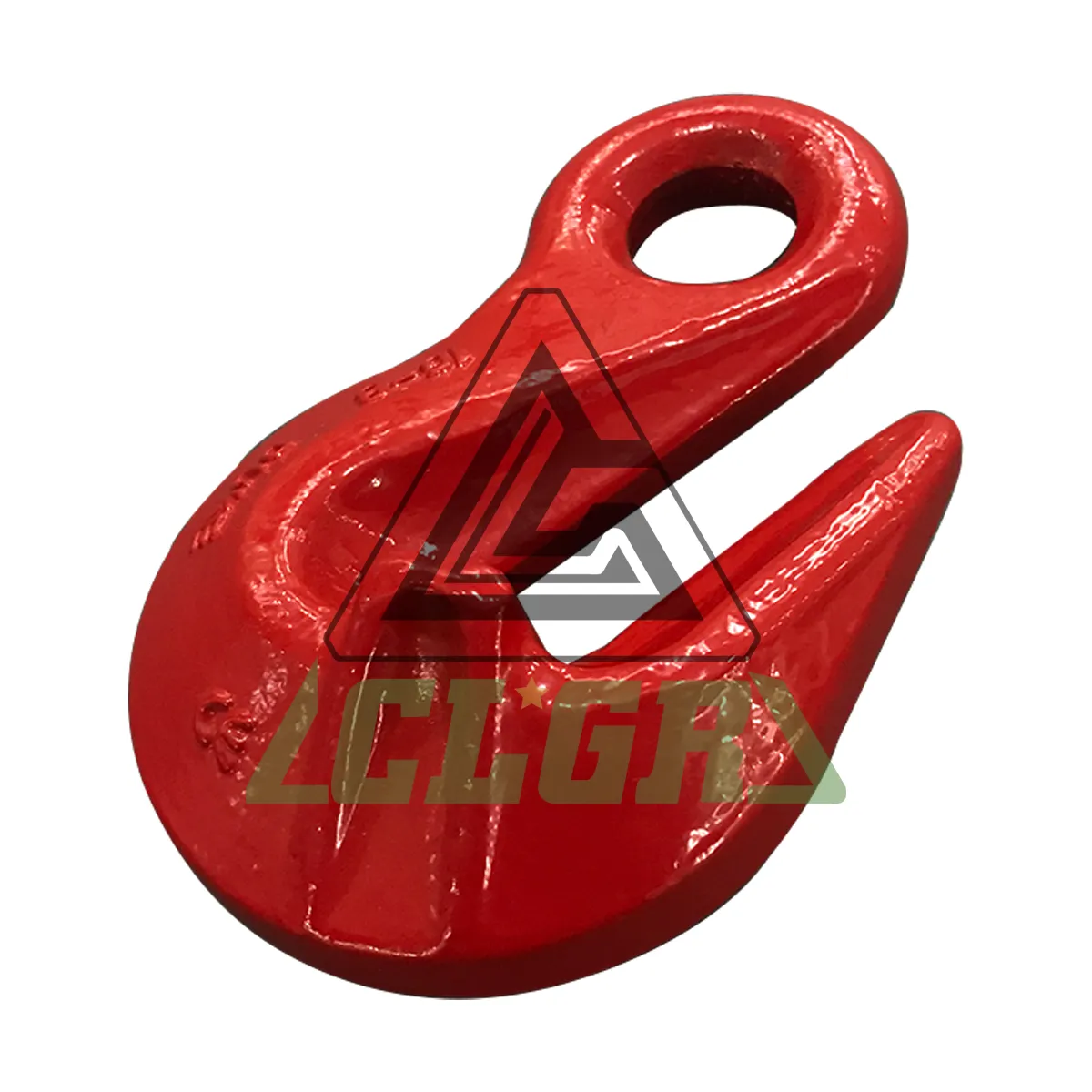

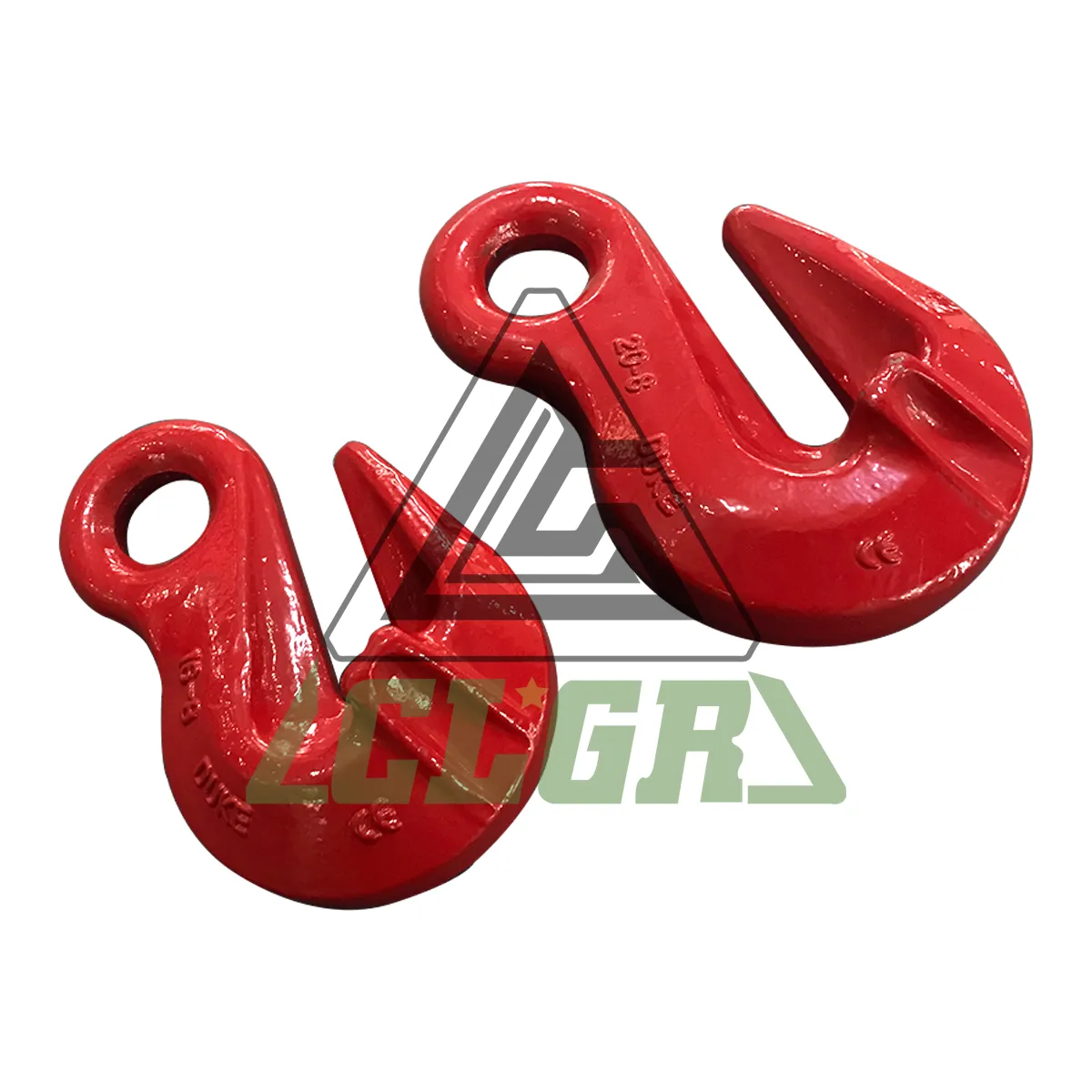

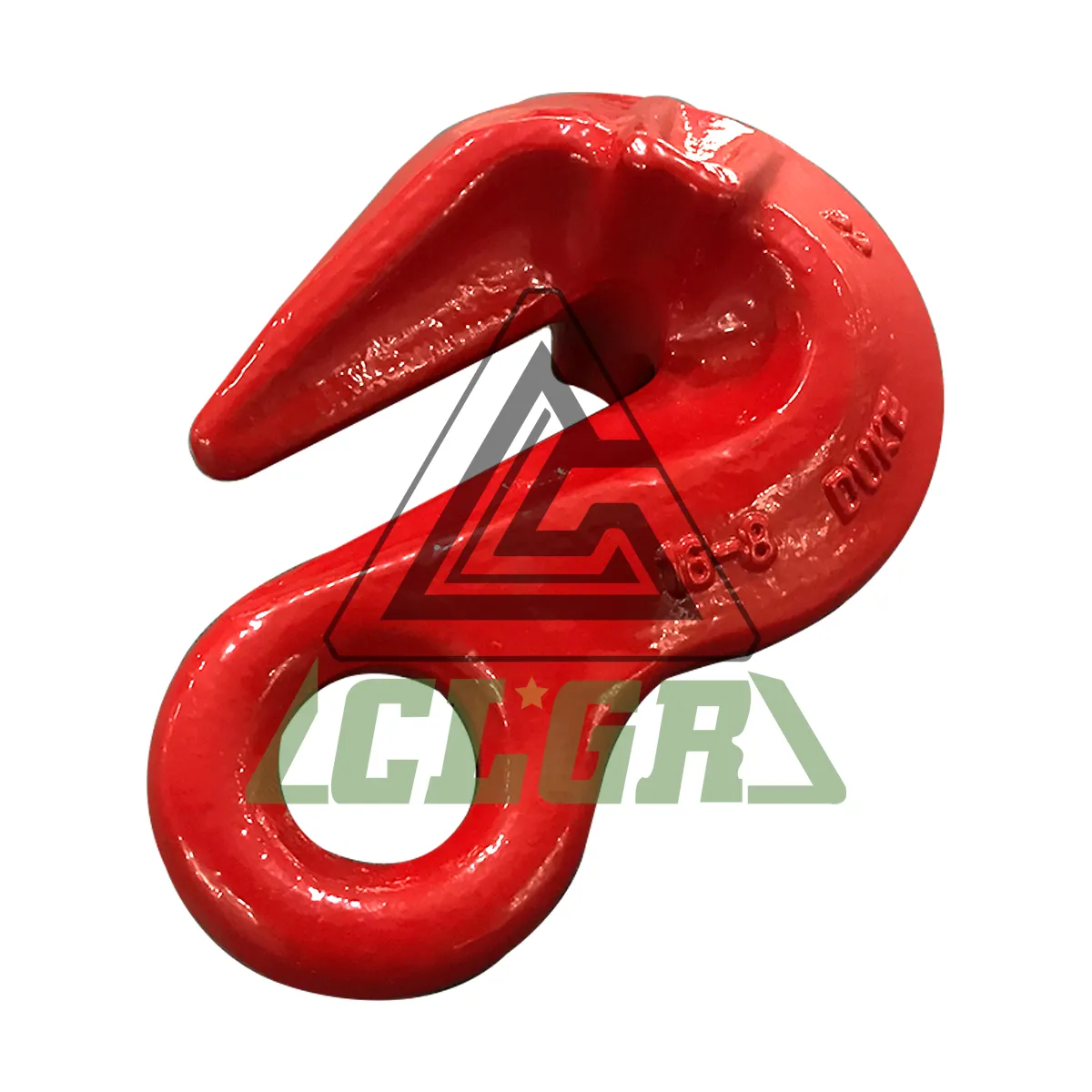

CLGR® Grade 80 Eye Shortening Grab Hook

Name: CLGR® Grade 80 Eye Shortening Grab Hook
Brand: CLGR®

CLGR® G80 Eye Shortening Grab Hook, also known as Eye Shortening Grab Hook grade 80 with Wings and G80 Cradle Eye Grab Hook, is used for shortening chain legs of a sling.

The grab hook, which features support lugs with no reduction to the working load limits, is attached to the master link with the same connection link as the chain. Eye grab hooks, equipped with these support lugs, maintaining full working load limits, are used for lifting heavy loads, most commonly in commercial shipping and haulage industries.

Eye grab hooks are used for lifting heavy loads, most commonly in commercial shipping and haulage industries.

To Get A Quote >

 

Overview of Grade 80 Eye Shortening Grab Hook

Brand	CLGR^®
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm
Note	Never exceed working load limit. Special specifications and marks can be customized

Specifications of Grade 80 Eye Shortening Grab Hook

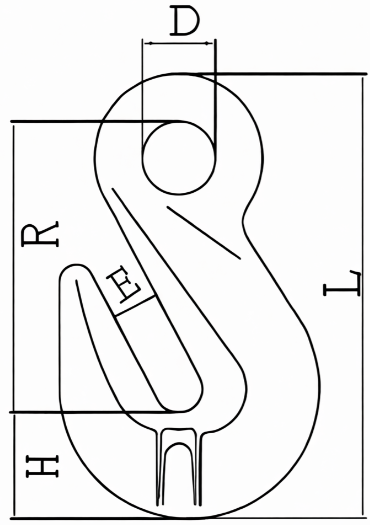

drawing-clgr-grade-80-eye-shortening-grab-hook-china-supplier

Part No.	Weight (kg)	WLL (t)	B.L. (t)	E±0.5 (mm)	D±1 (mm)	H±1 (mm)	R±2 (mm)	L±2 (mm)
8CREGH06	0.14	1.12	4.48	8	13.5	17.9	51.4	75.3
8CREGH7/8	0.245	2	8	10.8	18	20	61.5	91.2
8CREGH10	0.65	3.15	12.6	13	20	29	80	122
8CREGH13	1.39	5.3	21.2	16.5	26	42.8	99.7	158
8CREGH16	2.2	8	32	20	30.5	47.7	104	169
8CREGH20	4.6	12.5	50	25	37.5	56	140	219
8CREGH22	8.2	15	60	28	44	68	165	259
8CREGH26	9.8	21.2	84.8	30	44	77	188.8	298
8CREGH32	19.4	31.5	126	38	57	95	228	361
