CLGR® G80 Alloy Triangle Ring For Web Sling

Name: CLGR® G80 Alloy Triangle Ring For Web Sling
Brand: CLGR®

CLGR® G80 Alloy Triangle Ring For Web Sling, also known as Alloy Triangle Ring For Web Sling, G80 Alloy Welded Triangle Ring for Web Sling, and Double Cross Bar Triangular Link.

Forged from premium alloy steel with a powder-coated finish, the g80 webbing triangle rings have a high breaking load rating due to the extra support from the cross bar in the link.

To Get A Quote >

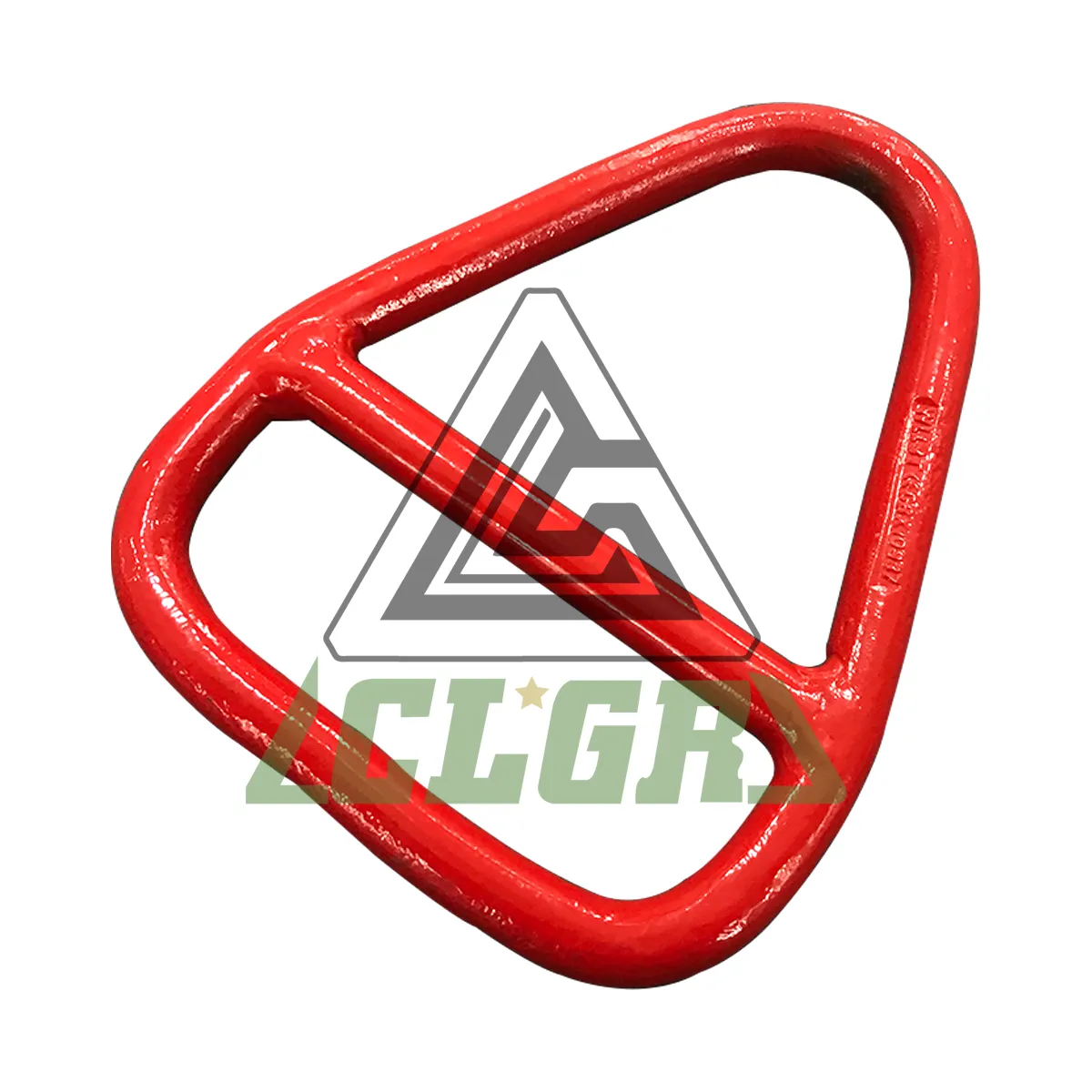

CLGR® G80 Alloy Triangle Ring For Web Sling

CLGR® G80 Alloy Triangle Ring For Web Sling China Manufacturer

Overview of CLGR® G80 Alloy Welded Triangle Ring for Web Sling

Brand	CLGR®
Material	Alloy Steel
Color	Red Or OEM
Surface Finish	Powder Plastified
Size	2T, 3T, 4T, 6T
Application	Heavy Industry, Water Treatment, Food & Bevel

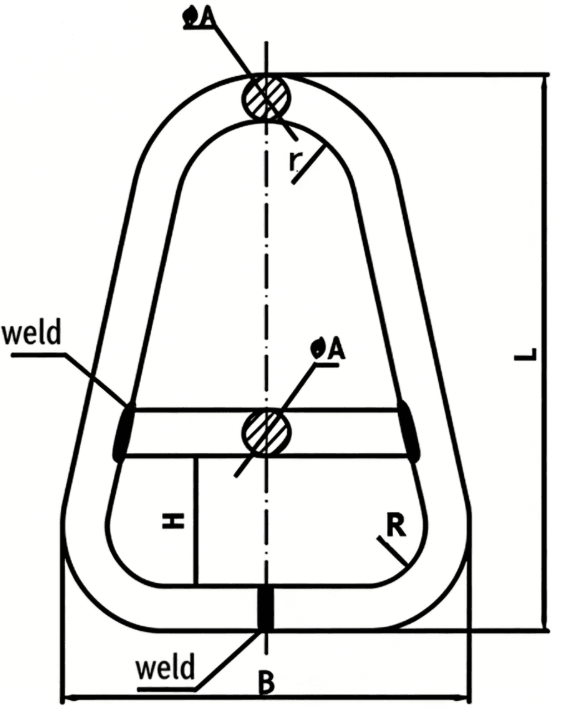

Specifications of CLGR® G80 Alloy Welded Triangle Ring for Web Sling

Part No.	WEIGHT (KG)	WLL (T)	B.L (T)	A	B	H	L	r	R
8-CR137-2T	0.99	2	8	16±0.5	145±5	46±3	195±5	30	20
8-CR137-3T	2.04	3	12	20±1	199±5	57±3	250±6	35	25
8-CR137-4T	2.82	4	16	22±1	243±5	56±3	260±6	40	25
8-CR137-6T	6.3	6	24	28±1	340±6	78±3	340±6	45	30

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
