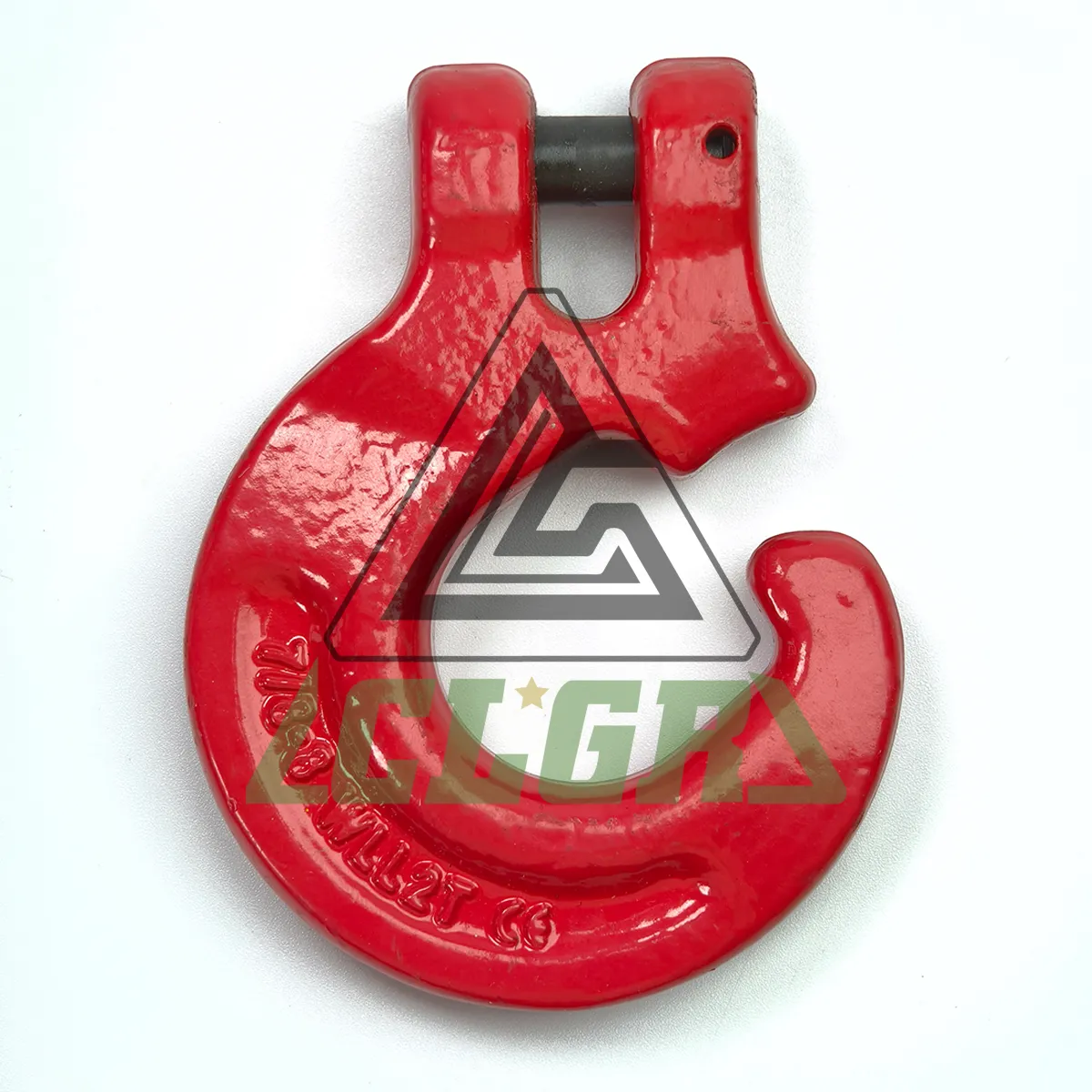

CLGR® Grade 80 Clevis Forest Hook

Name: CLGR® Grade 80 Clevis Forest Hook
Brand: CLGR®

CLGR® Grade 80 Clevis Forest Hook, also known as Forestry Choker Hook, G80 Logging Chain Hooks, Forestry Clevis Hooks.

The Grade 80 Clevis Forest Hook, conforming to EN 1677-4, is forged from alloy steel, which enhances its strength and durability, and is suitable for heavy-duty lifting tasks.

Featuring a clevis-style design with a wider, forest-patterned opening, this hook accommodates thicker chains or straps for enhanced versatility. This type of hook is commonly used in industries such as forestry, construction, and transportation, where heavy loads need to be secured and lifted.

Proof Test: 2.5 times the working load limit (4:1 safety factor)

Fatigue Test: Rated for 20,000 cycles

To Get A Quote >

Overview of CLGR® Grade 80 Clevis Forest Hook

Brand	CLGR®
Standard	Conforms to EN 1677-4
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	6mm, 7/8mm, 10mm, 13mm
Note	Working load limit permanently shown on the body.

Specifications of CLGR® Grade 80 Clevis Forest Hook

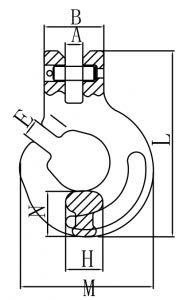

drawing-of-clgr®-grade-80-clevis-forest-hook-china-supplier

Part No.	Size	W.L.L (t)	B.L (t)	Dimension (mm)							Weight (kg/pc)
Part No.	Size	W.L.L (t)	B.L (t)	B±1.2	A±0.5	E±0.5	H±1	M±2	N±0.5	L±2	Weight (kg/pc)
8CRCFH01	6	1.12	4.48	31	8.5	8.5	18	66.5	25	83	0.413
8CRCFH02	7/8	2	8	35	9.5	10.5	18	72.7	22	95.5	0.413
8CRCFH03	10	3.15	12.6	44	13	13	22	97	33.5	137	0.92
8CRCFH04	13	5.3	21.2	53	16	16	30	119	40	165	1.75
