CLGR® Weld-on Bucket Hook

Name: CLGR® Weld-on Bucket Hook
Brand: CLGR®

CLGR® Weld-on Bucket Hook, aslo known as weld on hook, Weld-on hook on plate, Weld-On Excavator Hook, G80 Weld On Anchor Hook.

Made of Alloy steel, forged, quenched and tempered, finished by powder coating for increased years of service, the weld-on hook is used to handle the working load when buckets are tipped forward for overhead lifting.

For installation, this hook can be welded directly without preheating. Ensure the surface is thoroughly cleaned and prepared before executing a continuous, gap-free weld around the entire base plate. Once installed, the integrated latch kit secures the connection to prevent accidental unhooking during operation.

To Get A Quote >

Specifications of CLGR® Weld on Bucket Hook

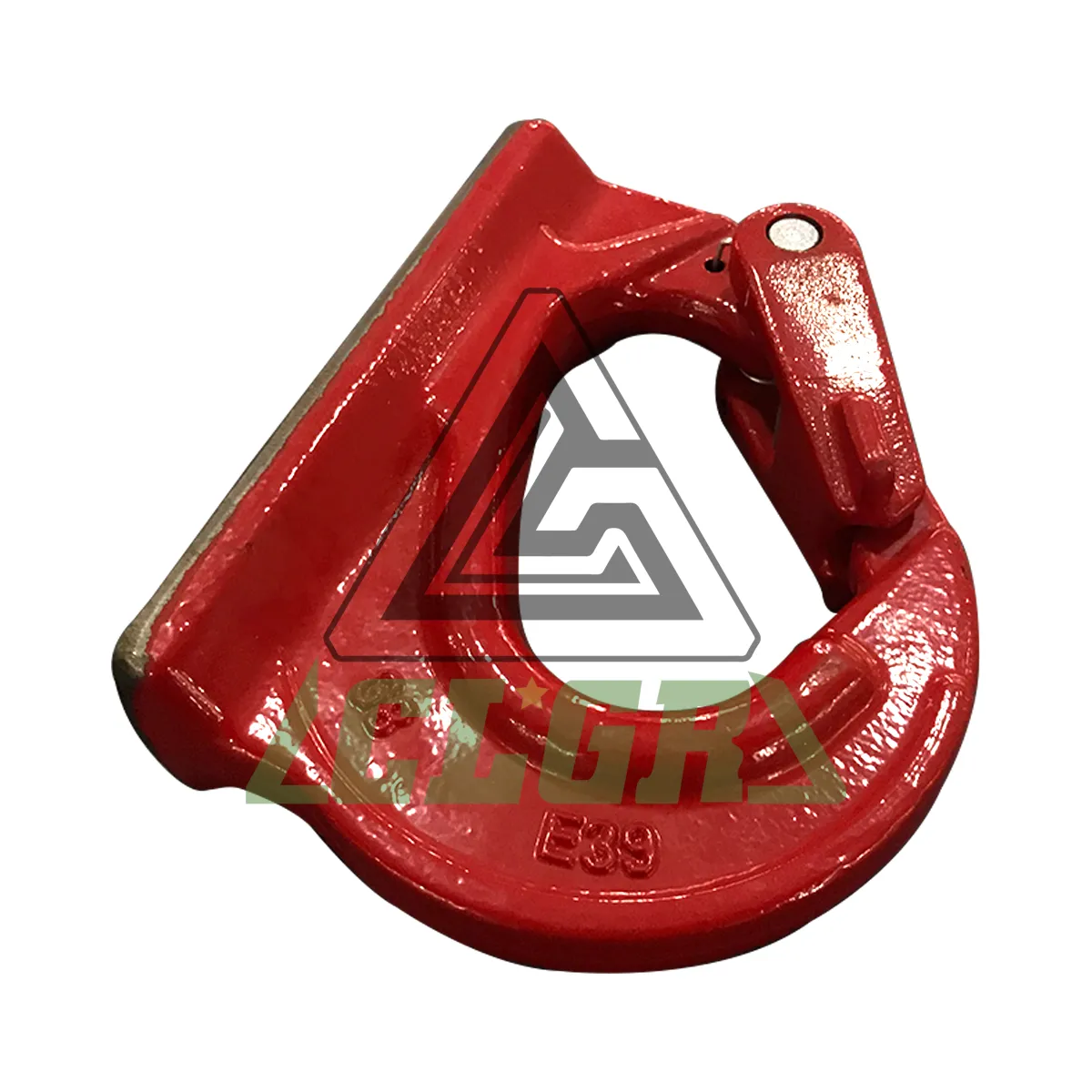

Specifications of CLGR® Weld on Bucket Hook China Supplier

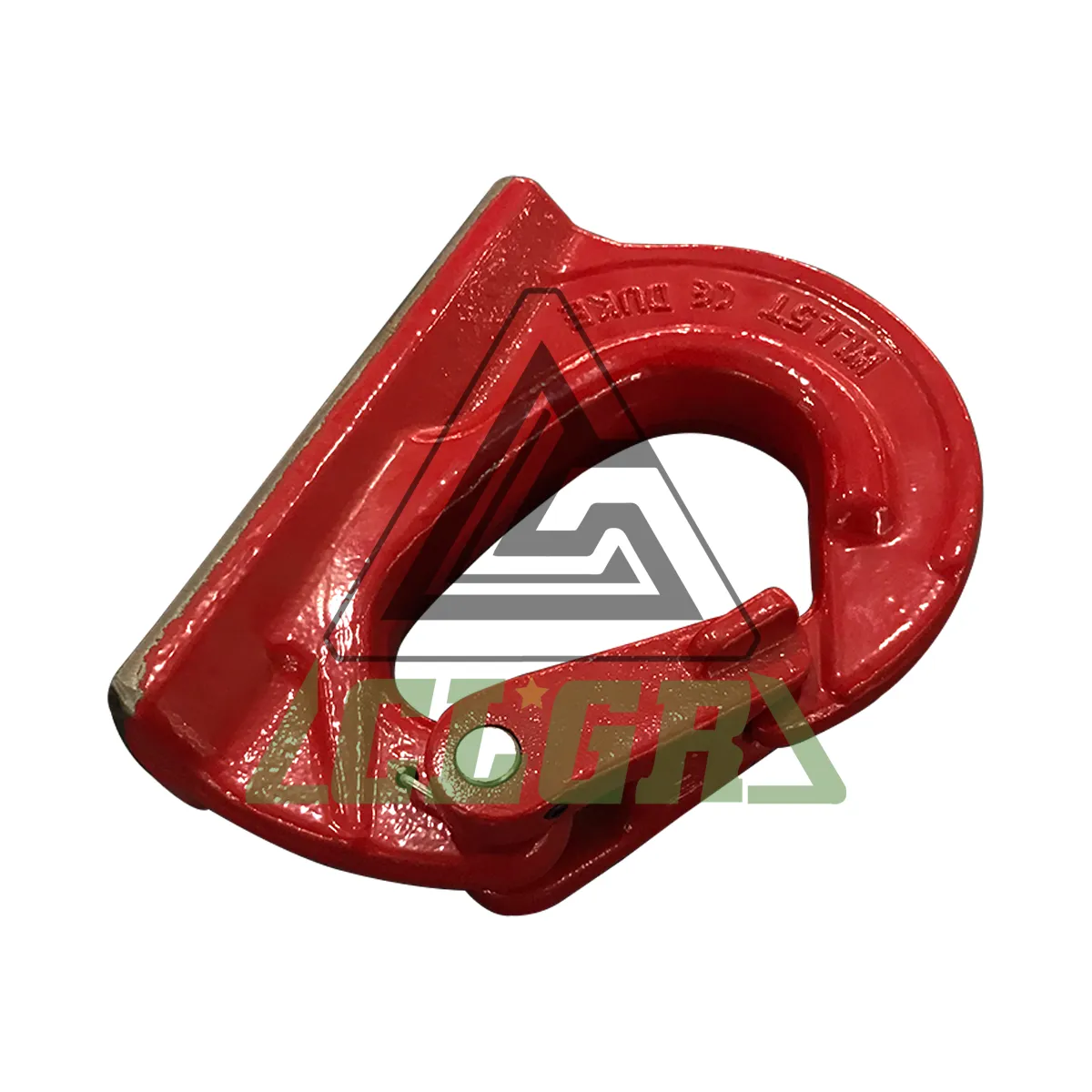

Specifications of CLGR® Weld on Bucket Hook China

Specifications of CLGR® Weld on Bucket Hook China Factory

 

Overview of CLGR® Weld-on Bucket Hook

Brand	CLGR®
Material	Super Alloy Steel
Safety Factor	5: 1
Processing	Drop Forged
Finish	Powder Coated
Size	2T, 3T, 5T, 8T, 10T
Note	Not rated for below the hook lifting

Specifications of CLGR® Weld-on Bucket Hook

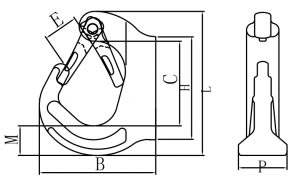

drawing-clgr-of-clgr-weld-on-bucket-hook-china-supplier

Part No.	Weight (KG)	WLL (T)	BL (T)	B±1.5	C±1.2	E±0.5	H±2	M±1	P±1	L±2
8CRWOH2T	0.83	2	10	92	67	30	81	23.3	34	114
8CRWOH3T	1.2	3	15	106	73.5	33.2	116	33.6	36	129
8CRWOH5T	2.46	5	25	133	94	35	159	44	43.5	171
8CRWOH8T	3.26	8	40	136.5	94	33.31	159	44	51	177
8CRWOH10T	5.17	10	50	169.5	134.5	50.54	194	54.7	53	223
