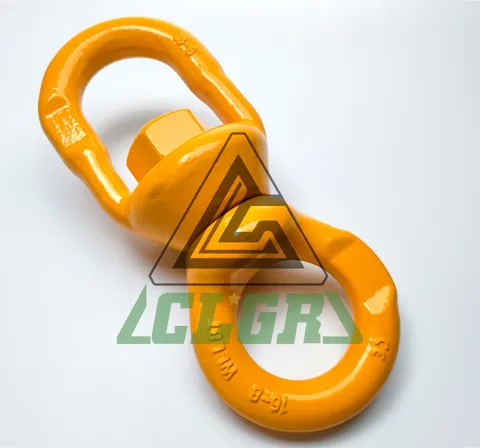

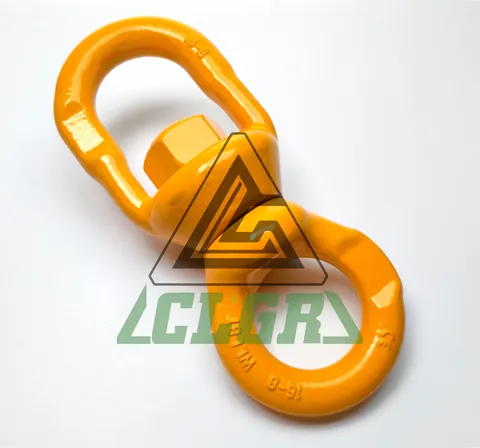

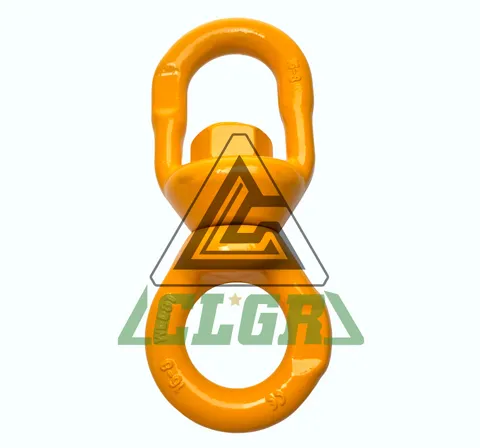

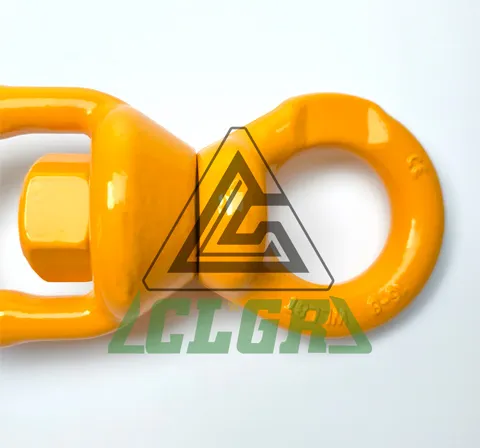

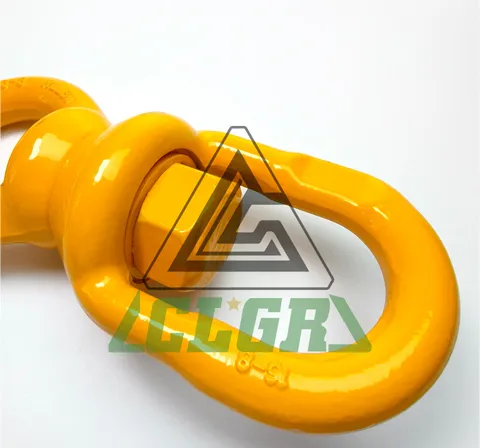

CLGR® Grade 80 Alloy Steel Eye Swivel FO Type for Lifting, also known as G80 Chain Mooring Swivels or Trawling Swivel.
The Grade 80 Forged Eye Swivels are drop forged and rated 4:1. They are usable for lifting, maritime, offshore and commercial fishing.
G80 mooring swivel with pressing flat is designed to be used for OFG HOOK.
G80 Eye Swivels are offered in two material options: regular steel and hot dip galvanized. Each unit undergoes rigorous testing and is supplied with corresponding test certificates to ensure quality compliance.
Brand | CLGR® |
Size | 10mm, 13mm, 16mm, 19mm |
Standard | European Type |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Powder Coated |
Note | Color Code can be Customized |

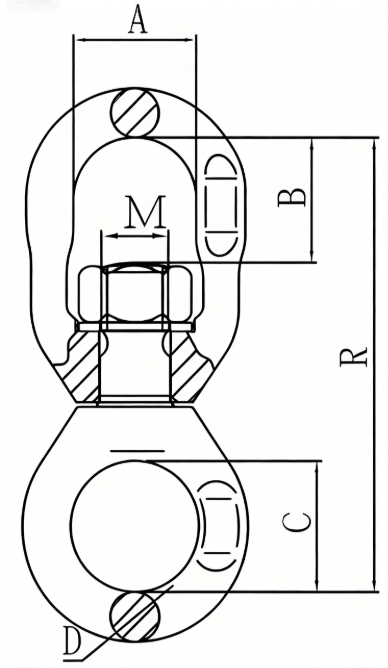

Part No. | Weight (kg) | W.L.L. (T) | B.L. (T) | A±1.2 | B±1.5 | C±1 | D±1 | M | R±2.5 |
D8-CR120-10 | 1.35 | 3.15 | 12.6 | 42 | 40 | 42 | 16 | 22 | 146 |
D8-CR120-13 | 2.02 | 5.3 | 21.2 | 49 | 52.5 | 48 | 19 | 24 | 175 |
D8-CR120-16 | 4.1 | 8.0 | 32 | 60 | 63 | 60 | 23 | 30 | 215 |
D8-CR120-19 | 5.83 | 12.5 | 50 | 71 | 78 | 72 | 27 | 36 | 256 |
