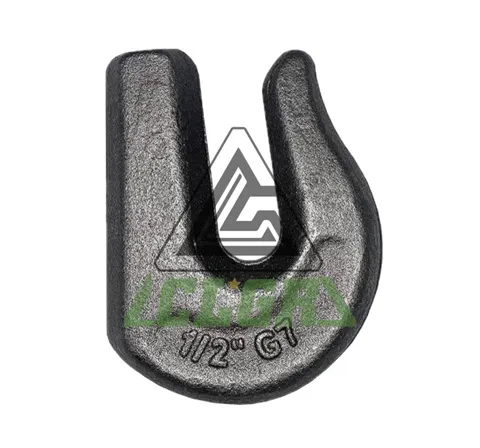

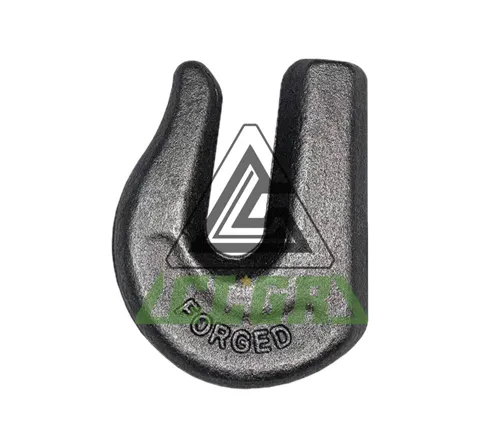

CLGR® Grade 70 Weld-on Grab Hooks

Name: CLGR® Grade 70 Weld-on Grab Hooks
Brand: CLGR®

CLGR® Grade 70 Weld-on Grab Hooks, also known as G70 Drop Forged Weld-On Heavy Duty Towing Hook, Grade 70 Weld Grab Hook.

Because of their Grade 70 strength, these weld-on hooks are suitable for a wide range of rigging applications, offering reliable and durable performance even under heavy loads.

Constructed from forged steel, these forged hooks are built to withstand wear, abrasion, and corrosion, ensuring long-lasting use in demanding environments.

Designed for permanent installation, these grab hooks can be easily welded onto truck beds, trailers, or other equipment, providing a secure and sturdy attachment point.

To Get A Quote >

Overview of CLGR® Grade 70 Weld-on Grab Hooks

Brand	CLGR®
Technical Notes	U.S. Federal Specification
Material	Alloy Steel
Processing	Forged
Finish	Self-color
Size-Wire	5/16”, 3/8”, 5/8”
Note	NOT FOR OVERHEAD LIFTING

Specifications of CLGR® Grade 70 Weld-on Grab Hooks

Part No.	A	B	C	WLL	WT
Part No.	(in)	(in)	(in)	(lbs)	(lbs)
CR-WoGH-5/16	2	0.46	2-1/2	4700	0.45
CR-WoGH-3/8	2-2/5	1/2	3	6600	0.81
CR-WoGH-5/8	4	0.9	3-4/5	15800	2.47

NOT FOR OVERHEAD LIFTING!

NEVER EXCEED CAPACITY.

DO NOT USE FOR LIFTING PEOPLE OR LOADS OVER PEOPLE.

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
