CLGR® Grade 100 Oversized Master Link

Name: CLGR® Grade 100 Oversized Master Link
Brand: CLGR®

CLGR® Grade 100 Oversized Master Link, also known as G100 Enlarged Master Link, G100 Oblong Master Link, Oblong Oversized Master Link with Flat, Grade 100 Oversized Masterlink.

Crafted from quenched and tempered alloy steel, this G100 Master Link is engineered with an oversized design for easy attachment to large crane hooks and optimal sling spacing in multi-leg lifts. It provides a minimum 25% higher Working Load Limit than G80 equivalents, with each unit proof tested at 2.5 times its WLL and a 4:1 design factor to ensure reliable performance with both wire rope and chain.

Engineered for multi-sling compatibility, such as chain, wire rope, synthetic.

To Get A Quote >

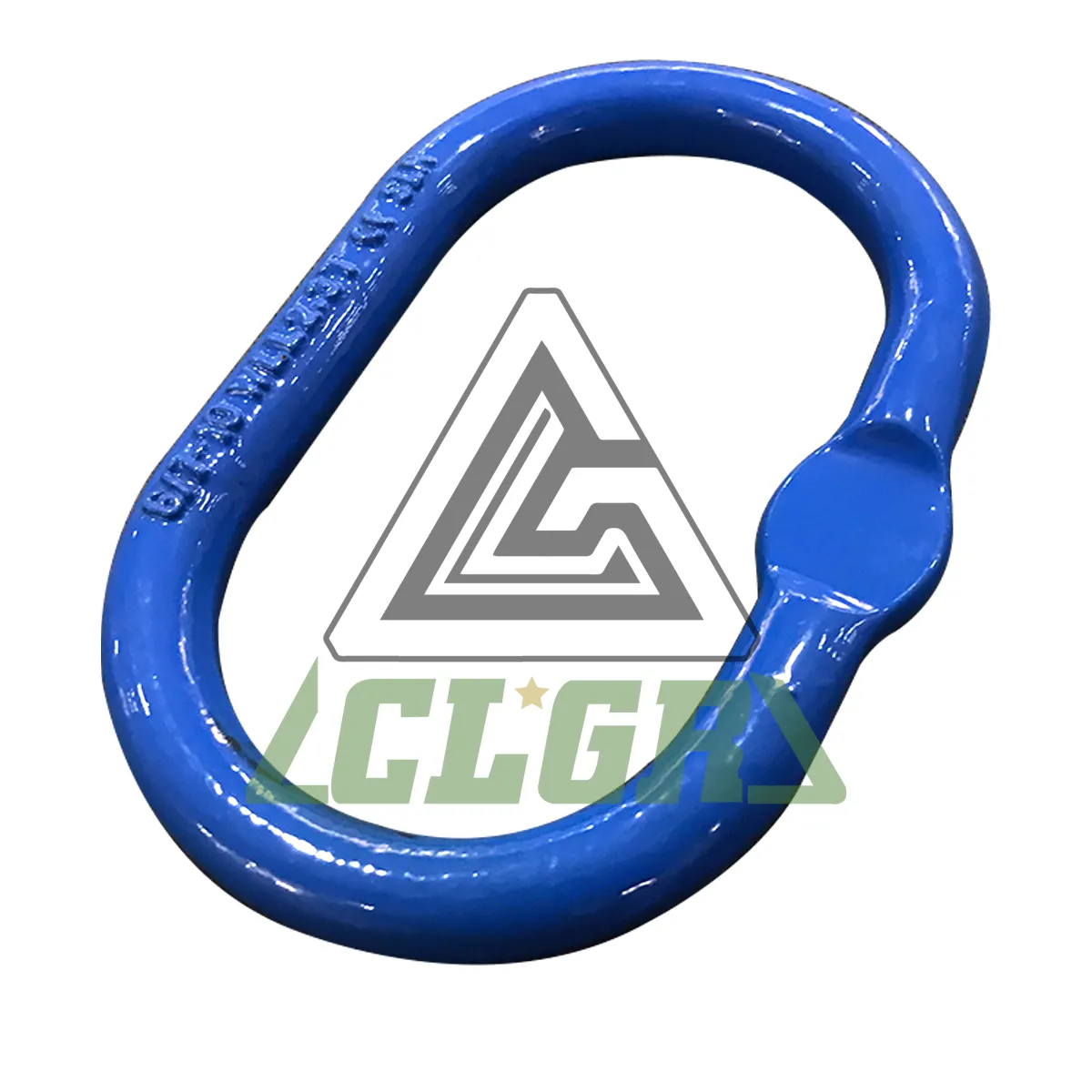

CLGR® Grade 100 Oversized Master Link China

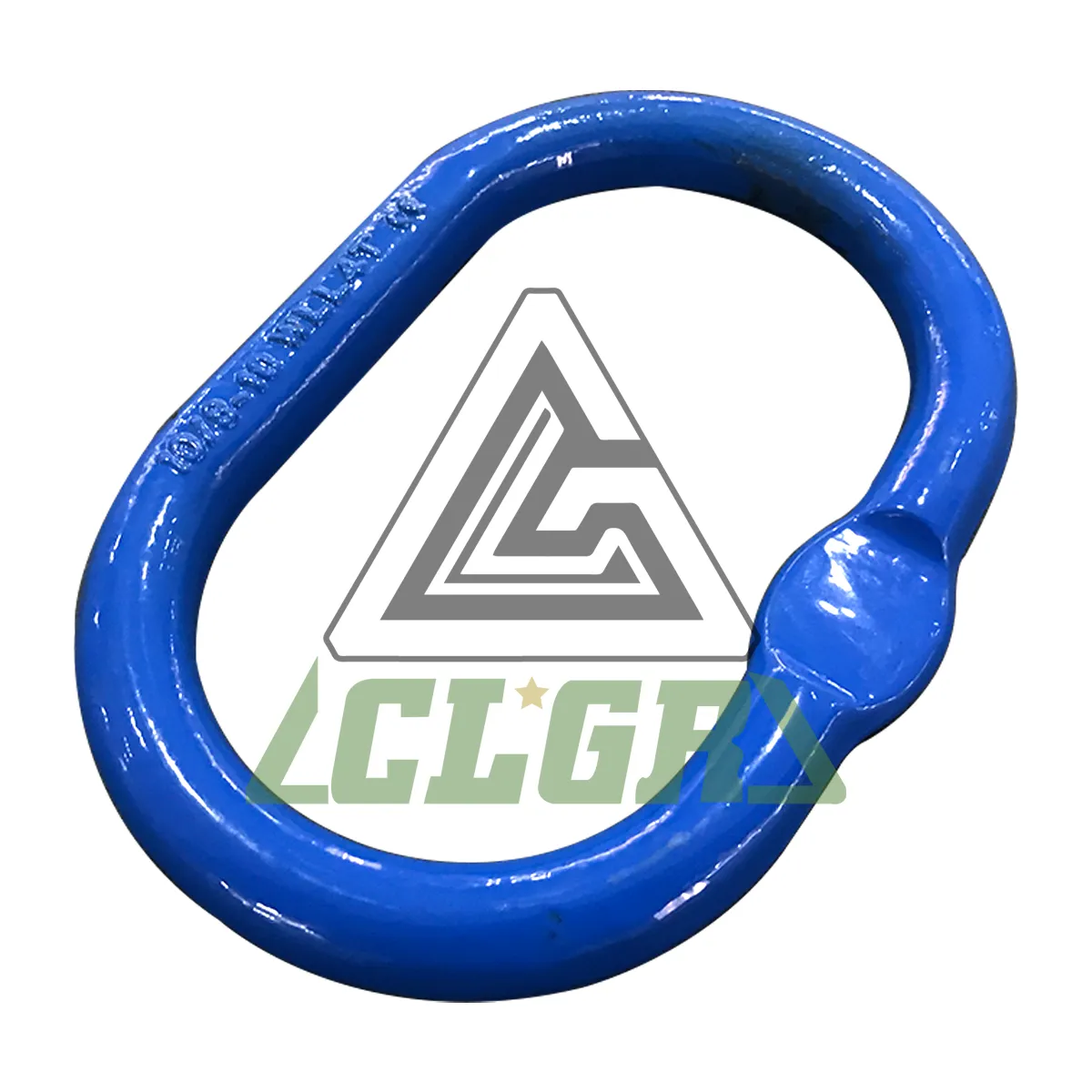

CLGR® Grade 100 Oversized Master Link China Supplier

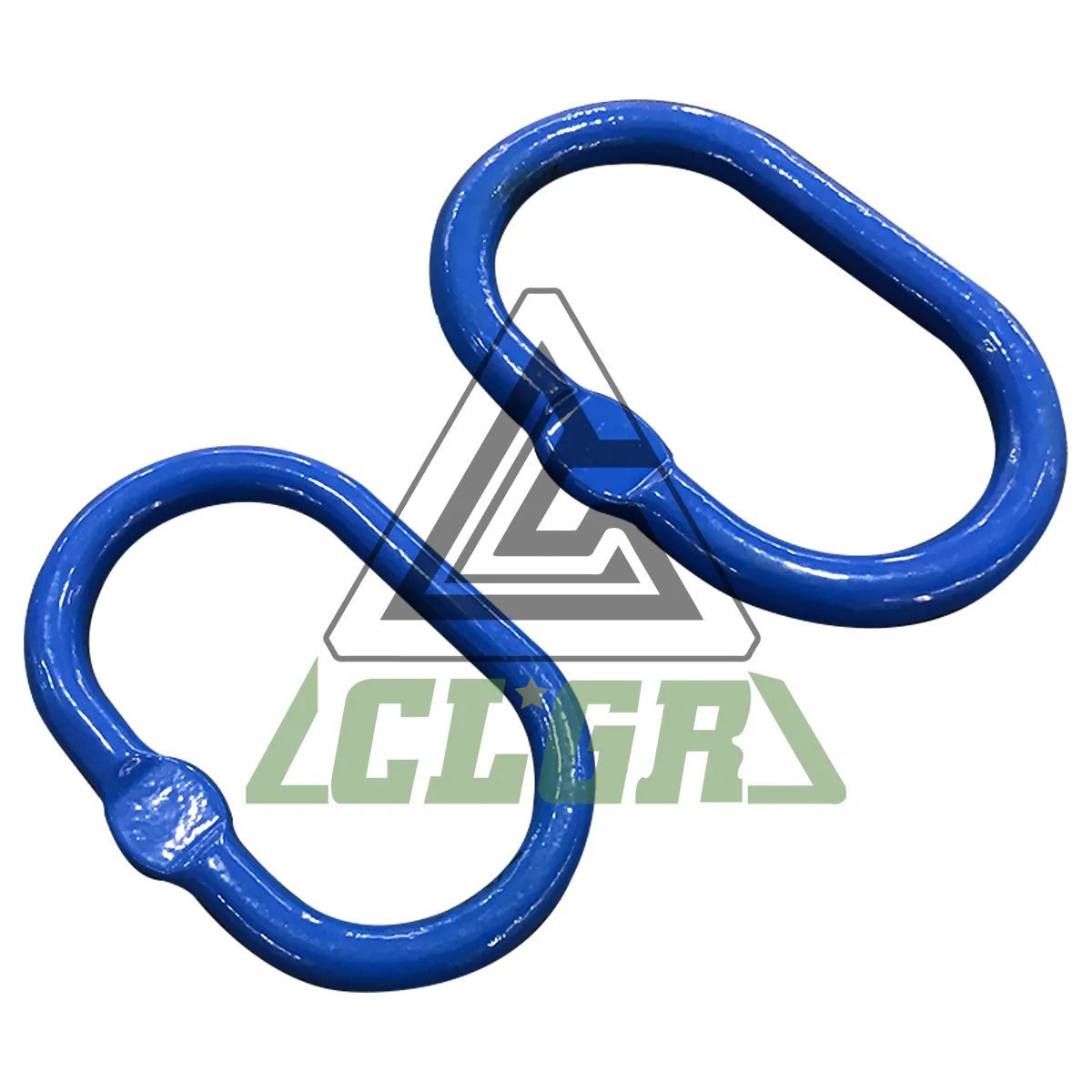

CLGR® Grade 100 Oversized Master Link China Factory

 

Overview of CLGR® Grade 100 Oversized Master Link

Brand	CLGR®
Standard	EN1677
Material	Forged Super Alloy Steel
Safety Factor	Ultimate load is 4 times the Working Load Limit
Processing	Drop Forged + Quenched and Tempered Pressing flat only on request
Finish	Powder Coated
Size	25mm, 28mm, 34mm, 38mm
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Grade 100 Oversized Master Link

drawing-of-clgr®-grade-100-oversized-master-link-china-supplier

Part No.	WEIGHT (KG)	WLL (T)	A	B	D	S×H
10CRMLOS10	3.7	4	340	180	25	13.5+0.5×40
10CRMLOS13	4.7	6.7	340	180	28	15±0.5×48
10CRMLOS16	7.0	10	340	180	34	18±0.5×55
10CRMLOS20	8.9	16	340	180	38	20±0.5×60
