CLGR® G100 Clevis Sling Hook with Safety Latch

Name: CLGR® G100 Clevis Sling Hook with Safety Latch
Brand: CLGR®

CLGR® G100 Clevis Sling Hook with Safety Latch, also known as G100 Lifting Clevis Sling Hook with Latch, G100 Clevis Sling Hook with Catch.

This Grade 100 Clevis Sling Hook with Safety Latch is quenched and tempered to deliver superior strength, offering a working load limit (WLL) at least 25% higher than traditional G80 products.

Manufactured in compliance with EN 1677-2, ASME B30.26, ASME B30.10, and PAS1061 standards, it comes complete with a heavy duty forged latch installed for increased protection from damage and constant replacement. It undergoes rigorous proof load testing at 2.5 times the WLL with batch-specific certification and features a 4:1 safety factor for maximum reliability in demanding industrial lifting applications.

To Get A Quote >

CLGR® G100 Clevis Sling Hook with Safety Latch

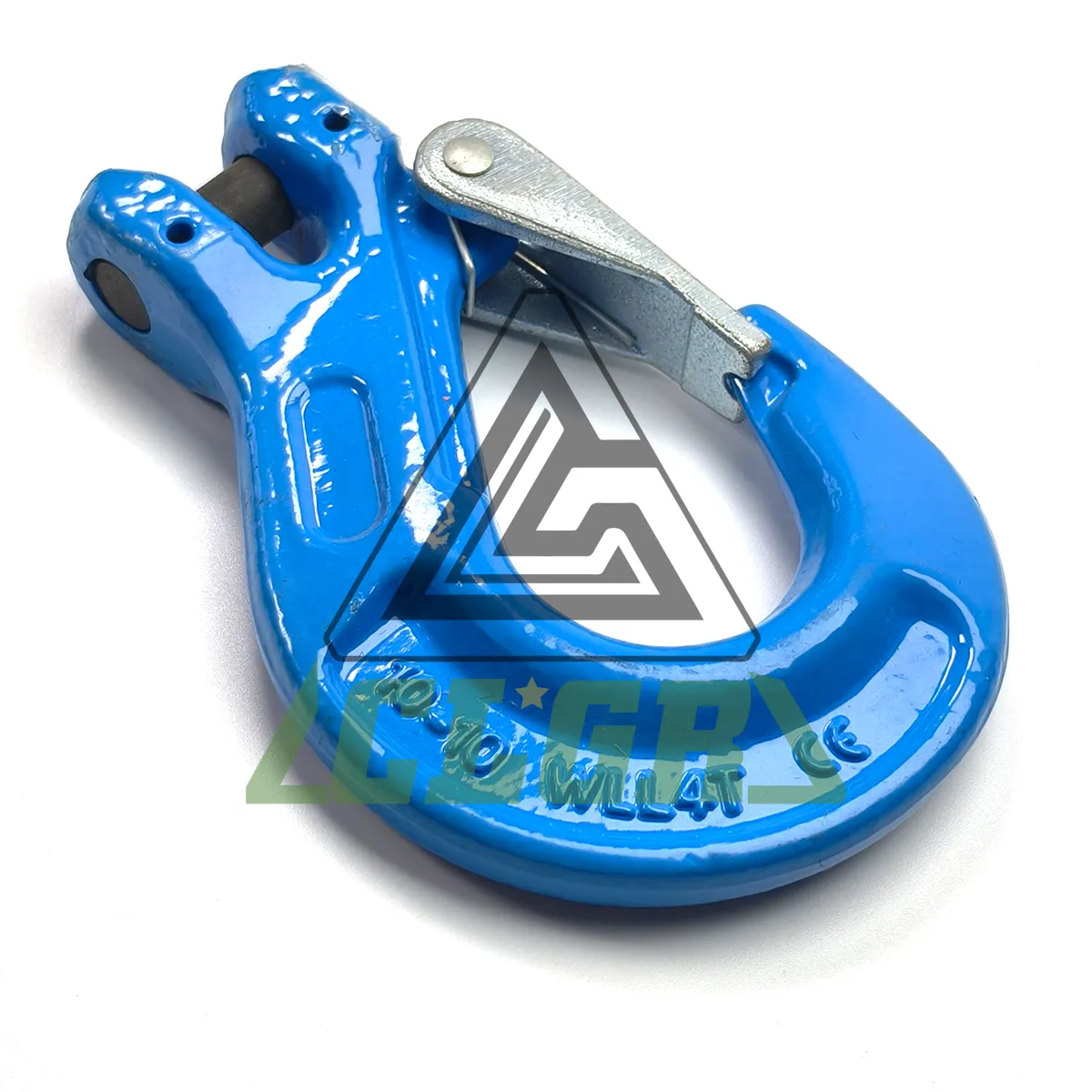

CLGR® G100 Clevis Sling Hook with Safety Latch wholesale

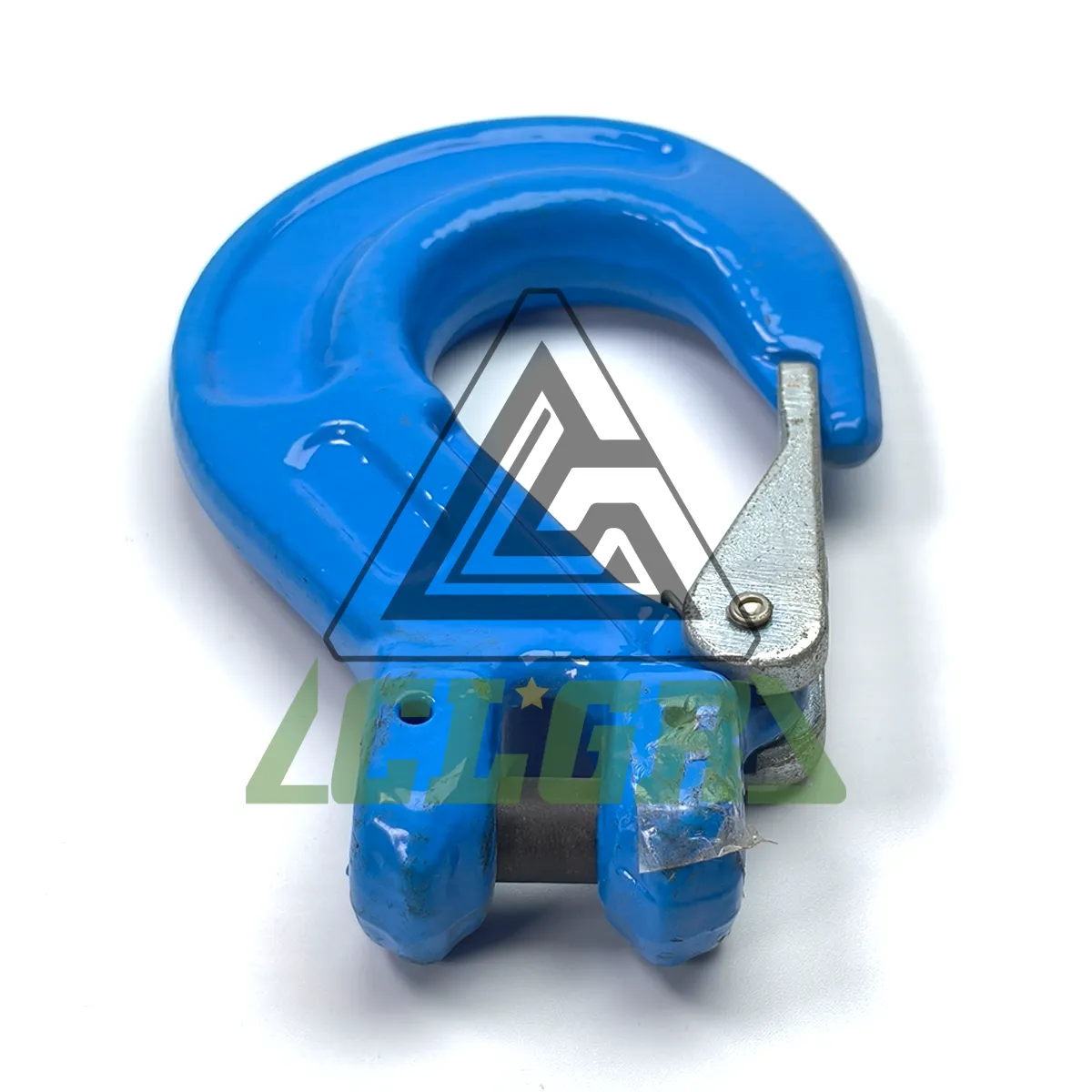

CLGR® G100 Clevis Sling Hook with Safety Latch china manufacturer

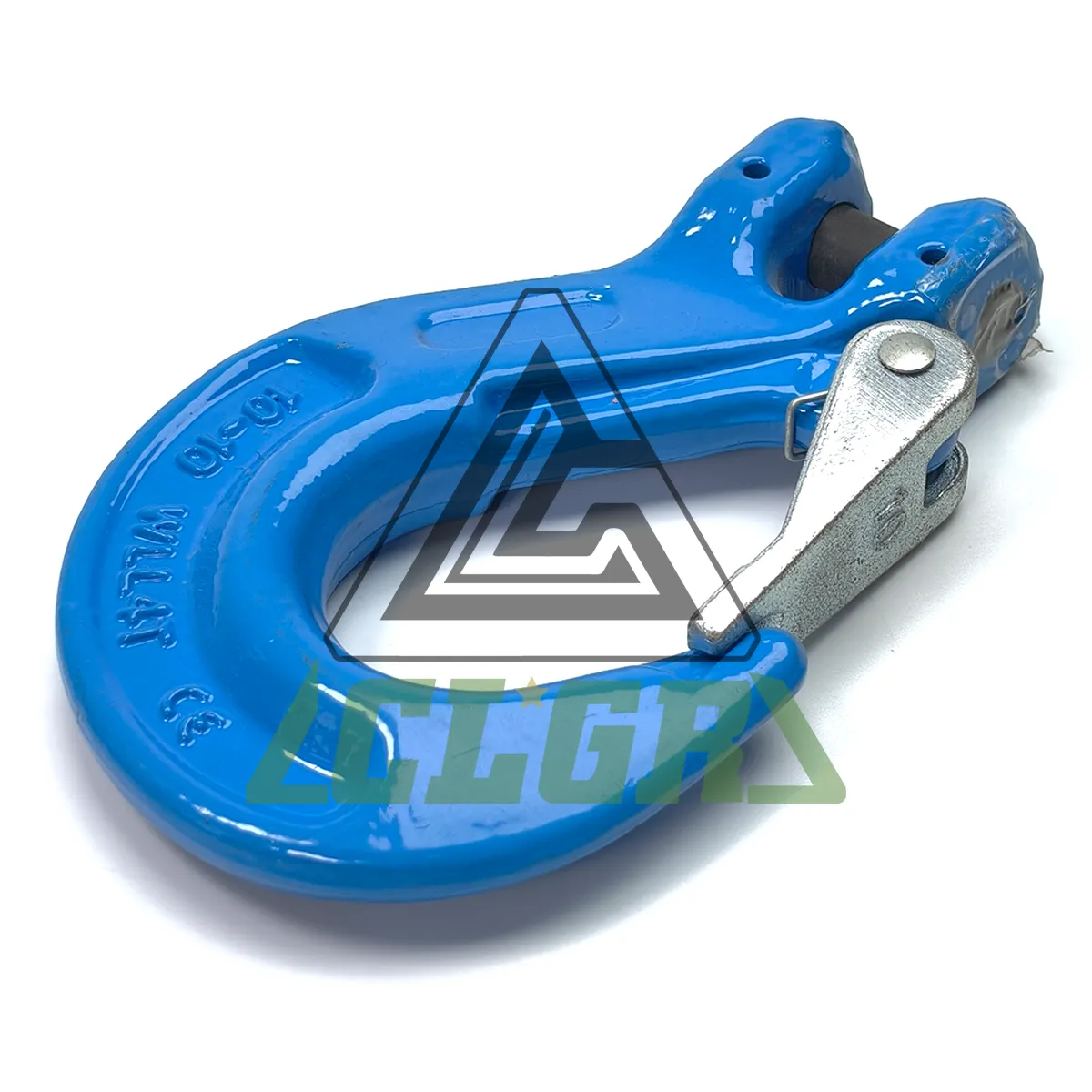

CLGR® G100 Clevis Sling Hook with Safety Latch china supplier

 

Overview of CLGR® G100 Clevis Sling Hook with Safety Latch

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch: Forged / Precision Cast
Finish	Body: Powder Coated Latch: Hot dip galvanized / Galvanized / Dacroment
Size	6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

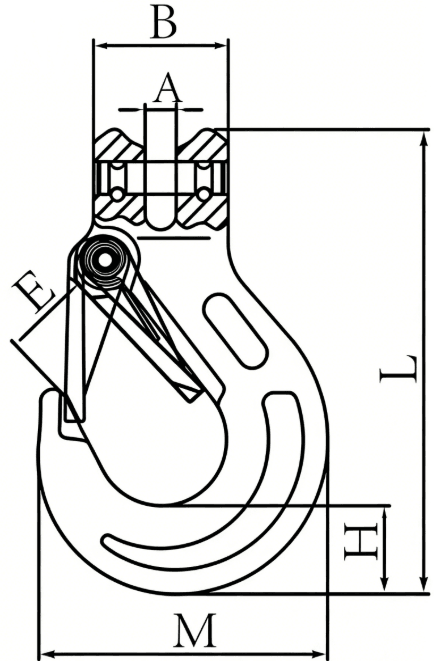

Specifications of CLGR® G100 Clevis Sling Hook with Safety Latch

Part No.	Size (mm)	W.L.L (tons)	A (mm)	B (mm)	E (mm)	H (mm)	M (mm)	L (mm)	N.W. (kgs)
10CRCLHL06	6	1.4	7.5	32	18.5	21	68.5	109	0.33
10CRCLHL08	8	2.5	9.5	37	25	27.5	88	134	0.7
10CRCLHL10	10	4	12	58	28	33.5	105.5	161.5	1.3
10CRCLHL13	13	6.7	15	59	38	42	135	203	2.3
10CRCLHL16	16	10	17.5	70	44	50	160.5	248	3.6
10CRCLHL20	20	16	25	85	52	56	190.5	297	7.3
10CRCLHL22	22	19	27	100	66	62	214.5	326	12.1
